Электрика

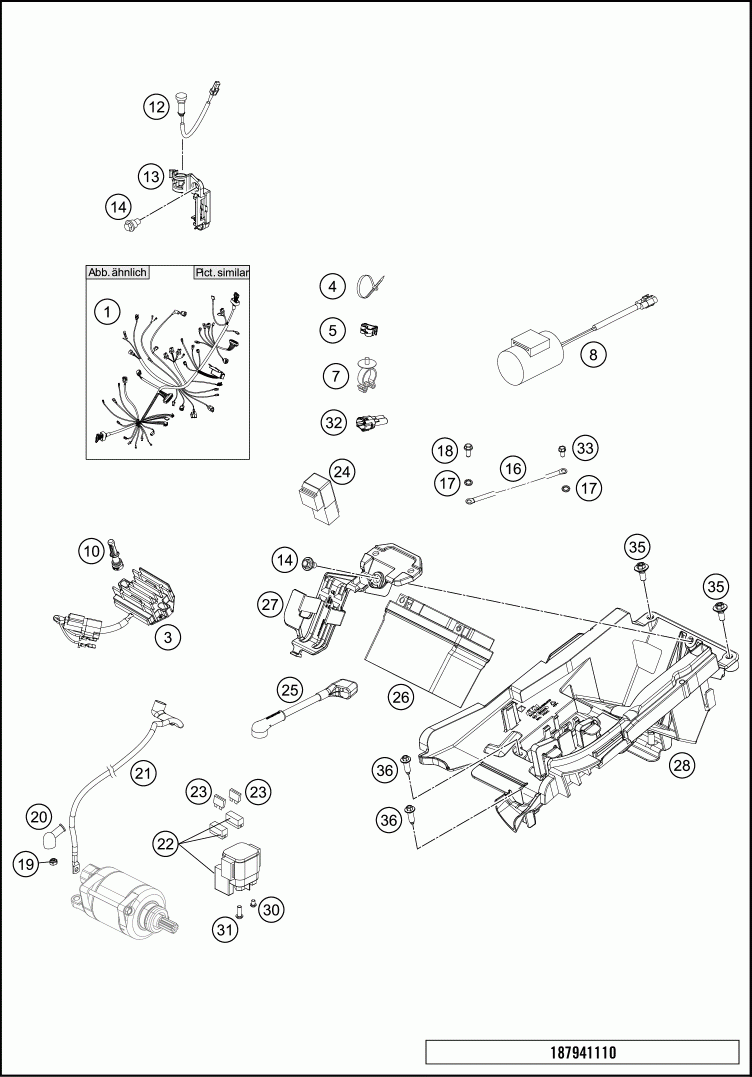

KTM 2018 450 SX-F FACTORY EDITION CHASSIS
KTM
#oem кодцена
1
79111075000
wiring harness EFI SXF
3
77211034000
VOL TAGE REGULA TOR 09
4
44011076140
CABLE TIE 140/2,5MM BLACK
4
44011076200
CABLE TIE 200/3,6MM BLACK
4
44011076305
CABLE TIE 300/4,8MM BLACK
5
83013026000
CABLE GUIDE
7
61111041000
CABLE SUPPORT 07
8
77711035000
CONDENSA TOR
10
55641030000
Holder control unit
12
81214083000
INDICA TOR LIGHT LED YELLOW FI
13
77214098000
HOLDER INDICA TOR LIGHT SX
14
59001092050
SPECIAL SCREW M6X12,5 WS=8
17
58411098100
CONT ACT WASHER M6 VSV-K6
18
0009050106
EJOT SPIRAL SCREW SF M5X10-K
19
0985060003
SELF LOCK. NUT DIN0985-M 6
20
77240099000
PROTECTION CAP F. STARTER ENG.
21
25111059000
Starter cable
23
58011109110
FUSE 10 A 2000
24
61111057000
RELA Y CM1A-R-12 V-H80 07
25
25111059050
Battery cable
26
79111053000
battery 12V/24Wh
27
79111056000
battery support
28
79111055000
Battery box
30
0902060083
AH OVAL SCREW ISO 7380 M 6X8
31
0738060167
Oval head screw AH socket M6x16 A2-70
32
69011040000
END PLUG CAN-BUS 08
33
0025050126
HH collar screw M5x12 TX30
35
83008000015
SPECIAL SCREW M6X15X3
36
0017060206
SCREW F. PLASTIC K60X20AL SW6
