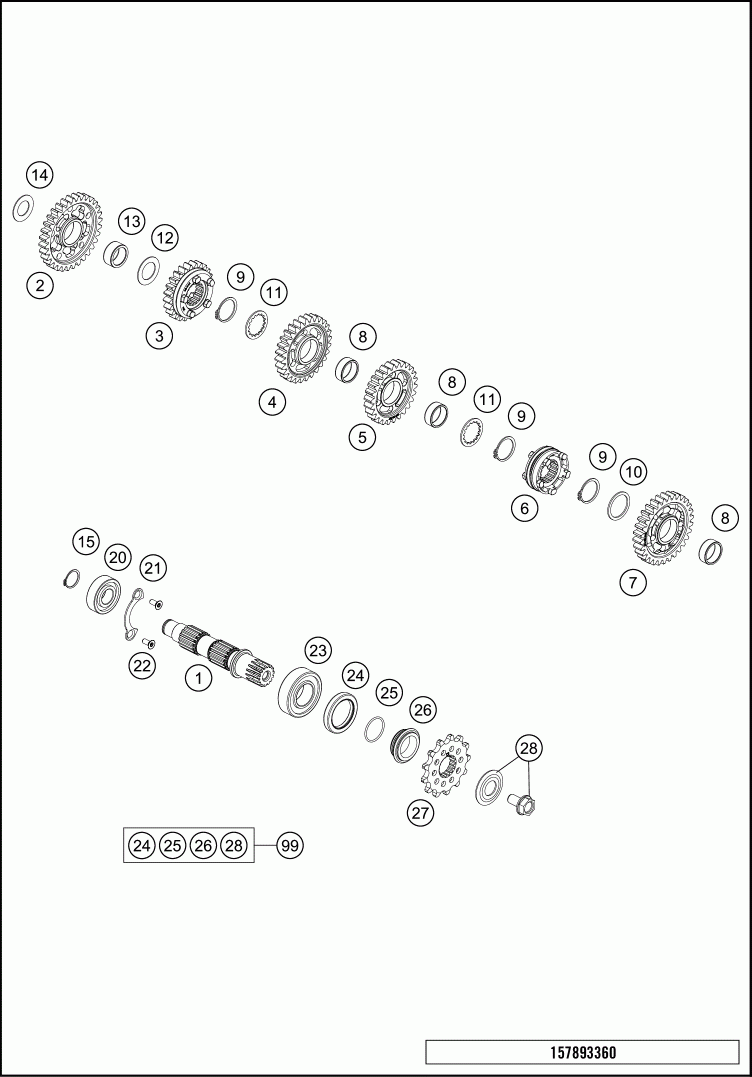

Трансмиссия 2-контрпривод

KTM 2018 FS 450 ENGINE
KTM
#oem кодцена
1
79433010100
Counter shaft
2
79433011100
Idler gear 1st gear
3
79433015200
Sliding gear 5th gear
4
79433013100
Idler gear 3rd gear
5
79433014100
Idler gear 4th gear
6
79433017100
Shift collar
7
79433012100
Idler gear 2nd gear
8
0405222611
NEEDLE BEAR.K 22X26X10 DIVIDED
9
0471250120
CIRCLIP DIN0471-25X1,2
10
78033031000
STOP DISK 26 X 32 X 1,5
11
78033033000
STOP DISK 23 X 32 X 1,5
12
59033080000
SHIM 20X32X1
13
0405202612
NEEDLE BEARING K 20X26X12
14
56033030000
STOP DISC 17,2X30X1
15
0471170015
CIRCLIP DIN 0471-17X1, 5
20
0625062035
BALL BEARING 6203 JR2 C3
21
78033132000
TAB WASHER BEARING COUNT .SHAFT
22
0019050121S
INT . TORX FLAT HEAD M5X12 T25
23
49030023000
cylindrical roller bearing NJ205
24
0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
25
0770020220
O-RING 25,12X1,78 NBR70
26
78133014000
SPACER SLEEVE COUNTER
27
79233029013
SPROCKET 13T
27
79233029014
SPROCKET 14T
28
59033034044
SCREW 10.9+SPRING WASHER
99
00050000941
COUNTER SHAFT REP .KIT 4 STROKE
