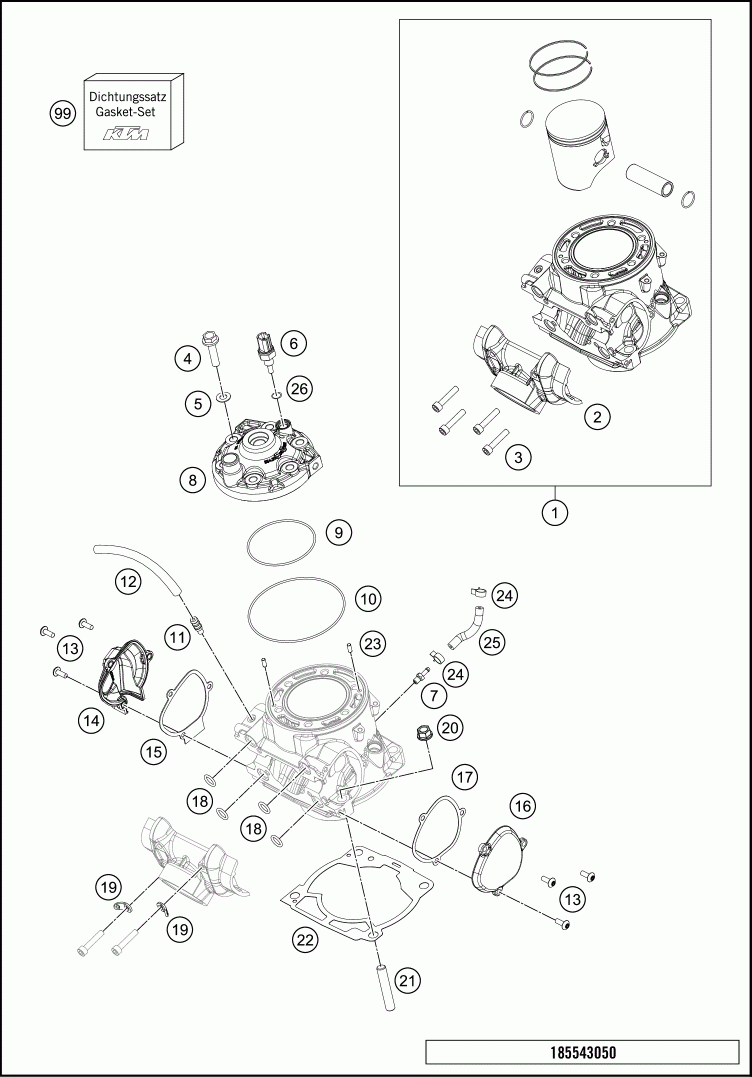

Цилиндр,головка цилиндров

KTM 2018 TE 250i ENGINE
KTM
#oem кодцена
1
55430038100
Cylinder + piston cpl. 18
2
55437001000
Connection Flange
3
0912060353
AH SCREW DIN0912-M 6X35
4
54830079000
COLLAR SCREW M 8X35 WS=13
5
56530080000
CU-SEAL RING 8 X 16 X 1
6
79435047000
water temperature sensor
7
55430023000
Vacuum connection
8
55430106000
ZYLINDERKOPF 250 EXC
9
0770730020
O-RING 73,00X2,00 VITON
10
0770105020
O-RING 105,00X2,00 07
11
58336020090
VACUUM CONNECTION M 6X1
12
78015019000
HOSE EPA D=6/10 PER METER
13
58605083014
SCREW M5X14 TORX 25 07
14
5483700700015
CONTROL COVER R/S 09
15
54837008000
GASKET FOR CONTROL COVER R/S
16
5483700500015
CONTROL COVER L/S 09
17
54837006000
GASKET FOR CONTROL COVER L/S
18
0770116241
O-RING 11,3 X2,4 SILICON
19
51005074000
RET AINING PLATE
20
54630044000
COLLAR NUT M10 WS=13
21
0835100351S
STUD SCREW DIN0835-M10X35
22
55430030025
CYLINDER BASE GASKET
22
55430030020
CYLINDER BASE GASKET
22
55430030040
CYLINDER BASE GASKET
22
55430030050
CYLINDER BASE GASKET
22
55430030075
CYLINDER FOOT GASKET
23
0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
24
59007017000
CLAMP YDNAC 10096F (9,6MM)
25
61041095075
tube 3,2x9.0 L=75mm
26
0770100020
o-ring 10.00x2.00 silicone
99
55430097000
Gasket set piston 250/300
