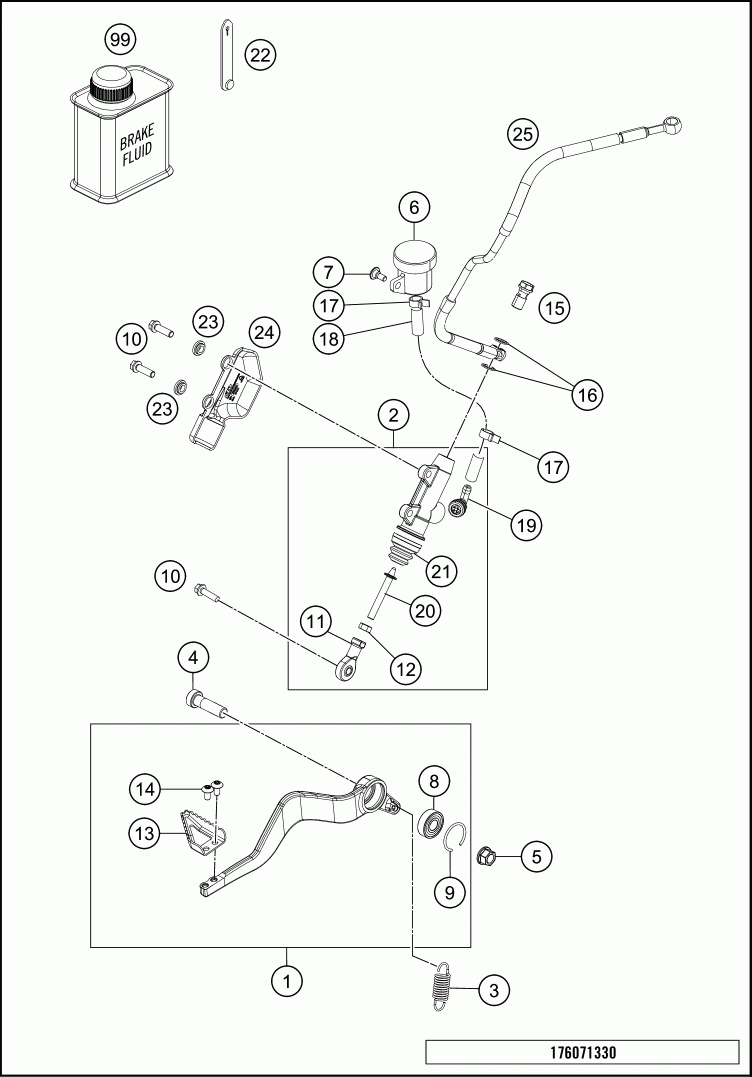

Тормозной цилиндр задний

KTM 2017 1290 SUPER ADVENTURE R CHASSIS
KTM
#oem кодцена
1
6031305004433S
FOOT BRAKE LEVER KPL.
2
6031306000030
REAR BRAKE CONTROL
3
54603062100
RETURN SPRING FOR BRAKE LEVER
4
0032100356S
AH-COLLAR SCREW M10X35 ISA45
5
54630044000
COLLAR NUT M10 WS=13
7
69013099050
SCREW F. EXPANSION TANK
8
0625060002
BALL BEARING SKF 6000-2RS1
9
0993026500
LOCK RING DIN7993-B26
10
0025060206
HH COLLAR SCREW M6X20 TX30
11
54603069000
SWIVEL HEAD M6 FOOT BRAKE LEV.
12
0934060003
HEXAGON NUT DIN0934-M 6
13
60313051000
STEP PLATE FOOT BRAKE LEVER
14
78105081010
SCREW TORX M5X10
15
62113020100
HOLL. SCREW M10X1X19.5
16
0603100141
COPPER GASKET DIN7603-10X14X1
17
58007017000
YDNAC CLAMP 10101 (10,4MM)
18
69013069001
HOSE FOR RESERVOIR 6X1,5
19
54513155000
ANGLE PIECE
20
60313056044
PUSH ROD CPL.
21
54513151000
RUBBER SLEEVE
22
60011093045
RUBBER CABLE TIE 45MM 03
23
50213161000
COLLAR BUSHING
25
60342001000
BRAKE HOSE REAR BRAKE CONTROL
99
00062030000
BRAKE FLUID DOT5.1 0,25L
