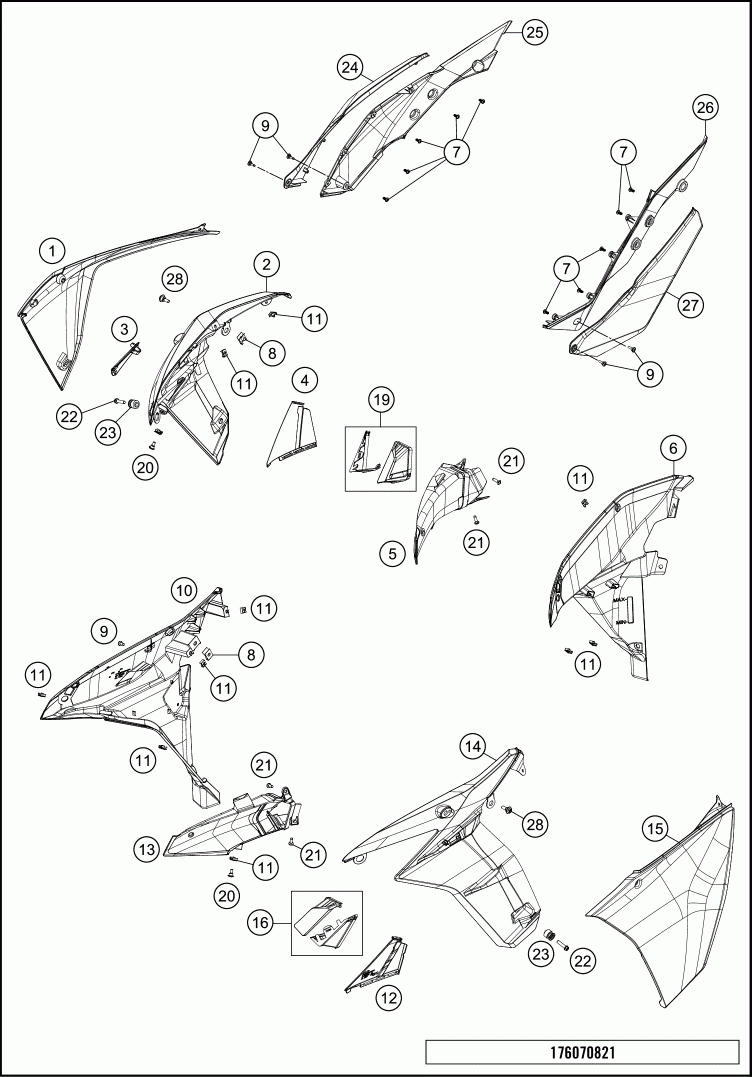

Side trim

KTM 2017 1290 SUPER ADVENTURE R CHASSIS
KTM
#oem кодцена
1
60708051000AB
Spoiler right white
2
6070810300033
Fairing right
3
6070810201033
Maintenance cover
4
60708103060
Cover for right intake port
5
6070810305033
Air intake right
6
60708126000
Inner cover right
7
0081045121
SCREW FOR PLASTIC K45X12 T20
8
54603048100
RANGE CHANGE METAL NUT M6
9
69008021160
SPECIAL SCREW M5X12
10
60708125000
Inner cover left
11
69008021080
RANGE CHANGE METAL NUT M5
12
60708102060
Cover for left intake port
13
6070810205033
Air intake left
14
6070810200033
Fairing left
15
60708050000AB
Spoiler left white
16
6070604403333
Cover intake duct le. cpl.
19
6070604503333
Cover intake duct right cpl.
20
69007025014
Special screw M5X14 ISA30
21
0081050161
EJOT PT SCREW K50X16 1451
22
0025060256
HH COLLAR SCREW M6X25 TX30
23
60708050010
Втулка
24
60308042000AB
Tail spoiler right white
25
6070804400033
REAR SIDE COVER RIGHT BLACK
26
6070804300033
REAR SIDE COVER LEFT BLACK
27
60308041000AB
Tail spoiler left white
28
83008100020
SCREW M6X20X5,5
