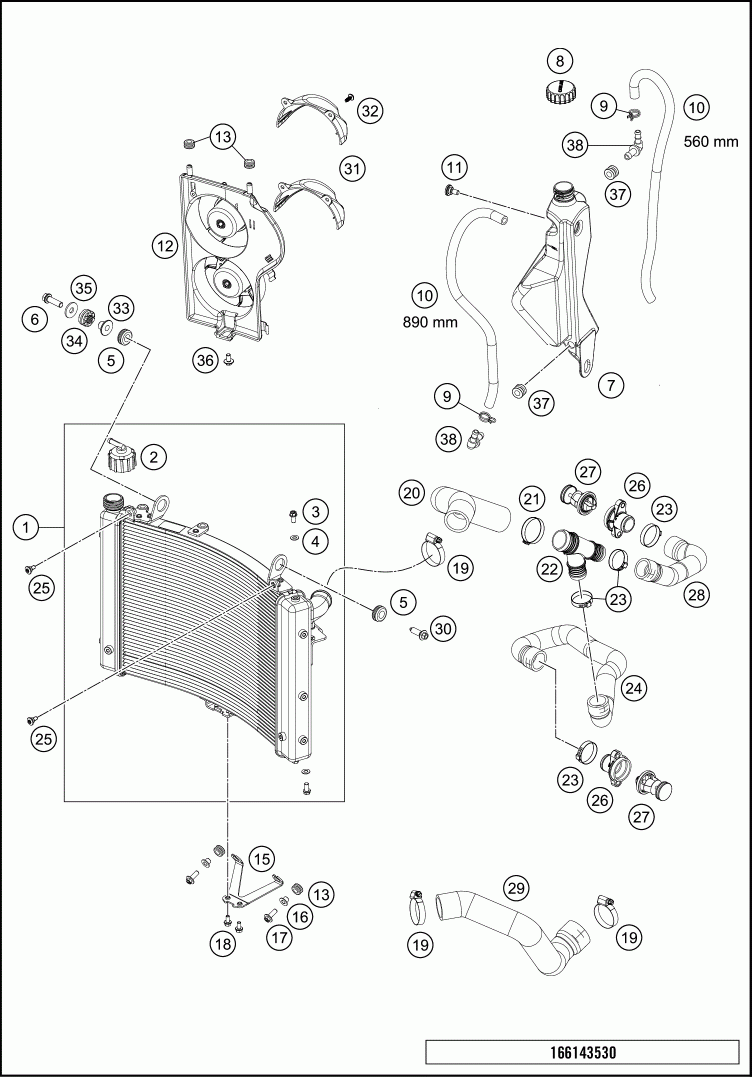

Система охлаждения

KTM 2017 1290 SUPER DUKE GT ORANGE ENGINE
KTM
#oem кодцена
1
61435010000
RADIA TOR
2
62535009000
RADIA TOR CAP 1,4 BAR
3
0025060126
HH COLLAR SCREW M6X12 TX30
4
60035048000
ALU-GASKET 6X10X1.5
5
41001052000
RUBBER SLEEVE D=12MM
6
0025060206
HH COLLAR SCREW M6X20 TX30
7
61435065001
WATER EXPANSION TANK
8
60335066044
Latch, compens. tank cpl.
9
58007117000
YDNAC-CLAMP 10107 10MM
10
60035067001
HOSE 6X10 EPDM 03
11
0081250141
SCREW FOR PLASTIC PT K50X14T25
12
60335044033
FAN COVER CPL.
13
31008060000
RUBBER SLEEVE D=8MM OPEN
15
60335005000
MOUNTING PLATE COOLER BOTTOM
16
75014010050
COLLAR BUSHING 6,1X8,1X14X8 07
17
0024060206
HH COLLAR SCREW M6X20 TX30
18
0025050106
COLLAR SCREW M5X10 ISA30
19
54305058000
HOSE CLAMP 30-45 SGT
20
60335026000
PREFORMED HOSE
21
00050396706
VARI ABLE ONE-EAR CLAMP 39,6MM
22
60335093000
Y-JOINT
23
00050331706
VARI ABLE ONE-EAR CLAMP 33,1MM
24
60335025000
PREFORMED HOSE
25
69008021160
SPECIAL SCREW M5X12
26
61235019100
WATER CONNECTION CPL.
27
61235017000
THERMOST AT 70 DEGREE
28
60335024000
PREFORMED HOSE
29
60335027000
PREFORMED HOSE
30
0024060123
COLLAR SCREW M6X12 TX
31
61335049000
AIRDEFLECTOR
32
0081050141
EJOT PT SCREW 50X14 WN 1451
33
61342041000
COLLAR BUSH 6,5X9X18X8,5
34
62142041000
DAMP . COMPONENT ABS MODUL
35
0021060003
WASHER DIN9021-A 6,4
36
83008000012
SPECIAL SCREW M6X12X3
37
60035069000
RUBBER GROMMET 6X9X13MM 04
38
60035068000
ANGLE CONNECT ION EXPANS. TANK
