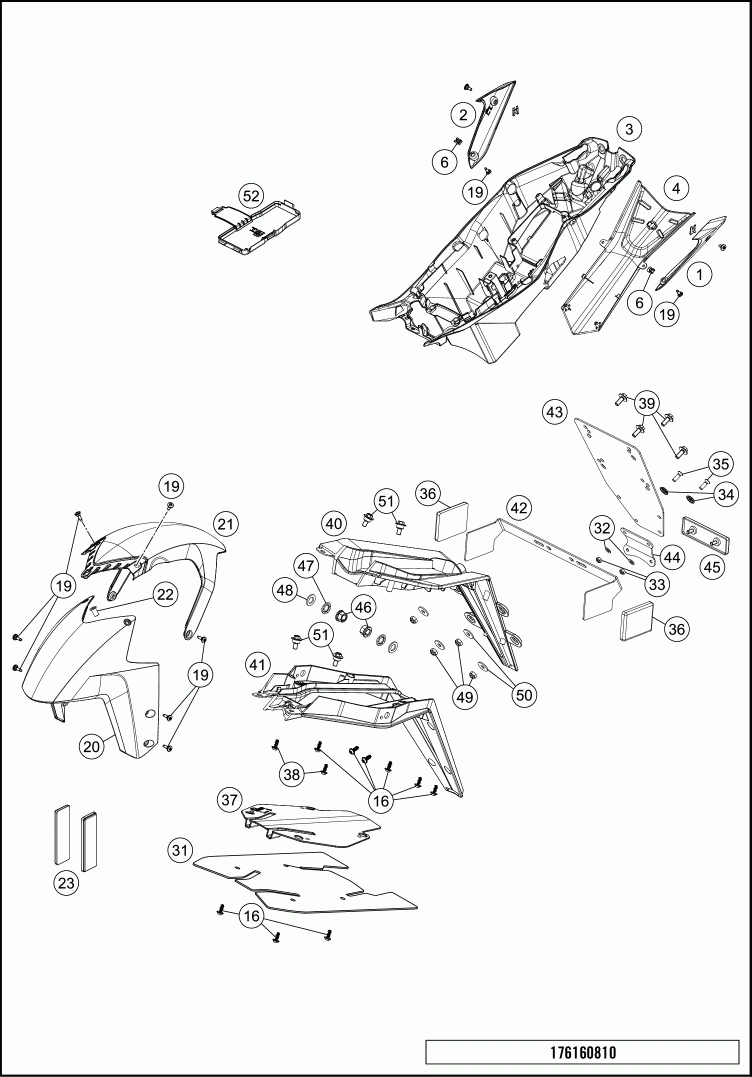

Обтекатель , крылья

KTM 2017 1290 SUPER DUKE R WHITE CHASSIS
KTM
#oem кодцена
1
61608041000KCA
Side fairing WITH DECAL
2
61608042000KCA
Side fairing WITH DECAL
3
61608018000
Tail end lower part
4
6130804000033
REAR FAIRING LOWER PAR T BLACK
6
69008021080
RANGE CHANGE METAL NUT M5
16
0081050121
SCREW FOR PLASTIC K50X12 T20
19
69008021060
SPECIAL SCREW M5X17
20
61308010000AB
Fender
21
6130801100033
REAR FENDER BLACK
22
60008008050
BLIND PLUG-IN NUT M5 WN 16A 03
32
0125050003
WASHER DIN0125-A 5,3
33
0985050003
SELF LOCKING NUT DIN0985-M 5
34
40006006000
WASHER 6MM
35
0966050163
OVAL HEAD SCREW DIN0966-M 5X16
36
16512180100
SIDE REFLECTOR RED REAR ONL Y FOR US
37
61308023010
SPLASH PROTECTION
38
0081050181
SCREW FOR PLASTIC K50X18 T20
39
0024060156
HH COLLAR SCREW M6X15 TX30
40
61308022000
NUMBER PLATE CARRIER UPP . PAR T
41
61308023000
NUMBER PLATE CARRIER LOW . PAR T
42
62512081000
BRACKET SIDE REFLECTOR 06 ONL Y FOR US
43
60012081200
LICENCE FITTING 06
44
58412080050
BRACKET FOR REFLECTOR
46
58414030000
HH COLLAR NUT M10X1,25 WS=13
47
0797100003
LOCK WASHER DIN6797-J10,5 ZI
48
0433100003
WASHER 18x10,5x1,6
49
0985060003
SELF LOCK. NUT DIN0985-M 6
50
0021060003
WASHER DIN9021-A 6,4
51
83008100015
SPECIAL SCREW M6X15X5,5
52
61612054100
storage compartment smartphone
