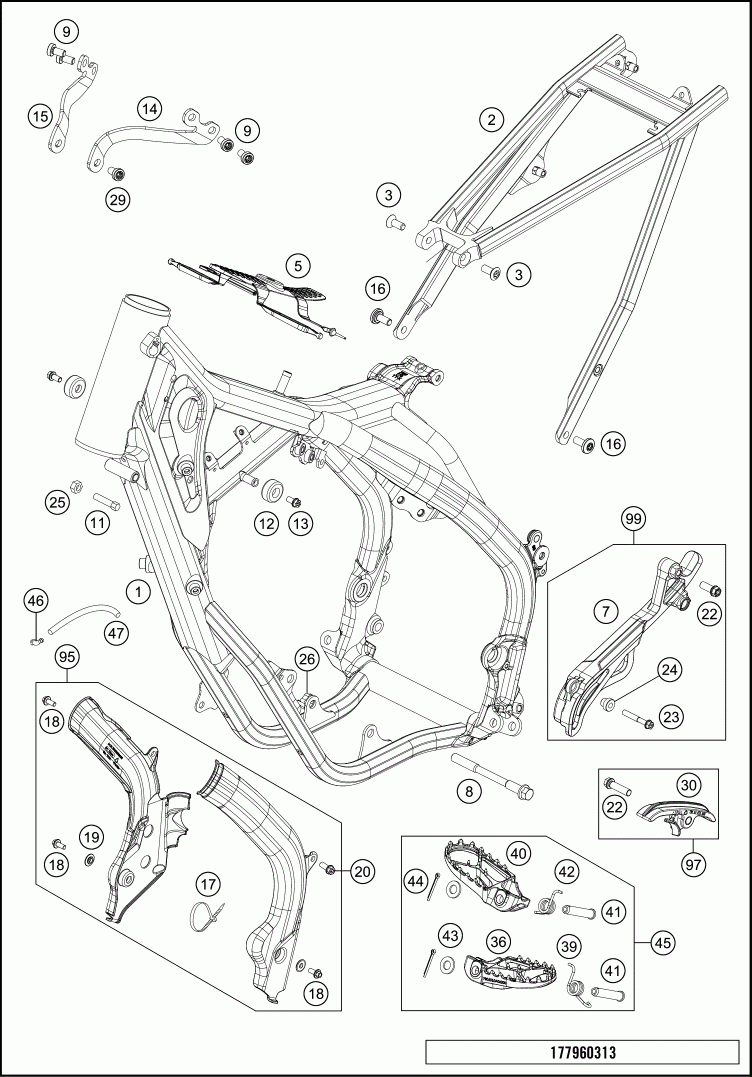

Рама

KTM 2017 150 XC-W CHASSIS
KTM
#oem кодцена
2
79003002100
SUBFRAME 2016
3
0019080206S
FLAT HEAD SCREW M. ISA45 M8X20
5
79007012000
TANK REST RUBBER
7
50403096000
FRONT CHAIN GUARD 125
8
77203014000
ENGINE BRAC.SCR. M10X115
9
0035080156S
AH-COLLAR SCREW M8X15 TORX45
11
59001037000
SPECIAL SCREW M8X26 WS=10
13
0026060136
COLLAR SCREW M6X13 ISA30
14
50403113000
MOTOR BRACKET LEFT
15
50403114000
MOTOR BRACKET RIGHT
16
79003003000
SPECIAL SCREW M8X18 TORX45 SS
17
44011076305
CABLE TIE 300/4,8MM BLACK
17
44011076140
CABLE TIE 140/2,5MM BLACK
18
0014050123
HH COLLAR SCREW M 5X12 WS=6
19
54803092060
BUSH F . FRAME PROTECTION 03
20
0025060126
HH COLLAR SCREW M6X12 TX30
22
0025080306
HH COLLAR SCREW M8X30 TX40
23
0025060406
HH COLLAR SCREW M6X40 TX30
24
0125060003
WASHER DIN0125-A 6,4
25
0934080003
HEXAGON NUT DIN0934-M 8
26
54310086100
SELF LOCKING NUT M10 CU WS=14
29
0035080206S
AH-COLLAR SCREW M8X20 ISA45
30
79003053000
CHAIN SLIDER LOWER PAR T CPL.
36
79603040000
FOOTREST L/S EXC 2017
39
79003045000
FOOTREST SPRING L/S 2016
40
79603041000
FOOTREST R/S EXC 2017
41
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
42
79003044000
FOOTREST SPRING R/S 2016
43
0125100003
WASHER DIN0125-A10,5
44
0094032253
PIN DIN0094-3,2X25 STEEL
45
79603040033
FOOTREST -SET
46
51030022000
ANGLE PIECE 90 DEGREE M10X1
47
55007016001
PVC-HOSE 7X10 PER METER
95
7900309400033
FRAME PROTECTION SET BLACK
97
79003053010
CHAIN SLIDING KIT BELOW CPL.16
99
50403096010
SPROCKET COVER KIT
