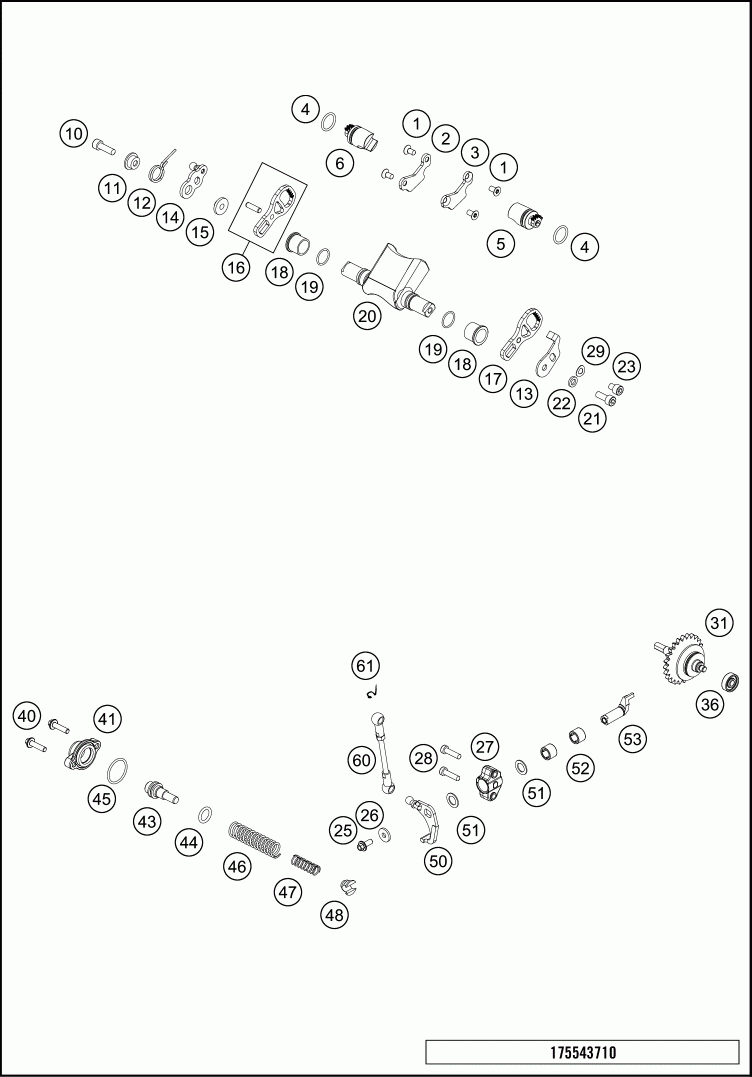

Глушитель

KTM 2017 250 SX ENGINE

Глушитель

#

oem код

название

цена

1

INT . TORX FLAT HEAD M5X10 10.9

INT . TORX FLAT HEAD M5X10 10.9

2

RET AINING PLATE R/S 07

RET AINING PLATE R/S 07

3

RET AINING PLATE L/S 07

RET AINING PLATE L/S 07

4

O-RING 16,00X2,00 VITON

O-RING 16,00X2,00 VITON

5

CONTR.VAL VE 250 LEFT KPL.

CONTR.VAL VE 250 LEFT KPL.

6

CONTR.VAL VE 250 RIGHT KPL.

CONTR.VAL VE 250 RIGHT KPL.

10

AH SCREW DIN0912-M 6X20

AH SCREW DIN0912-M 6X20

11

SPRING SLEEVE

SPRING SLEEVE

12

OVERLOA D SPRING

OVERLOA D SPRING

14

CONTROL LEVER WITH BALL TYPE

CONTROL LEVER WITH BALL TYPE

15

BUSHING SLEEVE

BUSHING SLEEVE

16

GEAR SEGMENT CPL. RIGHT 07

GEAR SEGMENT CPL. RIGHT 07

17

GEAR SEGMENT L/S 250 07

GEAR SEGMENT L/S 250 07

18

BEARING SLEEVE F. CONTROL FLAP

BEARING SLEEVE F. CONTROL FLAP

19

O-RING 15,00X1,50 VITON

O-RING 15,00X1,50 VITON

20

CONTROL FLAP 250

CONTROL FLAP 250

21

AH SCREW DIN0912-M 6X16

AH SCREW DIN0912-M 6X16

22

WASHER 6,5X11X2

WASHER 6,5X11X2

23

AH SCREW DIN0912-M 6X 8

AH SCREW DIN0912-M 6X 8

25

HH COLLAR SCREW M 5X12 WS=6

HH COLLAR SCREW M 5X12 WS=6

26

WASHER DIN7349-5X15 X2

WASHER DIN7349-5X15 X2

27

BEARING SUPPORT

BEARING SUPPORT

29

SPRING WASHER DIN0137-B 6

SPRING WASHER DIN0137-B 6

31

CENTRIFUGA L FORCE REGULA TOR

CENTRIFUGA L FORCE REGULA TOR

36

BALL BEARING 626LLBC3/5K

BALL BEARING 626LLBC3/5K

40

HH COLLAR SCREW M 5X20 WS=6

HH COLLAR SCREW M 5X20 WS=6

43

SPRING GUIDE 250/300

SPRING GUIDE 250/300

44

O-RING 12,37X2,62 NBR70

O-RING 12,37X2,62 NBR70

45

O-RING 24,00X2,00 NBR70

O-RING 24,00X2,00 NBR70

46

ADJUST . SPRING 2003

ADJUST . SPRING 2003

47

AUXILIARY SPRING SOFT , RED

AUXILIARY SPRING SOFT , RED

47

AUXILIARY SPRING MID., YELLOW

AUXILIARY SPRING MID., YELLOW

47

AUXILIARY SPRING HARD, GREEN

AUXILIARY SPRING HARD, GREEN

48

SPRING INSERT

SPRING INSERT

51

SHIM WASHER DIN988 10X16X1

SHIM WASHER DIN988 10X16X1

52

NEEDLE SLEEVE HK 1010 10/14/10

NEEDLE SLEEVE HK 1010 10/14/10

53

ADJUSTING LEVER 250/300

ADJUSTING LEVER 250/300

60

CONNECT ING ROD CPL.

CONNECT ING ROD CPL.

61

SECURING DIN-71805-S -8

SECURING DIN-71805-S -8
