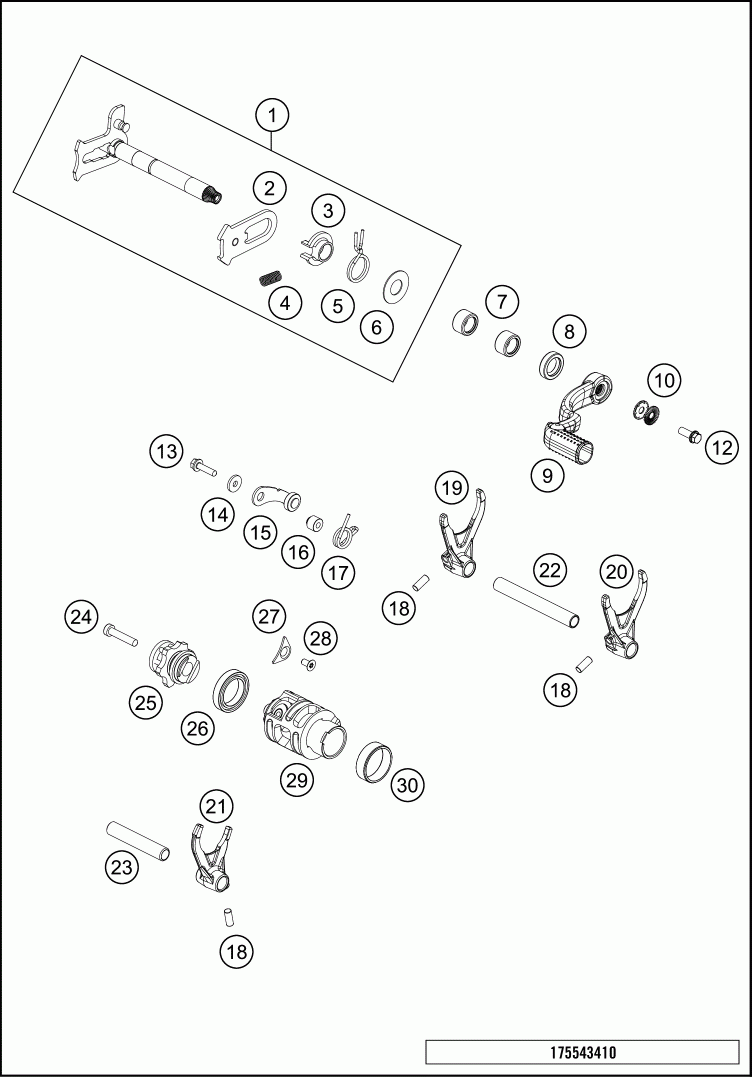

Механизм переключения

KTM 2017 250 SX ENGINE
KTM
#oem кодцена
1
55434005133
SHIFT SHAFT CPL.
2
79234008144
SLIDING PLATE CPL.
3
54634020000
SPRING GUIDE
4
56534013100
TENSIONI NG SPRING 0,8MM
5
54834014000
RETURN SPRING 03
6
54634050000
STOP DISK 14X30X1
7
54632095000
NEEDLE BEAR.HK 1412 14X20X12
8
0760142460
SHAFT SEAL RING 14X24X6 B
9
55434031000
SHIFTING SHAFT CPL.
10
50233041500
PAIR NORDLOCK WASHER M6
12
0024060156S
HH COLLAR SCREW M6X15 TORX30
13
0025050206
HH COLLAR SCREW M5X20 TX30
14
0349000050
WASHER DIN7349-5X15 X2
15
55434024000
LOCKING LEVER CPL.
16
54634052300
SLEEVE FOR LOCKING LEVER
17
55434023100
LOCKING LEVER SPRING
18
0402061480
NEEDLE ROLLER DIN5402 6X14,8
19
79234003000
SHIFTING FORK 1ST/3RD GEAR
20
79234002000
SHIFTING FORK 2ND GEAR
21
79234001000
SHIFTING FORK 4TH/5TH GEAR
22
77034019000
SHIFTING MAIN L=93MM 05
23
54834019000
SHIFT . RAIL MAIN SHAFT 250/300
24
0984060302
AH SCREW DIN6912 M 6X30
25
55434015000
GEARSHIFT CPL.
26
0625618050
BALL BEARING 61805 C3
27
75030085000
RET AINING PLATE F. CS BEARING
28
0019050106S
INT . TORX FLAT HEAD M5X10 10.9
29
79234012000
SHIFT ROLLER 5G
30
79234012010
FRICTION BEARING CONTROLLER
