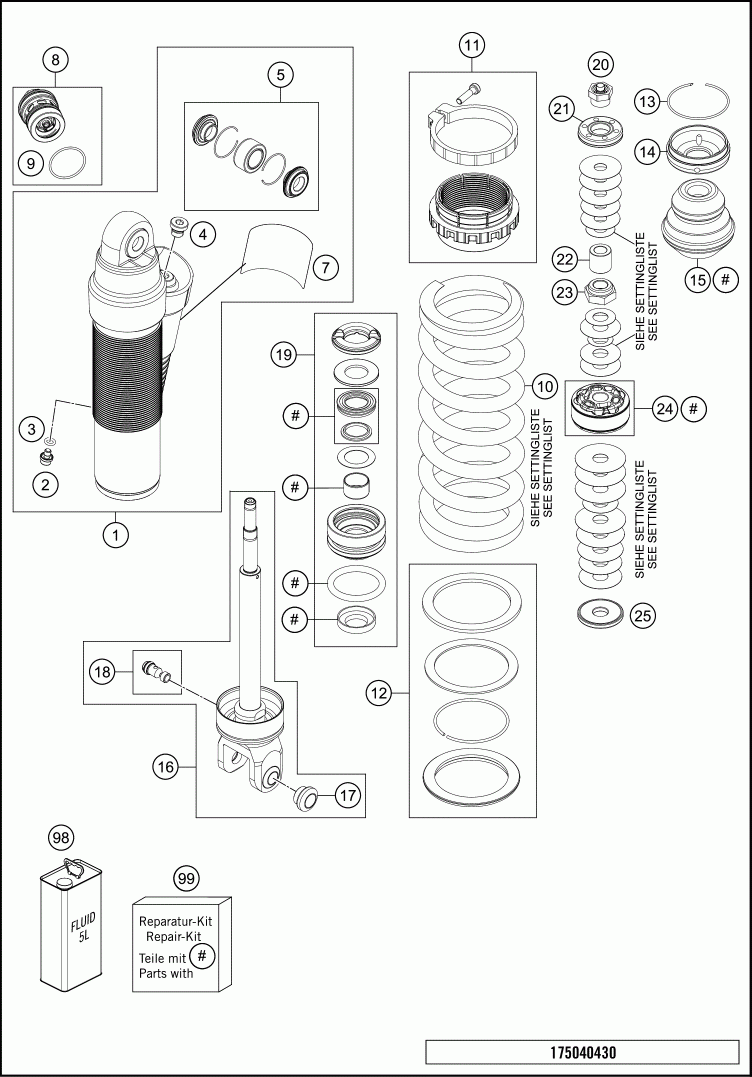

Амортизатор в разборе

KTM 2017 300 XC-W SIX DAYS CHASSIS
KTM
#oem кодцена
1*
46181242S1
MONOSHOCK CASE M53X1 INC PIPE
2
36120151S
SCREW PLUG M5X6
3
46810893
O-RING NBR 5,28X1,78
4*
50180095
BLEED PLUG R 1/8
5*
RP10011
BEARING KIT KGW D12
8*
50181101S5
DCC PDS 2017 CPL.
9
50180217
O-RING 27X1,5 VITON
10*
91010348
SPRING 57-60-63 225MM WHITE
10*
91010349
SPRING 60-63-66 225MM WHITE
10*
91010350
SPRING 63-66-69 225MM WHITE
10*
91010351
SPRING (59/61) NT8,95 WHITE
10*
91010353
SPRING 54-57-60 225MM WHITE
11*
46181228S
SPRING SUPPORT PLASTIC 46 CPL.
12*
RP10005
SPRING CUP SET PDS 17
13*
46810010
CIRCLIP 49X1,5
14*
46180338
CAP D=46 H=9,5
15*
46181237
BUMP RUBBER ?58 ?17 H55 PDS 17
16*
46181236S1
MONOSHOCK LOWER PAR T CPL.
17
50180105
THREADE D BUSH M12 PDS
18*
50181094S
ADJUSTING SCREW M8X0,5 CPL.
19*
46180669S
ADAPTOR CPL. D=46 H=28 07
20*
46181183S
NUT M10X1 PDS
21*
46181184
PISTON ?35,5 PDS
22*
46181025
SANDWIC H BUSH 10X17X17
23*
46810474
PISTON ROD NUT
24*
46181153ES
PISTON CPL. ?12 ?42 BLEED HOLE
25*
46181194
REBOUND WASHER 12X36 T4 H0
98
50180751S1
SHOCK ABSORBER FLUID 5 LT
99*
RP10004
REVISION KIT MONOSHOCK MINI 17
