Руль

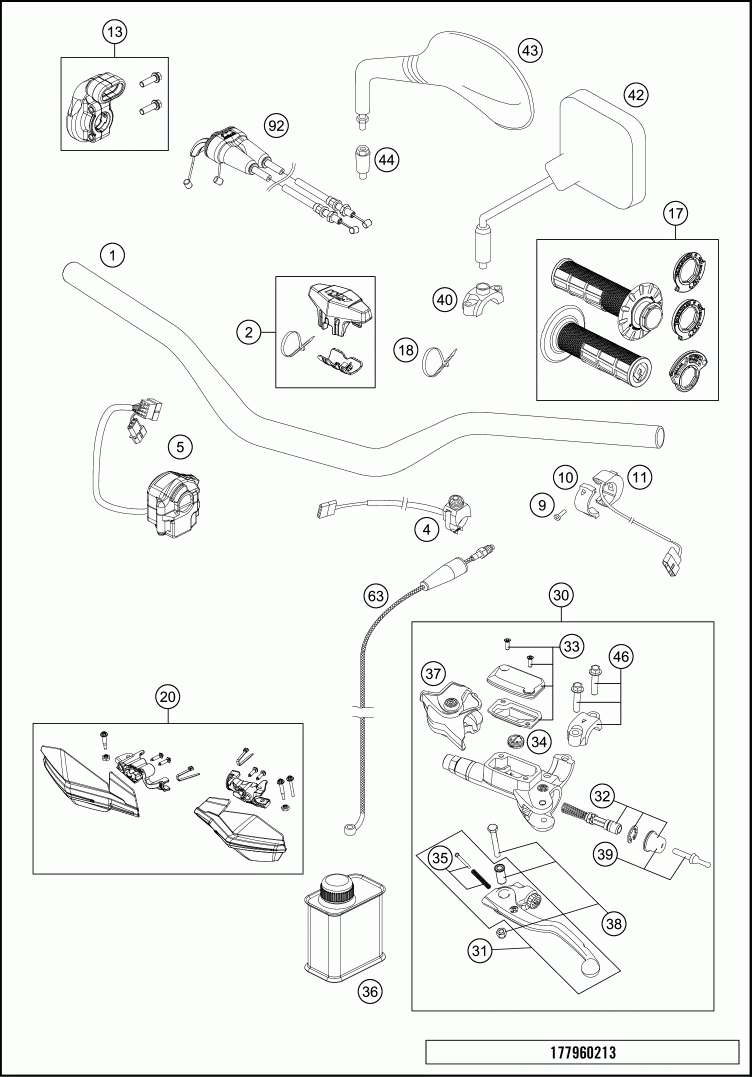

KTM 2017 450 EXC-F SIX DAYS CHASSIS
KTM
#oem кодцена
1
5480200130030
HANDLEB AR D=28MM SX/EXC BLACK
2
77202002144
BAR PAD CPL.
4
78111074000
STARTER BUTTON GREY 13
5
76511070000
LIGHT SWITCH L/S 08
9
0912040203
AH SCREW DIN 912-M 4X20
10
50311074050
CLAMP ENGINE STOP SWITCH
11
50311074000
ENGINE STOP SWITCH CEV
13
79002010025
THROTTLE CONTROL CASING CPL.
17
79002021100
GRIP SET
18
44011076140
CABLE TIE 140/2,5MM BLACK
18
44011076200
CABLE TIE 200/3,6MM BLACK
30
54802030144
MASTER CYLINDER CPL.
31
54802031000
CLUTCH LEVER CPL. BREMBO 06
32
54802032000
REP . KIT PISTON 06
33
5480200310030
COVER HYD. CLUTCH CPL. 2014
34
54802051000
Клапан
35
54802052000
BOL T KPL.
36
00062030000
BRAKE FLUID DOT5.1 0,25L
37
54802037000
PROTECTION CAP 06
38
54802038100
LEVER SCREW CPL. 06
39
54802046000
PUSH ROD CPL.
42
58012040000
REAR MIRROR L/S
42
58012140000
REAR MIRROR R/S
43
58412040000
MIRROR L/S 98
43
58412041000
MIRROR R/S 98
46
54802005100
CLAMP CPL. 06
63
78132063000
Трубка сцепления
92
79002091000
THROTTLE CABLE CPL. 4STROKE
