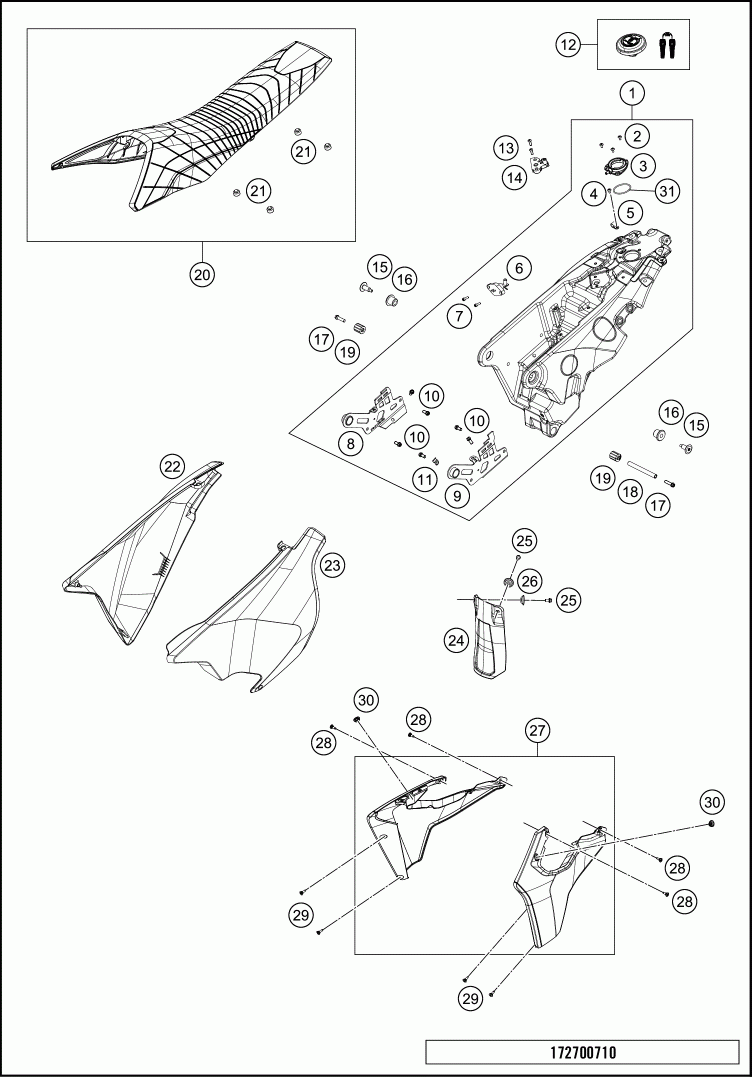

Tank, sea t , cover

KTM 2017 701 ENDURO CHASSIS

Tank, sea t , cover

#

oem код

название

цена

2

SCREW TORX M5X10

SCREW TORX M5X10

3

CLOSING FLANGE

CLOSING FLANGE

4

SCREW TORX M5X10

SCREW TORX M5X10

5

PVC-CLAMP 7,9 MM HEYCO 3355

PVC-CLAMP 7,9 MM HEYCO 3355

6

GAS-LEVEL SENSOR ADV . 2006

GAS-LEVEL SENSOR ADV . 2006

7

AH SCREW DIN0912-M 5X16

AH SCREW DIN0912-M 5X16

10

HH COLLAR SCREW M8X16 TX40

HH COLLAR SCREW M8X16 TX40

13

COU.SUNK SCR. AH ISO7380 M6X18

COU.SUNK SCR. AH ISO7380 M6X18

14

SEAT LOCK

SEAT LOCK

15

BEARING BUSHING UP

BEARING BUSHING UP

16

RUBB.BEAR.BOX 12x24x35 L=24,5

RUBB.BEAR.BOX 12x24x35 L=24,5

17

HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

18

BEARING BUSHING DOWN

BEARING BUSHING DOWN

19

RUBBER BUSHING 11,7X24,7 L=26

RUBBER BUSHING 11,7X24,7 L=26

24

SPLASH PROTECTOR

SPLASH PROTECTOR

25

HH COLLAR SCREW M6X16 TX30

HH COLLAR SCREW M6X16 TX30

26

BUCKET

BUCKET

28

SPECIAL SCREW M5X12

SPECIAL SCREW M5X12

29

SPECIAL SCREW M5X17

SPECIAL SCREW M5X17

30

QUICK CONNECTOR CLUTCH

QUICK CONNECTOR CLUTCH
