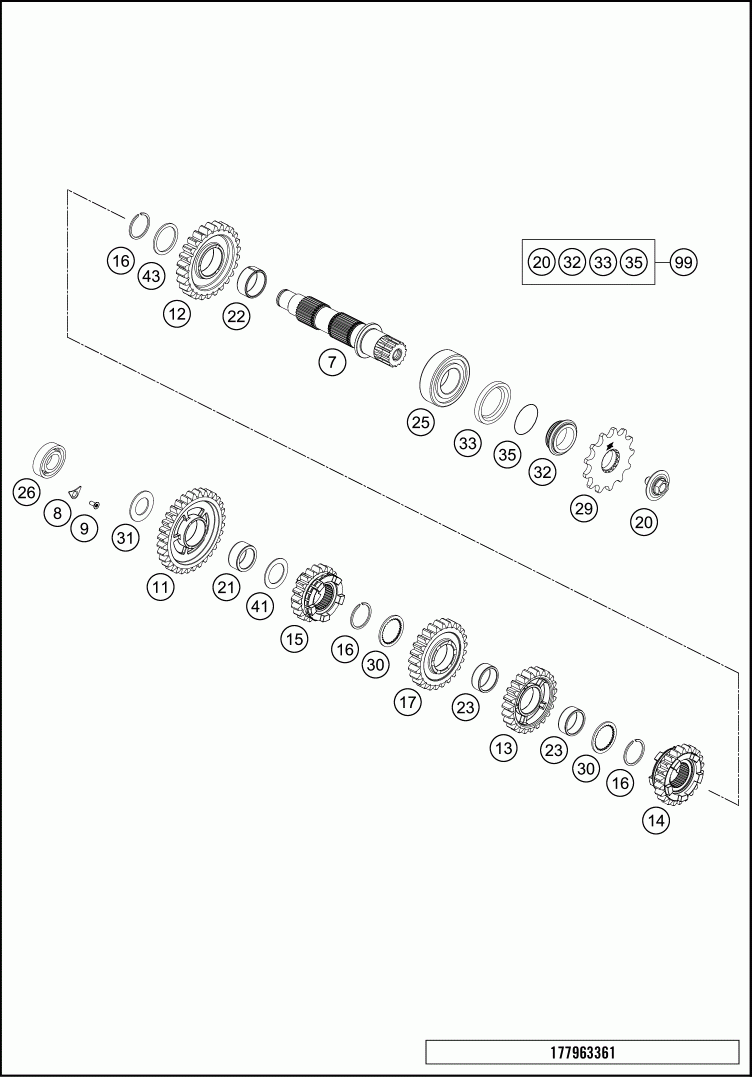

Трансмиссия 2-контрпривод

KTM 2017 FE 350 ENGINE
KTM
#oem кодцена
7
77233110100
COUNTER SHAFT
8
75030085000
RET AINING PLATE F. CS BEARING
9
0019050121S
INT . TORX FLAT HEAD M5X12 T25
11
54833211100
IDLER GEAR 1. G, Z=32
12
54833212100
IDLER GEAR 2. G., Z=26
13
54833214100
IDLER GEAR 4.G., Z=23
14
54833215100
SLIDING GEAR 5.G., Z=22
15
54833216000
SLIDING GEAR 6.G., Z=20
16
0417024000
CIRCLIP WS24
17
54833213000
IDLER GEAR 3.G., Z= 25
20
59033034044
SCREW 10.9+SPRING WASHER
21
0405202612
NEEDLE BEARING K 20X26X12
22
0405242812
NEDDLE BEAR. K24X28X11,9 DIV .
23
0405222611
NEEDLE BEAR.K 22X26X10 DIVIDED
25
49030023000
CYL.ROLL BEARING NJ205
26
0625062035
BALL BEARING 6203 JR2 C3
29
79233029013
SPROCKET 13T
29
79233129014
ENGINE SPROCKET 14Z
30
54833043000
STOP DISC 25X0,8X30X30X7H
31
77233020000
STOP DISK 17,2X30X1,3
32
78133014000
SPACER SLEEVE COUNTER
33
0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
35
0770020220
O-RING 25,12X1,78 NBR70
41
54833080000
STOP DISC 20,2X30X1
43
54833044000
STOP DISC 25X31X1,5
99
00050000941
COUNTER SHAFT REP .KIT 4 STROKE
