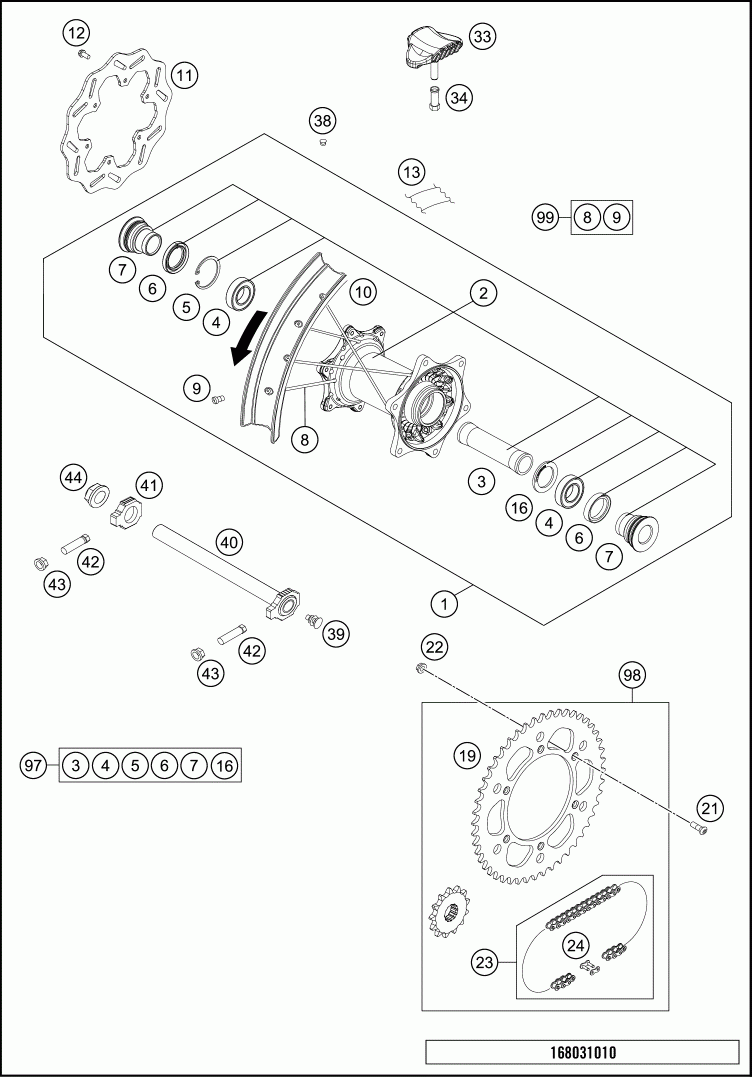

Заднее колесо

KTM 2017 TC 125 CHASSIS
KTM
#oem кодцена
1*
2551000124430
REAR WHEEL CPL.2,15X19
2*
25010010144
REARHUB CPL.
3
77710011000
BEARING DIST ANCE TUBE 121,5MM
4
0625060058
GR.BALL BEAR.6005 DDU2CG23 S6NM
5
0472047175
CIRCLIP DIN0472-47X1 ,75
6
0760324771
SHAFT SEAL RING 32X47X7 BSL
7
77710016000
DIST ANCE BUSHING REAR WHEEL
8
79010071205
SPOKE M4,5X205-19
9
77109072000
SPOKE NIPPLE M4,5 AL 11
10
2501007000030
RIM 2,15X19
12
59009062013
SPECIAL SCREW M6X13 WS=8 10.9
13
50310073200
RIM BAND 18
16
77710015000
DIST ANCE RING
19
7771015104830
SPROCKET 48-T BLACK
19
7771015105030
SPROCKET 50-T BLACK
19
7771015105230
SPROCKET 52-T BLACK
21
0019080266S
COUNTER -SUNK SCREW ISA45 M8X26
22
06923080003
HEXAGON NUT DIN EN1661 M8 SW13
23
50310165118
CHAIN 5/8X1/4
24
50310166000
CONNECT ING LINK F. 50310165118
33*
78110090000
RIM LOCK 2,15
34
77110090050
NUT FOR WHEEL HOLDER
38
55003135000
PLUG FOR RIM
39
50210086000
COVERING CAP SFL16
41
77710084000
CHAIN TENSIONER R/S
42
50304040100
SCREW M10X1,25X50 WS=10
43
58414030000
HH COLLAR NUT M10X1,25 WS=13
44
61010086000
COLLAR NUT M25X1,5 WS=32 05
97
77710015010
REAR WHEEL REP . KIT
99
00050000979
SPOKE KIT REAR 19
