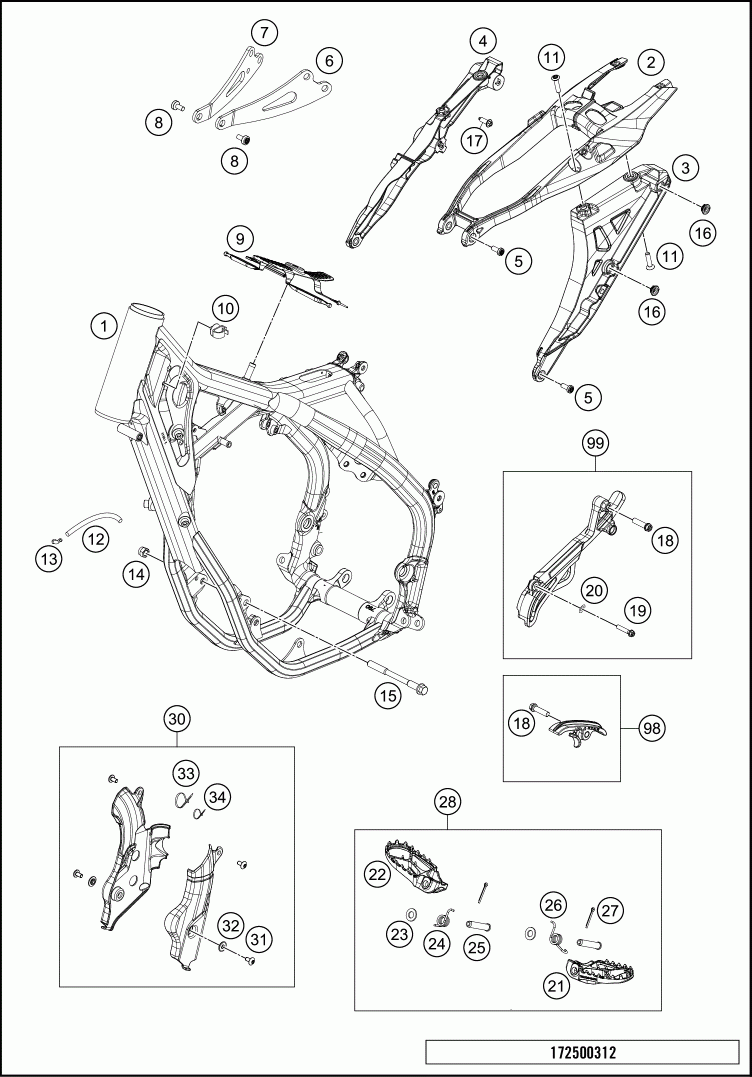

Рама

KTM 2017 TC 250 CHASSIS

Рама

#

oem код

название

цена

5

AH-COLLAR SCREW M8X20 ISA45

AH-COLLAR SCREW M8X20 ISA45

6*

ENGINE BRACE LEFT 17

ENGINE BRACE LEFT 17

7*

ENGINE BRACE RIGHT 17

ENGINE BRACE RIGHT 17

8

AH-COLLAR SCREW M8X15 TORX45

AH-COLLAR SCREW M8X15 TORX45

9

TANK REST RUBBER

TANK REST RUBBER

10*

WIRING HOLDER 16MM

WIRING HOLDER 16MM

11

COUNTER -SUNK SCREW ISA45 M8X30

COUNTER -SUNK SCREW ISA45 M8X30

12

PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

14

SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

15

ENGINE BRAC.SCR. M10X115

ENGINE BRAC.SCR. M10X115

16

QUICK CONNECTOR CLUTCH

QUICK CONNECTOR CLUTCH

17*

SCREW FOR PLASTIC K60X20 SW6

SCREW FOR PLASTIC K60X20 SW6

18

HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

19

HH COLLAR SCREW M6X40 TX30

HH COLLAR SCREW M6X40 TX30

20

WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

21

FOOTREST L/S 2016

FOOTREST L/S 2016

22

FOOTREST R/S 2016

FOOTREST R/S 2016

23

WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

24

FOOTREST SPRING R/S 2016

FOOTREST SPRING R/S 2016

25

PIN FOR FOOT PED 51.5X9.8 MM

PIN FOR FOOT PED 51.5X9.8 MM

26

FOOTREST SPRING L/S 2016

FOOTREST SPRING L/S 2016

27

PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

28

FOOT PEGS SET CPL. 2016

FOOT PEGS SET CPL. 2016

31

SCREW TORX M5X10

SCREW TORX M5X10

32

BUSH F. FRAME PROTECTION 03

BUSH F. FRAME PROTECTION 03

33

CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

34

CABLE TIE 140/2,5MM BLACK

CABLE TIE 140/2,5MM BLACK

98

CHAIN SLIDING KIT BELOW CPL.16

CHAIN SLIDING KIT BELOW CPL.16

99

SPROCKET COVER KIT

SPROCKET COVER KIT
