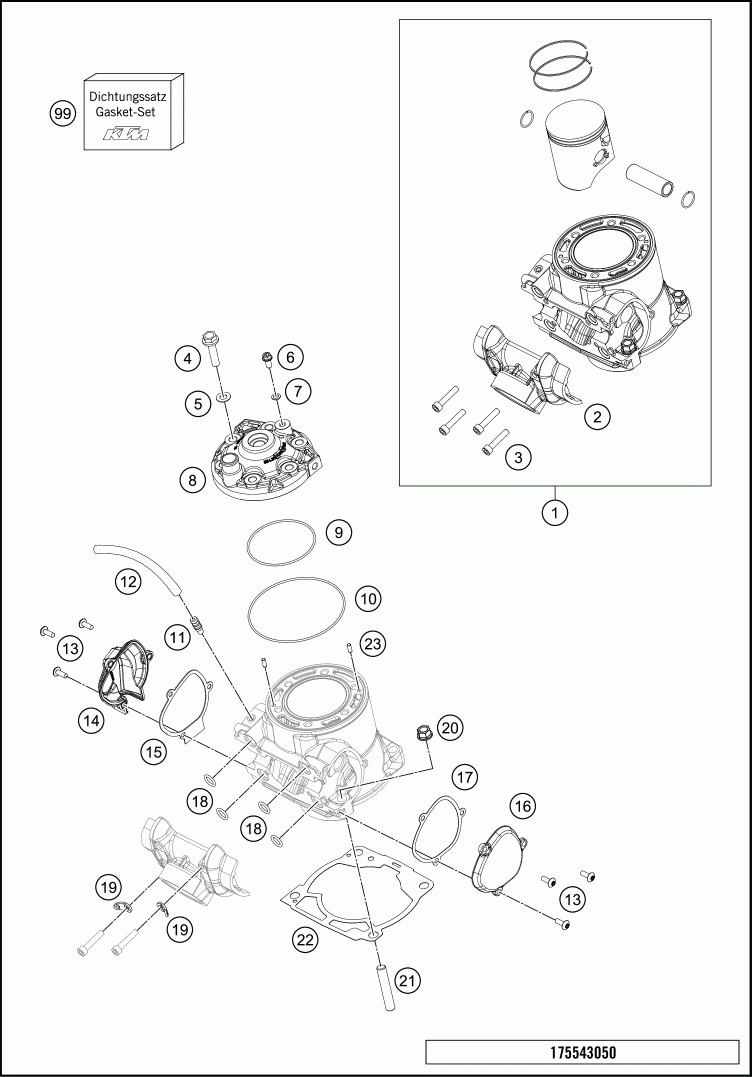

Цилиндр,головка цилиндров

KTM 2017 TC 250 ENGINE
KTM
#oem кодцена
1
55430038000
CYLINDER + PISTON CPL. 17
2
55437001000
CONNECT ION FLANGE
3
0912060353
AH SCREW DIN0912-M 6X35
4
54830079000
COLLAR SCREW M 8X35 WS=13
5
56530080000
CU-SEAL RING 8 X 16 X 1
6
0025060126
HH COLLAR SCREW M6X12 TX30
7
0603061001
CU-SEAL RING DIN7603-6X10X 1
8
55430006000
CYLINDER HEAD 250 SX
9
0770730020
O-RING 73,00X2,00 VITON
10
0770105020
O-RING 105,00X2,00 07
11
58336020090
VACUUM CONNECTION M 6X1
12
50335030001
PVC-HOSE 6X9
13
58605083014
SCREW M5X14 TORX 25 07
14
5483700700015
CONTROL COVER R/S 09
15
54837008000
GASKET FOR CONTROL COVER R/S
16
5483700500015
CONTROL COVER L/S 09
17
54837006000
GASKET FOR CONTROL COVER L/S
18
0770116241
O-RING 11,3 X2,4 SILICON
19
51005074000
RET AINING PLATE
20
54630044000
COLLAR NUT M10 WS=13
21
0835100351S
STUD SCREW DIN0835-M10X35
22
55430030020
CYLINDER BASE GASKET
22
55430030040
CYLINDER BASE GASKET
22
55430030050
CYLINDER BASE GASKET
22
55430030075
CYLINDER FOOT GASKET
23
0402040980
NEEDLE ROL.DIN540 2 NRB 4X9,8
99
55430097000
GASKET SET CYL. 250SX 17
