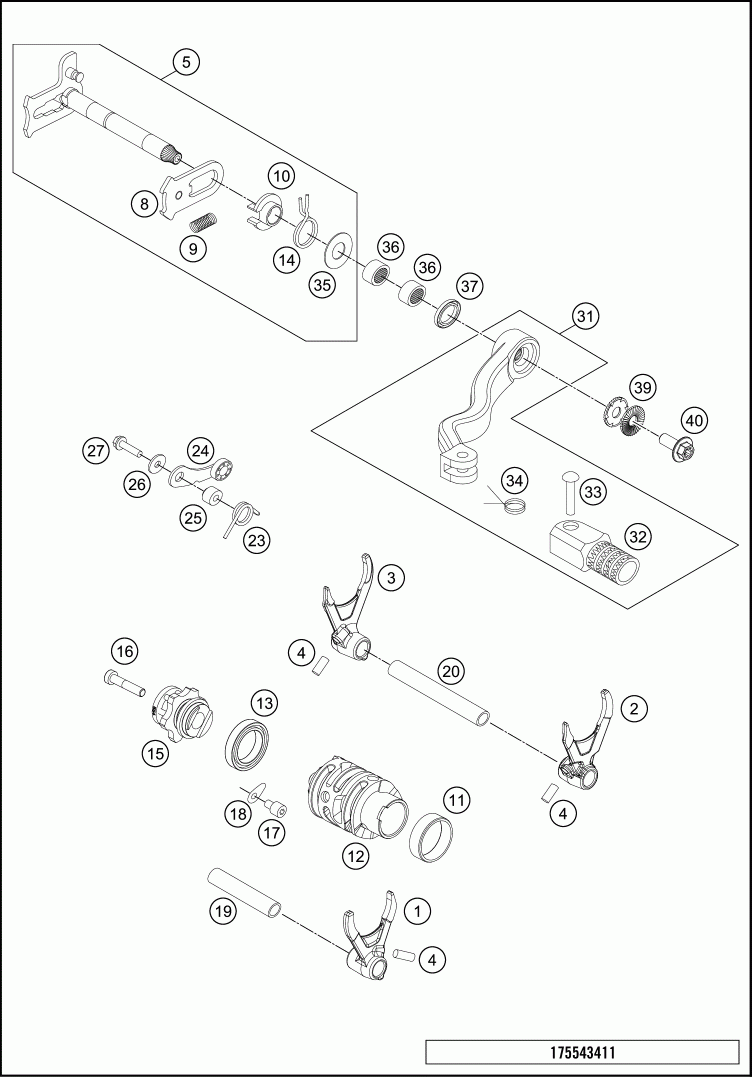

Механизм переключения

KTM 2017 TE 250 ENGINE
KTM
#oem кодцена
1
79234101000
SHIFT FORK 5.-6. GEAR
2
79234102000
SHIFT FORK 2.-4. GEAR
3
79234103000
SHIFT FORK 1.-3. GEAR
4
0402061480
NEEDLE ROLLER DIN5402 6X14,8
5
55434005133
SHIFT SHAFT CPL.
8
61234008044
SLIDING PLATE
9
56534013100
TENSIONI NG SPRING 0,8MM
10
54634020000
SPRING GUIDE
11
79234012010
FRICTION BEARING CONTROLLER
12
79234112000
SHIFT ROLLER
13
0625618050
BALL BEARING 61805 C3
14
54834014000
RETURN SPRING 03
15
55434015000
GEARSHIFT CPL.
16
0984060302
AH SCREW DIN6912 M 6X30
17
0019050106S
INT . TORX FLAT HEAD M5X10 10.9
18
75030085000
RET AINING PLATE F. CS BEARING
19
54834019000
SHIFT . RAIL MAIN SHAFT 250/300
20
77034019000
SHIFTING MAIN L=93MM 05
23
55434023100
LOCKING LEVER SPRING
24
55434024000
LOCKING LEVER CPL.
25
54634052300
SLEEVE FOR LOCKING LEVER
26
0349000050
WASHER DIN7349-5X15 X2
27
0025050206
HH COLLAR SCREW M5X20 TX30
31
55434031000
SHIFTING LEVER CPL.
32
54634131000
STEP PLATE FOR SHIFT LEVER 250
33
54634031050
BOL T 6X25 FOR SHIFT LEVER
34
54634032100
SHIFTING LEVER SPRING 250
35
54634050000
STOP DISK 14X30X1
36
54632095000
NEEDLE BEAR.HK 1412 14X20X12
37
0760142460
SHAFT SEAL RING 14X24X6 B
39
50233041500
PAIR NORDLOCK WASHER M6
40
0024060156S
HH COLLAR SCREW M6X15 TORX30
