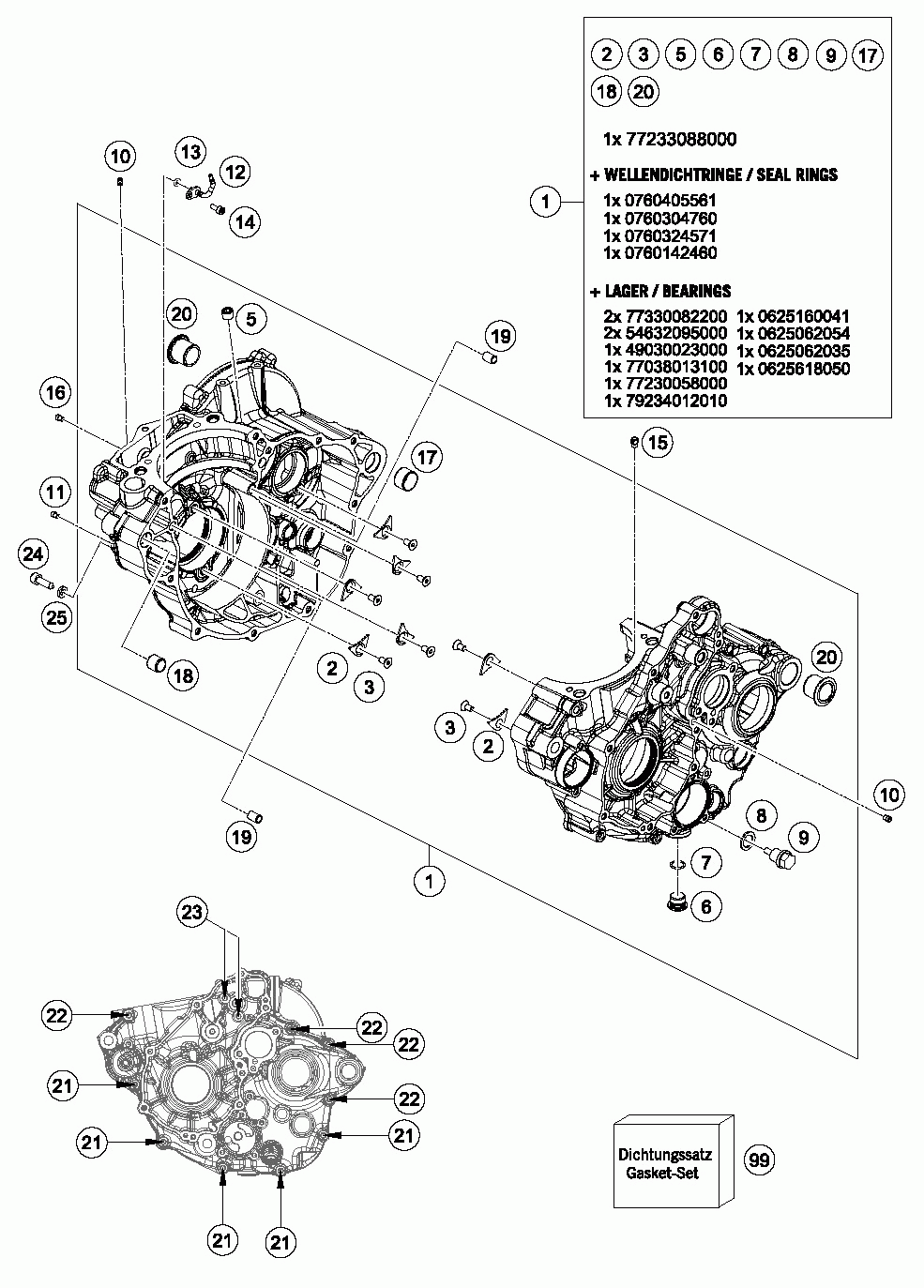

Картер двигателя Оригинальные запчасти для мотоциклов KTM 250 XC-F ENGINE (2017)

Картер двигателя

KTM 250 XC-F ENGINE

oem код

название

цена

79230000133

Engine case cpl.

75030085000

RETAINING PLATE F. CS BEARING

0019050121S

INT. TORX FLAT HEAD M5X12 T25

0906100100

pipe plug DIN 906 M10x1

78036081000

HOLDING BOLT M14X1,5

0770110015

O-RING 1,5x11 SILICON

58038022000

CU-SEAL RING DIN7603-12X18X1,5

58030021100

oildrain plug with magnet

JET 44-031/150

OIL JET ANGLED 50

O-RING 3,5X2,00 NBR

AH.SCREW DIN0912-M 4X10

60030063050

oil jet 50 M5

59030058000

JET 100 BING(44-031/180) M4

59030024000

DOWEL 17 X 19 X 12

54630027000

DOWEL BUSHING 13,8X11X12

59030023000

dowel sleeve 6x8x11.5

79230010000

CASE BUSH

0025060556

HH collar screw M6x55 TX30

0025060656

HH COLLAR SCREW M6X65 TX30

0025060706

HH COLLAR SCREW M6X70 TX30

77730080000

LOCATING SCREW M8 L=25

58030081000

CU-SEAL RING 8 X 14 X 3

79230099000

GASKET KIT ENGINE 250 SX-F
