Рама Оригинальные запчасти для мотоциклов KTM 300 XC CHASSIS (2017)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

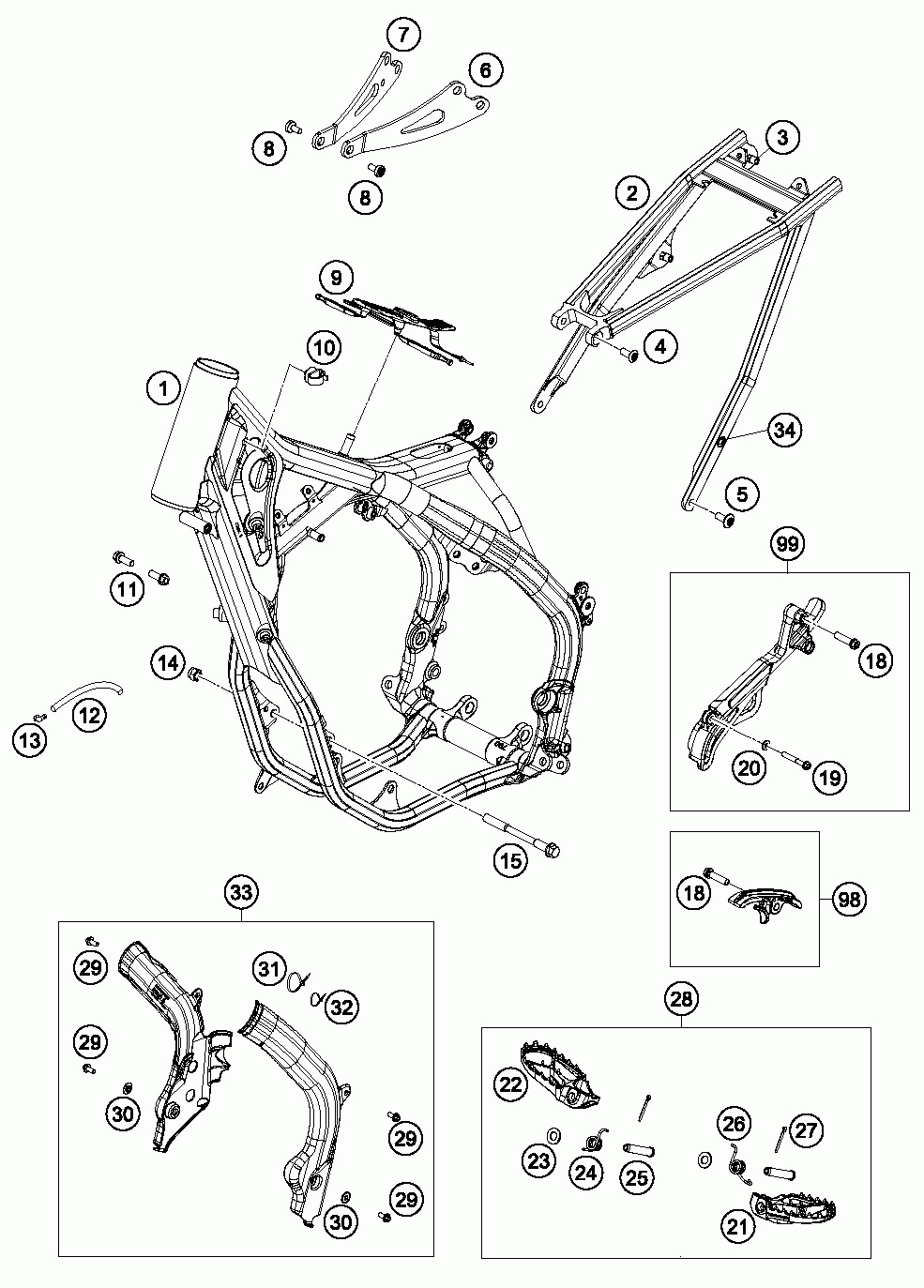

Рама

KTM 300 XC CHASSIS

Рама

#

oem код

название

цена

2

Subframe 2018

Subframe 2018

3

BLIND RIVET NUT EM6-60LF/HX

BLIND RIVET NUT EM6-60LF/HX

4

FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

5

SPECIAL SCREW M8X18 TORX45 SS

SPECIAL SCREW M8X18 TORX45 SS

6*

ENGINE BRACE LEFT 17

ENGINE BRACE LEFT 17

7*

ENGINE BRACE RIGHT 17

ENGINE BRACE RIGHT 17

8

AH-COLLAR SCREW M8X15 TORX45

AH-COLLAR SCREW M8X15 TORX45

9

TANK REST RUBBER

TANK REST RUBBER

10

CABLE SUPPORT KHS NR.150-47610

CABLE SUPPORT KHS NR.150-47610

11

HH collar screw M8x16 TX40 SL

HH collar screw M8x16 TX40 SL

12

PVC-HOSE 6X9

PVC-HOSE 6X9

14

SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

15

engine brac.scr. M10x115

engine brac.scr. M10x115

18

HH collar screw M8x30

HH collar screw M8x30

19

HH collar screw M6x40 TX30

HH collar screw M6x40 TX30

20

WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

21

FOOTREST L/S 2016

FOOTREST L/S 2016

22

FOOTREST R/S 2016

FOOTREST R/S 2016

23

washer DIN 125 A 10.5

washer DIN 125 A 10.5

24

FOOTREST SPRING R/S 2016

FOOTREST SPRING R/S 2016

25

PIN FOR FOOT PED 51.5X9.8 MM

PIN FOR FOOT PED 51.5X9.8 MM

26

FOOTREST SPRING L/S 2016

FOOTREST SPRING L/S 2016

27

PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

28

FOOT PEGS SET CPL. 2016

FOOT PEGS SET CPL. 2016

29

HH COLLAR SCREW M 5X12 WS=6

HH COLLAR SCREW M 5X12 WS=6

30

BUSH F. FRAME PROTECTION 03

BUSH F. FRAME PROTECTION 03

31

CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

32

CABLE TIE 140/2,5MM BLACK

CABLE TIE 140/2,5MM BLACK

33

FRAME PROTECTION SET BLACK

FRAME PROTECTION SET BLACK

34

BLIND RIVET NUT M6 KNURLED

BLIND RIVET NUT M6 KNURLED

98

CHAIN SLIDING KIT BELOW CPL.16

CHAIN SLIDING KIT BELOW CPL.16

99

SPROCKET COVER KIT

SPROCKET COVER KIT
