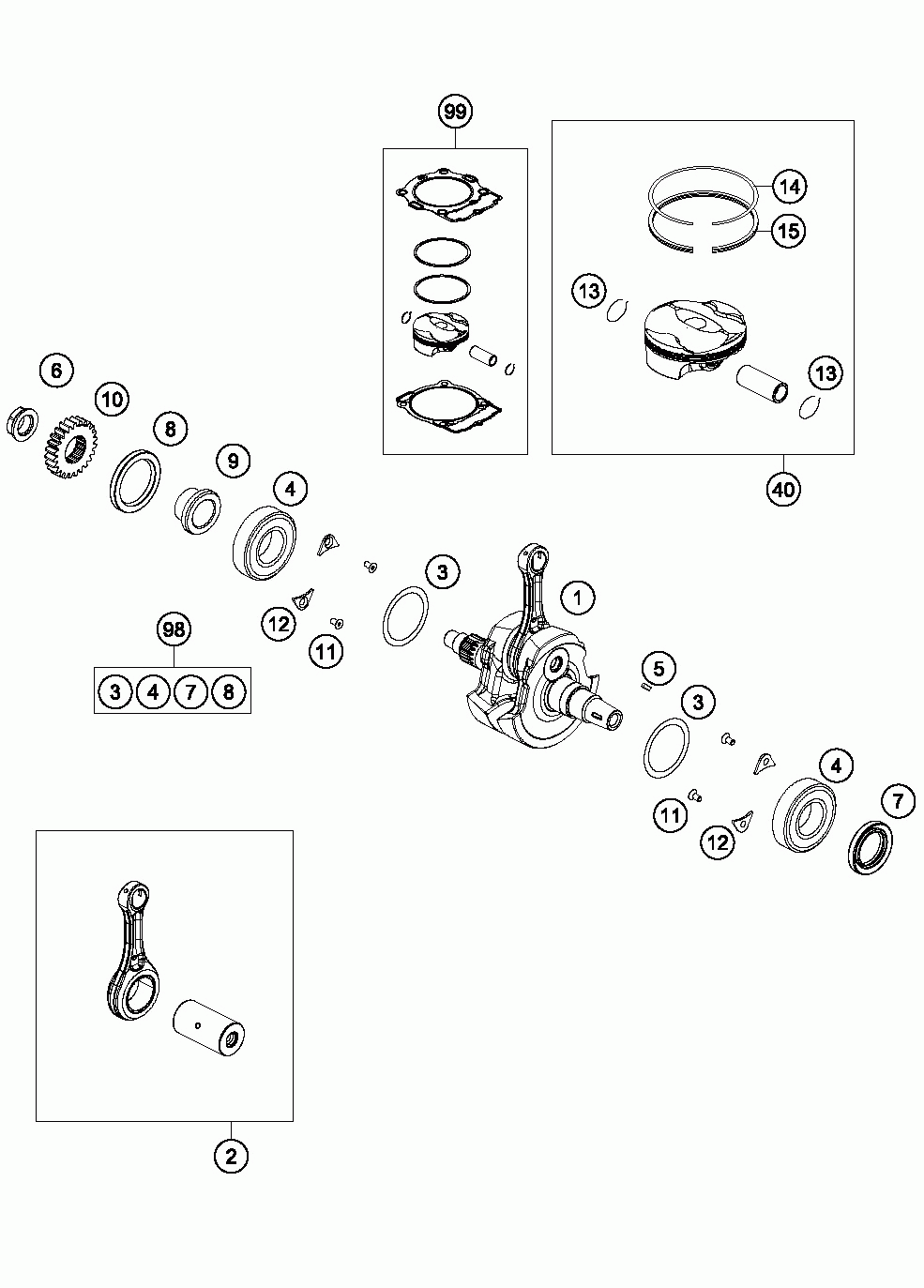

Коленвал и поршень

KTM 350 SX-F ENGINE
KTM
#oem кодцена
1
79230018100
CRANKSHAFT CPL.
2
79230015144
CONROD REPAIR KIT
3
0988324510
THRUST WASHER 988ST 32X0,1
3
0988324515
THRUST WASHER 988ST 32X0,15
3
0988324530
THRUST WASHER 988ST 32X0,30
4
77330082200
BEARING NJ 206 ECP/HN3C4HVA624
5
0888030037
WOODRUFF KEY DIN6888-3X3,7
6
77230029000
NUT PRIMARY WHEEL
7
0760304760
SHAFT SEAL RING A30X47X6 VITON
8
0760405561
SHAFT SEAL RING A 40X55X6 V.
9
77232022000
SPACER BUSHING PRIMARY GEAR
10
79232023024
PRIMARY GEAR 24T.
11
0019050121S
INT. TORX FLAT HEAD M5X12 T25
12
75030085000
RETAINING PLATE F. CS BEARING
13
79230274000
CIRCLIP PISTON PIN
14
77230030000
COMPRESSIONRING 350
15
79230232000
OIL SCRAPER RING
40
79230207100 I
PISTON I CPL. 350
40
79230207100 II
PISTON II CPL. 350
98
00050002316
CRANKSHAFT REP. KIT
99
00050000231
PISTON KIT 350 SX-F GR. I
99
00050000232
PISTON KIT 350 SX-F GR. II
