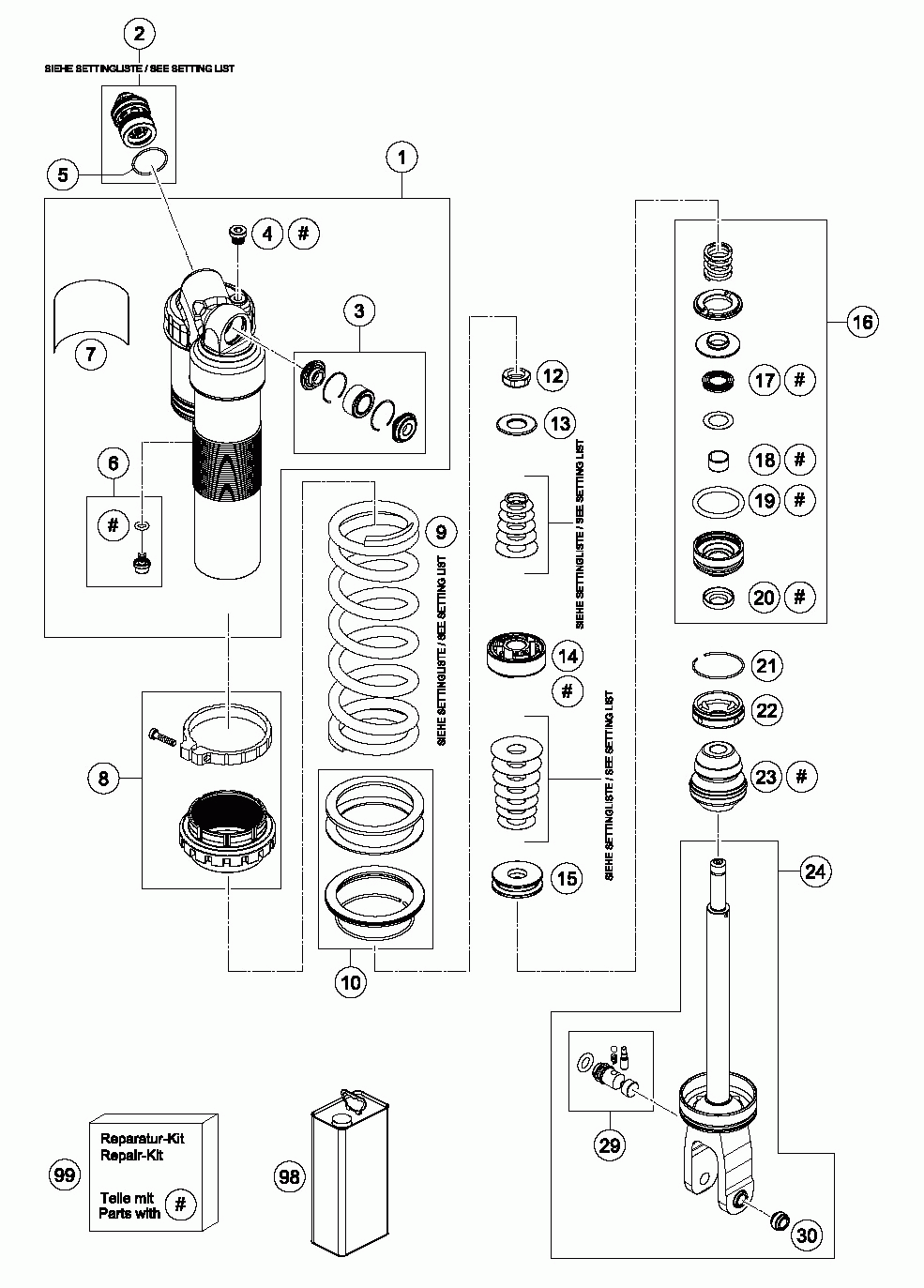

Амортизатор в разборе

KTM 450 XC-F CHASSIS

Амортизатор в разборе

#

oem код

название

цена

1*

MONOSHOCK UPPER PART CPL.

MONOSHOCK UPPER PART CPL.

2*

Compression cpl.

Compression cpl.

2*

Compression cpl.

Compression cpl.

2*

Compression cpl.

Compression cpl.

2*

DCC LINK 2017 CPL.

DCC LINK 2017 CPL.

2*

DCC LINK 2017 CPL.

DCC LINK 2017 CPL.

2*

DCC LINK 2017 CPL.

DCC LINK 2017 CPL.

3

Ball joint bearing kit 12mm

Ball joint bearing kit 12mm

4

HS cylinder-head screw R1/8 l8

HS cylinder-head screw R1/8 l8

5

O-ring 25x1,5 Viton70

O-ring 25x1,5 Viton70

6

PLUG SCREW M5X6 CPL.

PLUG SCREW M5X6 CPL.

7*

Sticker WP warning 55x92

Sticker WP warning 55x92

8

Spring retainer M58,1x2 plastic cpl.

Spring retainer M58,1x2 plastic cpl.

9

SPRING 260 42 N/MM

SPRING 260 42 N/MM

9

SPRING 260 45 N/MM

SPRING 260 45 N/MM

9*

SPRING 260 48 N/MM

SPRING 260 48 N/MM

9*

SPRING 260 51 N/MM

SPRING 260 51 N/MM

9

SPRING 260 39 N/MM

SPRING 260 39 N/MM

9*

Spring 255 36 N/MM

Spring 255 36 N/MM

10

SPRING PLATE SET

SPRING PLATE SET

12

Locking nut M12x1 h9 WAF19

Locking nut M12x1 h9 WAF19

13

Rebound disc 12x34x2 h0

Rebound disc 12x34x2 h0

14

Piston 12x49,6x20 cpl.

Piston 12x49,6x20 cpl.

15

Rebound disc 12x43x12,5 h8

Rebound disc 12x43x12,5 h8

16

Sealholder 50x28 cpl.

Sealholder 50x28 cpl.

17

Seal ring cpl. 18x30x5

Seal ring cpl. 18x30x5

18

Guide bushing 18x20x12

Guide bushing 18x20x12

19

O-ring 41x5 NBR70

O-ring 41x5 NBR70

20

Dirt scarper NOK 18mm black

Dirt scarper NOK 18mm black

21

Round-wire snap ring 53x1,75

Round-wire snap ring 53x1,75

22

Cover 50x6 h16

Cover 50x6 h16

23

Rubber pad 18x58x46 black

Rubber pad 18x58x46 black

24*

MONOSHOCK BOTTOM PART CPL.

MONOSHOCK BOTTOM PART CPL.

29

ADJUSTING SCREW M8X0,5 CPL.

ADJUSTING SCREW M8X0,5 CPL.

30

Bush M10x12/15/13x9,5

Bush M10x12/15/13x9,5

98

SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT

99

REP. KIT 5018 LINK 2016 US/HQV

REP. KIT 5018 LINK 2016 US/HQV
