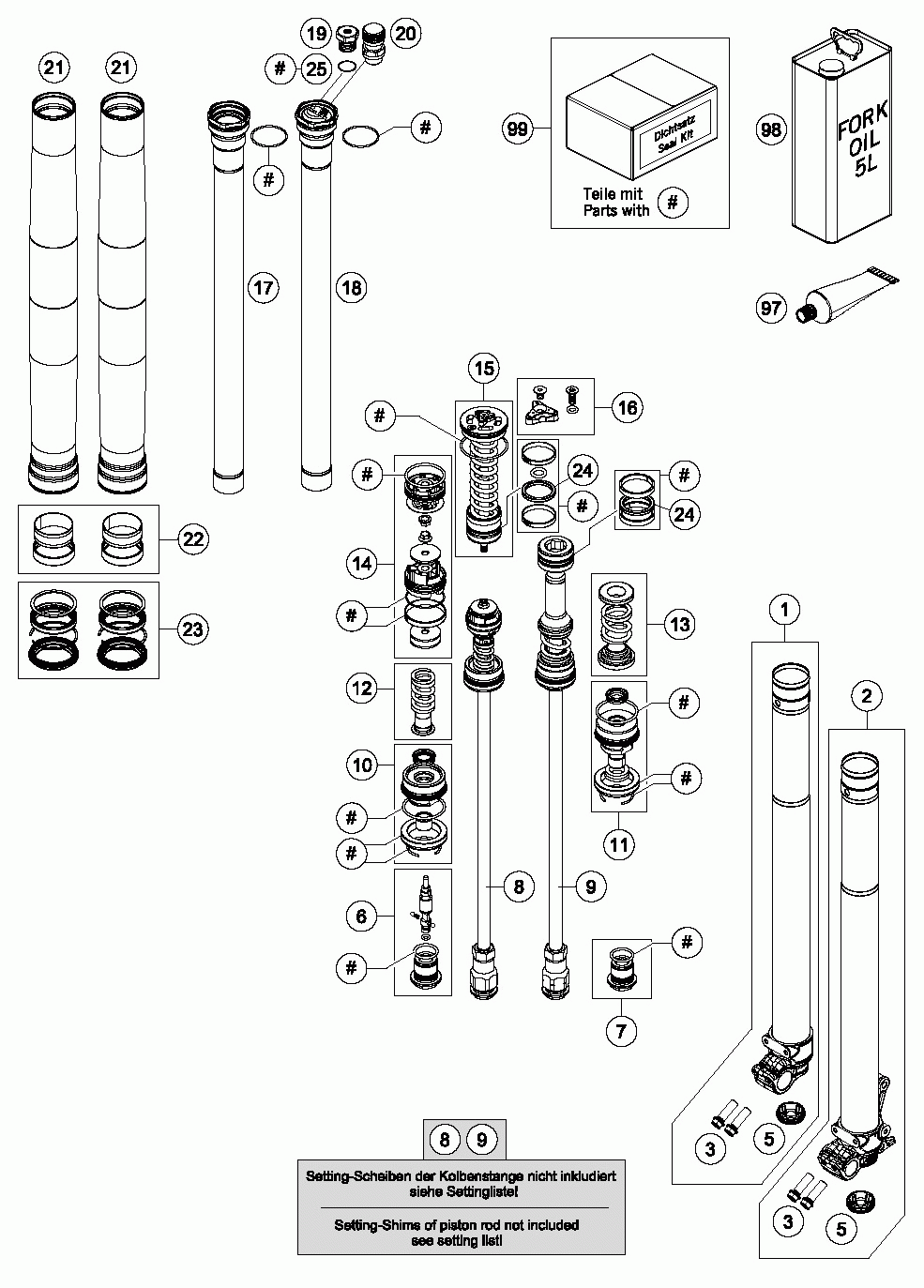

Передняя вилка в разборе

KTM 450 XC-F CHASSIS
KTM
#oem кодцена
1
48601408S2
FORK LEG R/S + TUBE CPL.
2
48601407S2
FORK LEG L/S + TUBE CPL.
3
0025080256
HH collar screw M8x25
5
48600692
Rubber cap 26,4x11
6
48601484S
Adjustment screw slot M20x1 cpl.
7
48601533S
HH collar screw M20x1x18 cpl.
8*
48601574S1
PISTON ROD R/S CPL. M9X1
9
48601501S
PISTON ROD L/S CPL. M12X1
10
48601462S1
SCREW SLEEVE OIL CPL.
11
48601452S1
Screw sleeve M35,5x0,8
12
48600578S
Spring (13,9) 37-32 rebound cpl.
13
48601820S
Spring (22) 60-30 rebound cpl.
14
R14061
PISOTN SET AIR FORK D34
15
48601485S
Compression cpl.
16
R14062
SMALL PARTS KIT SCREW CAP
17
48601454S1
SCREW CAP + TUBE CPL. R/S
18
48601453S1
SCREW CAP + TUBE CPL. L/S
19
48601495
ISA lock screw M8x1 l7 Alu
20
48601494S
VALVE M8X1 INCL. SCREW CAP
21*
48601671
Fork outer tube 49,13x577 dt54 db60 natu
22
R14047
Guide bushing set fork 48mm
23
R14046
Repair kit fork 48mm
24
04100002
X-ring 26,57x3,53 FKM80
25
48600044
O-ring 6x1,5 NBR70
97
00062010051
CENTOPLEX 2 EP - 45g MP-GREASE
98
48601166S1
FORK OIL SAE4 5L
99
R14060
SEALING KIT
