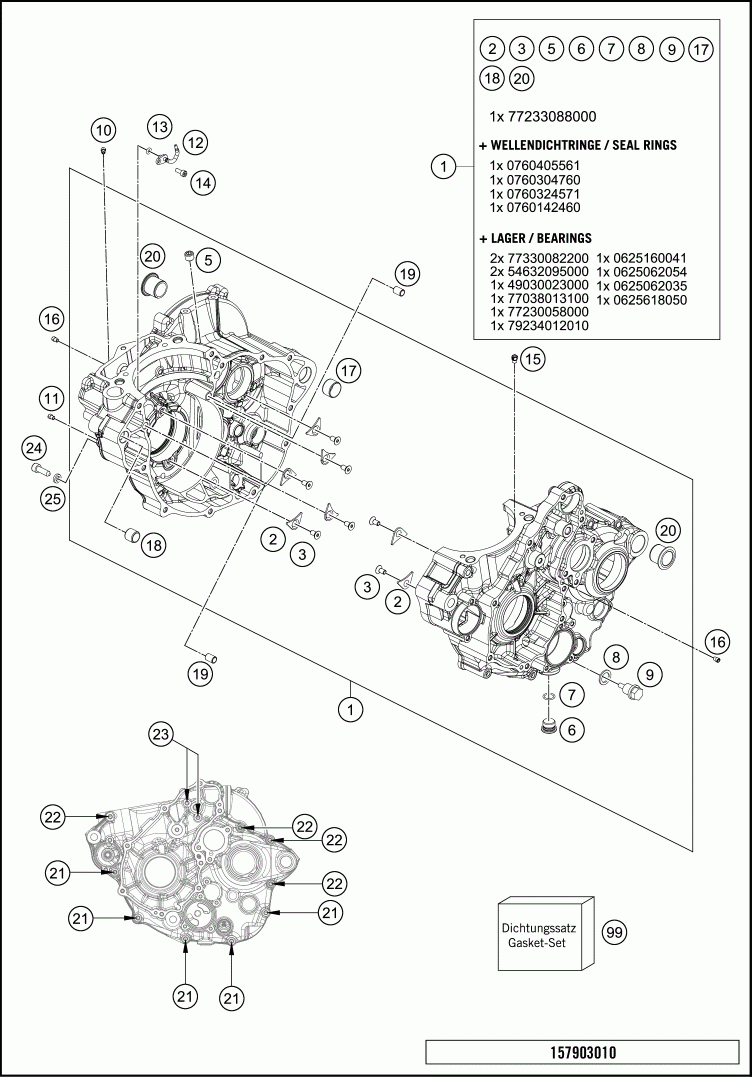

Картер двигателя

KTM 2016 250 SX-F ENGINE
KTM
#oem кодцена
1*
79230000133
ENGINE CASE CPL.
2
75030085000
RET AINING PLATE F. CS BEARING
3
0019050121S
INT . TORX FLAT HEAD M5X12 T25
5
0906100100
PLUG DIN0906-M10X1
6
78036081000
HOLDING BOL T M14X1,5
7
0770110015
O-RING 1,5x11 SILICON
8
58038022000
CU-SEAL RING DIN7603-12X18 X1,5
9
58030021100
OILDRAIN PLUG W.MAG. M 12X1,5
10
80030058060
OIL JET
11
77030058150
JET 44-031/150
12
81230164050
OIL JET ANGLED 50
13
0770035020
O-RING 3,5X2,00 NBR
14
0912040103
AH.SCREW DIN0912-M 4X10
15
60030063050
OIL JET 50 05
16
59030058000
JET 100 BING(44-031/180) M4
17
59030024000
DOWEL 17 X 19 X 12
18
54630027000
DOWEL BUSHING 13,8X11X12
19
59030023000
DOWEL 6X8X11,5
20*
79230010000
CASE BUSH
21
0025060556
HH COLLAR SCREW M6X55 TX30
22
0025060656
HH COLLAR SCREW M6X65 TX30
23*
0025060706
HH COLLAR SCREW M6X70 TX30
24
77730080000
LOCA TING SCREW M8 L=25
25
58030081000
CU-SEAL RING 8 X 14 X 3
99
79230099000
GASKET KIT ENGINE 250 SX-F
