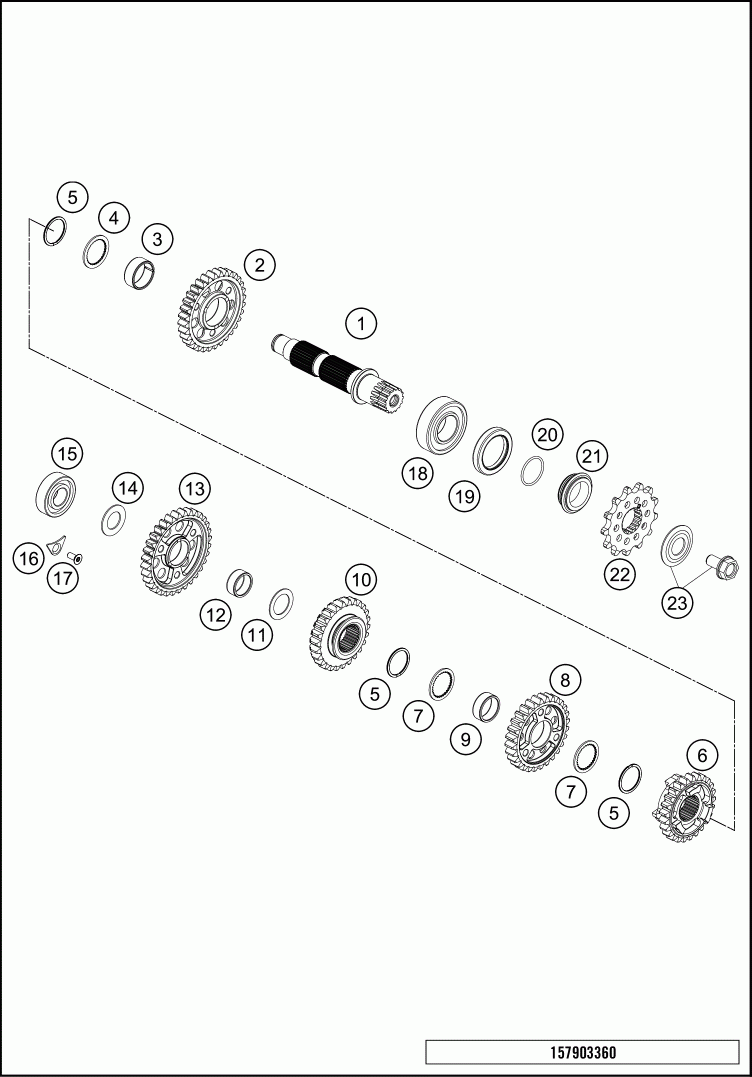

Трансмиссия 2-контрпривод

KTM 2016 250 SX-F FACTORY EDITION ENGINE
KTM
#oem кодцена
1*
79033010000
COUNTER SHAFT
2*
79033012100
IDLER GEAR 2ND GEAR
3
0405242812
NEDDLE BEAR. K24X28X11,9 DIV .
4*
79033041000
STOP DISC 25X0,8X30X30X7H
5*
0471025001
CIRCLIP XDNS-25 S02
6*
79033015300
SLIDING GEAR 5.GEAR
7*
54833043000
STOP DISC 25X0,8X30X30X7H
8*
79033013200
IDLER GEAR 3RD GEAR
9
0405222611
NEEDLE BEAR.K 22X26X10 DIVIDED
10*
79033014100
SLIDING GEAR 4TH GEAR
11
54833080000
STOP DISC 20,2X30X1
12*
50033098000
NEEDLE BEARING K20X24X10
13*
79033011100
IDLER GEAR 1TH GEAR
14
77233020000
STOP DISK 17,2X30X1,3
15
0625062035
BALL BEARING 6203 JR2 C3
16
75030085000
RET AINING PLATE F. CS BEARING
17*
0019050121S
INT . TORX FLAT HEAD M5X12 T25
18*
49030023000
CYL.ROLL BEARING NJ205
19
0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
20
0770020220
O-RING 25,12X1,78 NBR70
21*
78133014000
SPACER SLEEVE COUNTER
22*
79233029013
SPROCKET 13T
22*
79233029014
SPROCKET 14T
23
59033034044
SCREW 10.9+SPRING WASHER
