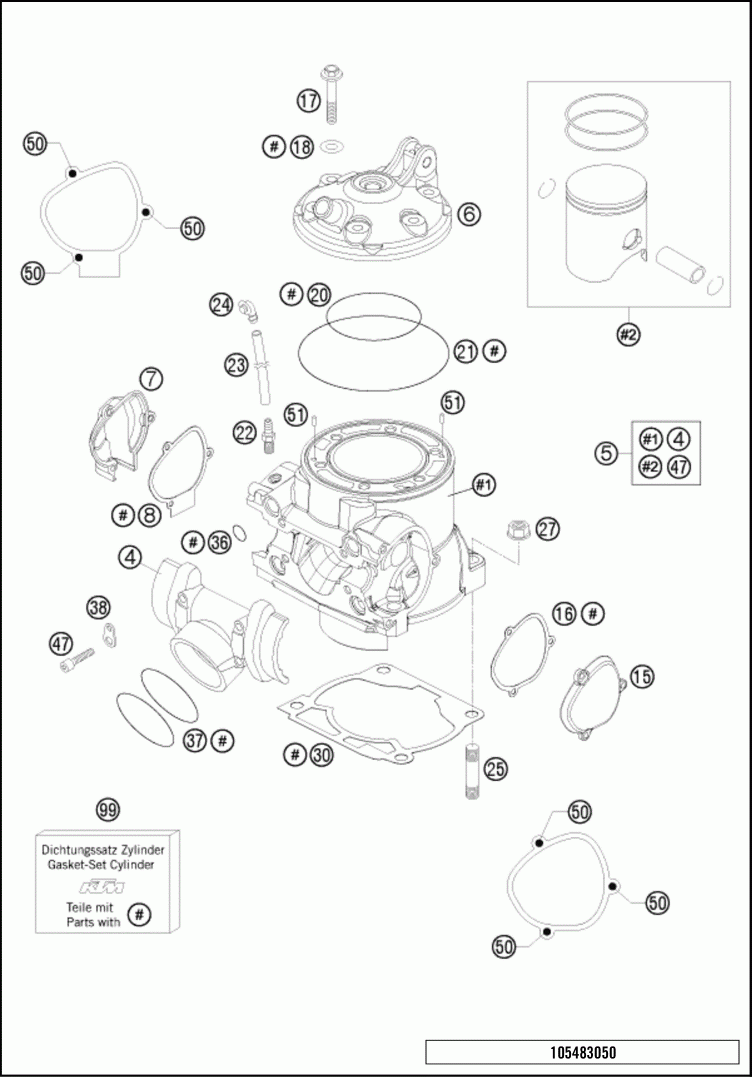

Цилиндр,головка цилиндров

KTM 2016 300 XC-W ENGINE
KTM
#oem кодцена
4
54837001200
INTERMEDIA TE FLANGE 250/300 07
5
54830338300
CYLINDER + PISTON CPL. 2012
6
54830306700
CYLINDER HEAD 300 XC/EXC
7
5483700700015
CONTROL COVER R/S 09
8
54837008000
GASKET FOR CONTROL COVER R/S
15
5483700500015
CONTROL COVER L/S 09
16
54837006000
GASKET FOR CONTROL COVER L/S
17
54830079000
COLLAR SCREW M 8X35 WS=13
18
56530080000
CU-SEAL RING 8 X 16 X 1
20
0770078020
O-RING 78,00X2,00 VIT. BLACK
21
0770105020
O-RING 105,00X2,00 07
22
58336020090
VACUUM CONNECTION M 6X1
23
50335030001
PVC-HOSE 6X9
25
0835100351
STUD DIN0835-M10X35
27
54630044000
COLLAR NUT M10 WS=13
30
54830030002
GASKET CYLINDER BASE 0,2MM 03
30
54830030004
GASKET CYLINDER BASE 0,4MM 03
30
54830030005
GASKET CYLINDER BASE 0,5MM 03
30
54830030075
GASKET CYLINDER BASE 0,75MM 03
36
0770116241
O-RING 11,3 X2,4 SILICON
37
0770440030
O-RING 44,00X3,00 VITON
38
51005074000
RET AINING PLATE
47
0912060303
AH SCREW DIN0912-M 6X30
50
58605083014
SCREW M5X14 TORX 25 07
51
0402040980
NEEDLE ROL.DIN540 2 NRB 4X9,8
99
54830097300
GASKET SET CYL. 300EX-E 08-14
