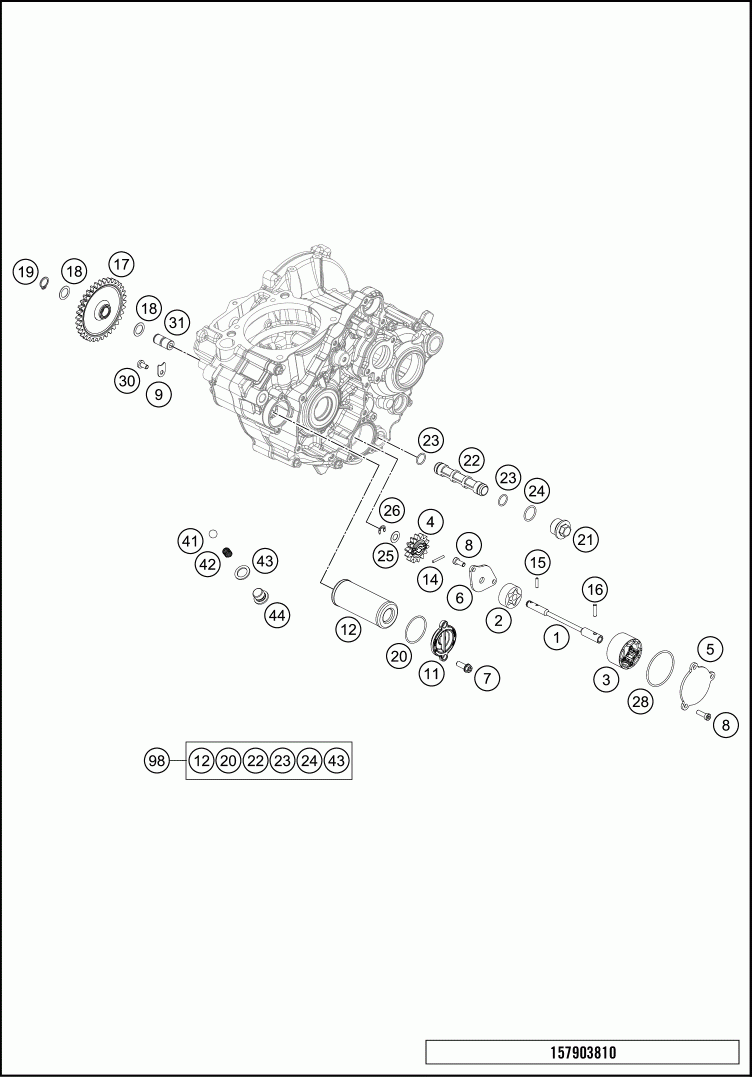

Lubrica ting system

KTM 2016 350 SX-F ENGINE
KTM
#oem кодцена
1*
79238002000
OIL PUMP SHAFT
2*
59038011112
OILPUMP ROTOR-SET 12MM CPL.
3
61238111000
ROTOR-SET CPL. 22MM
4
77038001100
OIL PUMP GEAR 14T 08
5*
79238004000
OIL PUMP COVER LEFT
6*
79238003000
OIL PUMP COVER RIGHT
7
0025060166
HH COLLAR SCREW M6X16 TX30
8*
0984050143S
CYL. SCREW DIN6912 M5X14 8.8
9
77238061050
AXIAL-CIRCLI P
11
77338041200
OIL FILTER COVER 08
12
77338005100
OIL FILTER
14
0402251980
NEEDLER OL.DIN5402 NRA 2,5X19,8
15
0402251180
NEEDLE ROLLER DIN5402 2,5X11,8
16
0402041580
NEEDLE ROLLER NRB 4X15,8 G2
17*
79238006000
OILPUMP IDLER GEAR
18
0988121805
SHIM WASHER DIN0988-12X1 8X0,50
19
0471120010
CIRCLIP DIN0471-12X1
20
07703305178
O-RING 33,05X1,78
21*
59038017100
PLUG M20X1,5 WS=13
22
59038016100
OIL SCREEN
23
07701250151
O-RING 12,5X1,5 VITON V75
24
0770020170
O-RING 17,17X1,78 GLO
25
58038007755
STOP DISK 8,1 X 15 X 0,5
26
0799060000
TAB WASHER DIN6799-RS 6,0
28
0770440020
O-RING 44,00X2,00 VITON
30
0018050103
INT . TORX OVAL HEAD M 5X10 8.8
31
77038013100
BUSHING PIN
41
0401090003
BALL DIN5401-9
42
58038023300
PRESSURE SPRING L=25MM D=1MM
43
58038022000
CU-SEAL RING DIN7603-12X18 X1,5
44*
78036024000
PLUG SCREW SAS M12X1,5
98
00050000083
OILFIL TER-GASKET SET 350 SX-F
