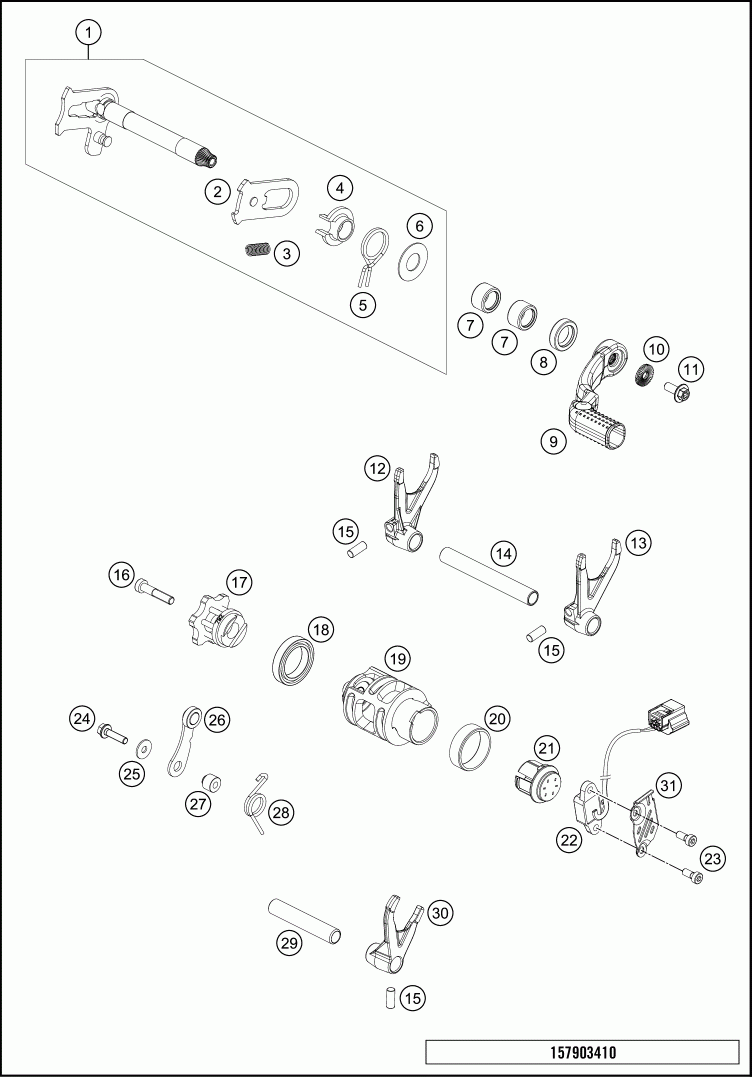

Механизм переключения

KTM 2016 350 SX-F ENGINE
KTM
#oem кодцена
1*
79234005133
SHIFT SHAFT CPL.
2*
79234008144
SLIDING PLATE CPL.
3
56534013100
TENSIONI NG SPRING 0,8MM
4
54634020000
SPRING GUIDE
5
54834014000
RETURN SPRING 03
6
54634050000
STOP DISK 14X30X1
7
54632095000
NEEDLE BEAR.HK 1412 14X20X12
8
0760142460
SHAFT SEAL RING 14X24X6 B
9*
79234031100
SHIFTING LEVER CPL.
10*
50233041500
NORDLOC K WASHER M6
11*
0024060156S
HH COLLAR SCREW M6X15 TORX30
12*
79234003000
SHIFTING FORK 1ST/3RD GEAR
13*
79234002000
SHIFTING FORK 2ND GEAR
14*
77034019000
SHIFTING MAIN L=93MM 05
15
0402061480
NEEDLE ROLLER DIN5402 6X14,8
16*
0984060302
AH SCREW DIN6912 M 6X30
17*
79234015100
SHIFT DRUM LOCA TING CPL.
18
0625618050
BALL BEARING 61805 C3
19*
79234012000
SHIFT ROLLER 5G
20*
79234012010
FRICTION BEARING CONTROLLER
21*
79234012020
MAGNET HOLDER CPL.
22*
79211023000
GEAR SENSOR
23*
0984050143S
CYL. SCREW DIN6912 M5X14 8.8
24
0025050206
HH COLLAR SCREW M5X20 TX30
25
0021050003
WASHER DIN9021-A 5,3
26*
79234024044
LOCKING LEVER CPL.
27
54634052300
SLEEVE FOR LOCKING LEVER
28*
54834023000
LOCKING LEVER SPRING 03
29
54834019000
SHIFT . RAIL MAIN SHAFT 250/300
30*
79234001000
SHIFTING FORK 4TH/5TH GEAR
31*
79211024100
GUARD PLATE MOTION SENSOR
