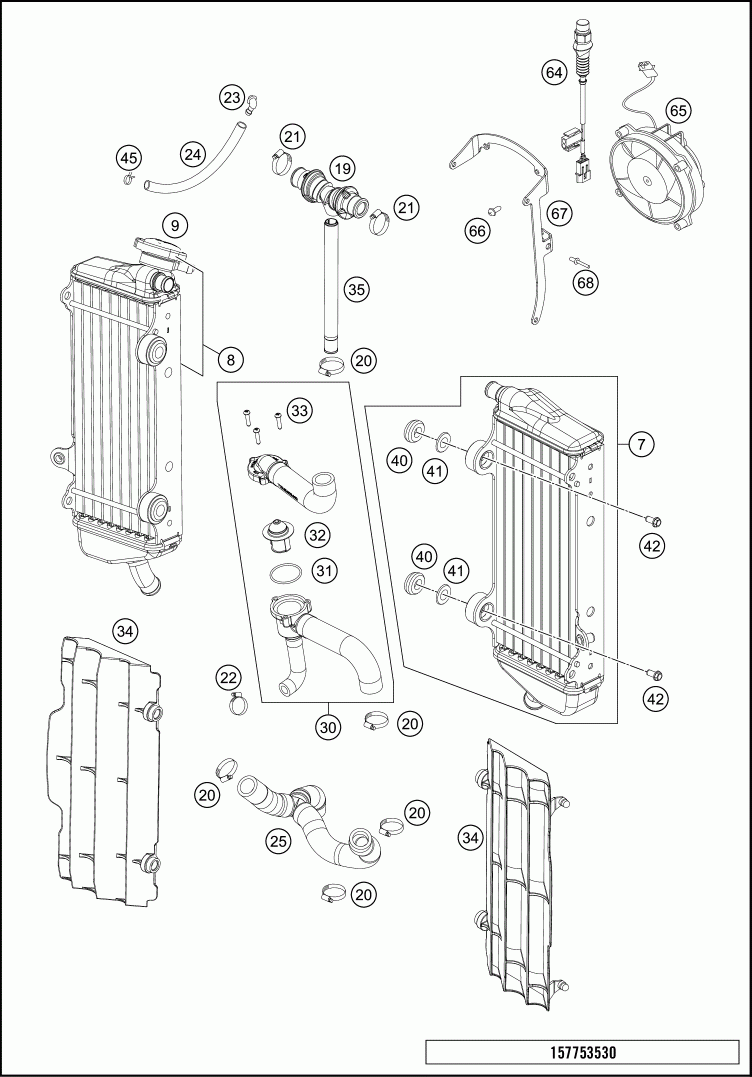

Система охлаждения

KTM 2016 350 XCF-W ENGINE
KTM
#oem кодцена
7
77035007500
RADIA TOR L/S
8
78035008400
RADIA TOR R/S
9
77335016000
RADIA TOR CAP SMALL 1,8 BAR
19
77235071044
Y-CONNECTOR CPL.
20
10001020300
HOSE CLAMP GEMI 18-29
22
58335099000
HOSE CLAMP GEMI 10-16
24
50335030001
PVC-HOSE 6X9
25
77235025033
RADIA TOR HOSE CPL.+Y -CONNECT .
30
77735126033
RADIA TOR HOSE CPL. W. THERM.
31
0770320020
O-RING 32,00X2,00
32
59435017000
THERMOST AT 70 DEGREE 04
33
0016040183
SCREW FOR PLASTIC D=4X18
34
7733503400030
RADIA TOR PROTECTION BLACK 07
34
7733503400004
RADIA TOR PROTECTION L/S+R/S SX
35
77235073000
HOSE CONNECTOR L=172,5
40
41001052000
RUBBER SLEEVE D=12MM
41
77335001000
WASHER FOR RADIA TOR 08
42
0023060123
COLLAR SCREW M6X12 TX
45
59007017000
CLAMP YDNAC 10096F (9,6MM)
64
77735045000
THERMO SWITCH 95?C M14X1,5
65
58435041000
FAN CPL. 12V LC4 2000
66
0081050181
SCREW FOR PLASTIC K50X18 T20
67
81235943000
FAN SUPPORT
68
0011400800
RIVET 4,0X 8 ALU
