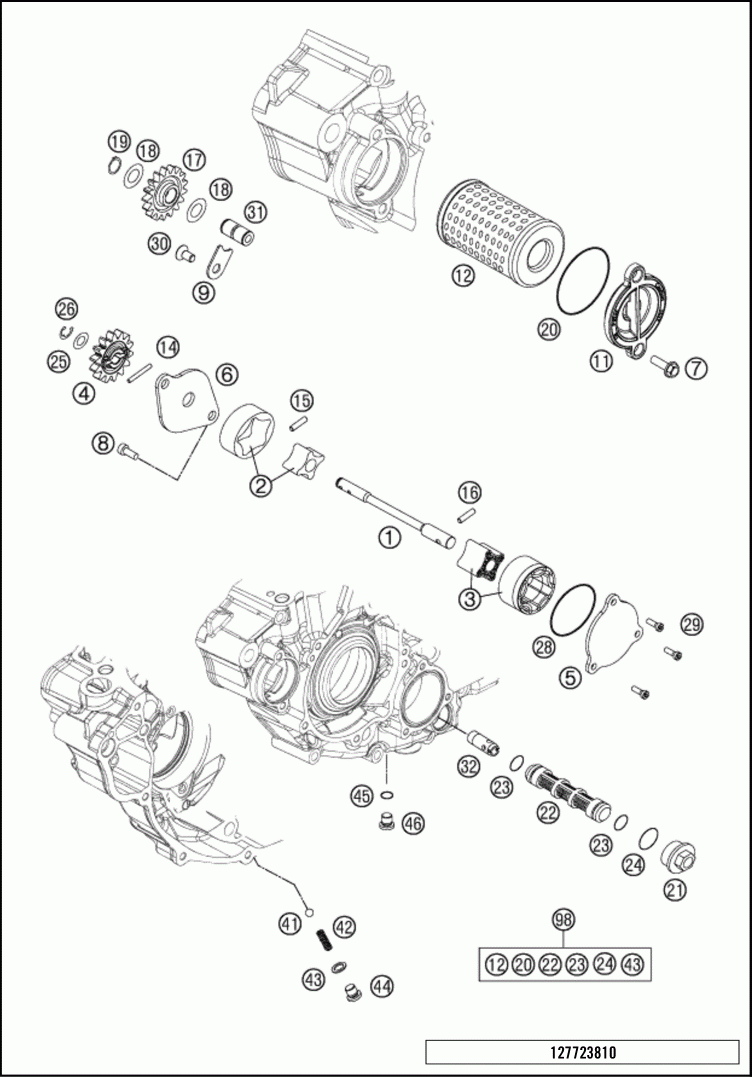

Lubrica ting system

KTM 2016 350 XCF-W ENGINE

Lubrica ting system

#

oem код

название

цена

1

OIL PUMP SHAFT

OIL PUMP SHAFT

2

OILPUMP ROTOR-SET 12MM CPL.

OILPUMP ROTOR-SET 12MM CPL.

3

ROTOR-SET CPL. 22MM

ROTOR-SET CPL. 22MM

4

OIL PUMP GEAR 14T 08

OIL PUMP GEAR 14T 08

5

OIL PUMP COVER SUCTION PUMP

OIL PUMP COVER SUCTION PUMP

6

OIL PUMP COVER R/S

OIL PUMP COVER R/S

7

HH COLLAR SCREW M6X16 TX30

HH COLLAR SCREW M6X16 TX30

8

CYLIND. SCR. DIN6912 M5X12 8.8

CYLIND. SCR. DIN6912 M5X12 8.8

9

AXIAL-CIRCLI P

AXIAL-CIRCLI P

11

OIL FILTER COVER 08

OIL FILTER COVER 08

12

OIL FILTER

OIL FILTER

14

NEEDLER OL.DIN5402 NRA 2,5X19,8

NEEDLER OL.DIN5402 NRA 2,5X19,8

15

NEEDLE ROLLER DIN5402 2,5X11,8

NEEDLE ROLLER DIN5402 2,5X11,8

16

NEEDLE ROLLER NRB 4X15,8 G2

NEEDLE ROLLER NRB 4X15,8 G2

17

OILPUMP IDLER GEAR 08

OILPUMP IDLER GEAR 08

18

SHIM WASHER DIN0988-12X1 8X0,50

SHIM WASHER DIN0988-12X1 8X0,50

19

CIRCLIP DIN0471-12X1

CIRCLIP DIN0471-12X1

20

O-RING 33,05X1,78

O-RING 33,05X1,78

21

PLUG M20X1,5 WS=13

PLUG M20X1,5 WS=13

22

OIL SCREEN

OIL SCREEN

23

O-RING 12,5X1,5 VITON V75

O-RING 12,5X1,5 VITON V75

24

O-RING 17,17X1,78 GLO

O-RING 17,17X1,78 GLO

25

STOP DISK 8,1 X 15 X 0,5

STOP DISK 8,1 X 15 X 0,5

26

TAB WASHER DIN6799-RS 6,0

TAB WASHER DIN6799-RS 6,0

28

O-RING 44,00X2,00 VITON

O-RING 44,00X2,00 VITON

29

CYL. SCREW DIN6912 M5X16 8.8

CYL. SCREW DIN6912 M5X16 8.8

30

INT . TORX OVAL HEAD M 5X10 8.8

INT . TORX OVAL HEAD M 5X10 8.8

31

BUSHING PIN

BUSHING PIN

32

OIL INT AKEPIPE

OIL INT AKEPIPE

41

BALL DIN5401-9

BALL DIN5401-9

42

PRESSURE SPRING L=25MM D=1MM

PRESSURE SPRING L=25MM D=1MM

43

CU-SEAL RING DIN7603-12X18 X1,5

CU-SEAL RING DIN7603-12X18 X1,5

44

PLUG DIN0908-M12X1, 5

PLUG DIN0908-M12X1, 5

45

O-RING 1,5x11 SILICON

O-RING 1,5x11 SILICON

46

HOLDING BOL T M14X1,5

HOLDING BOL T M14X1,5

98

OILFIL TER-GASKET SET 350 SX-F

OILFIL TER-GASKET SET 350 SX-F
