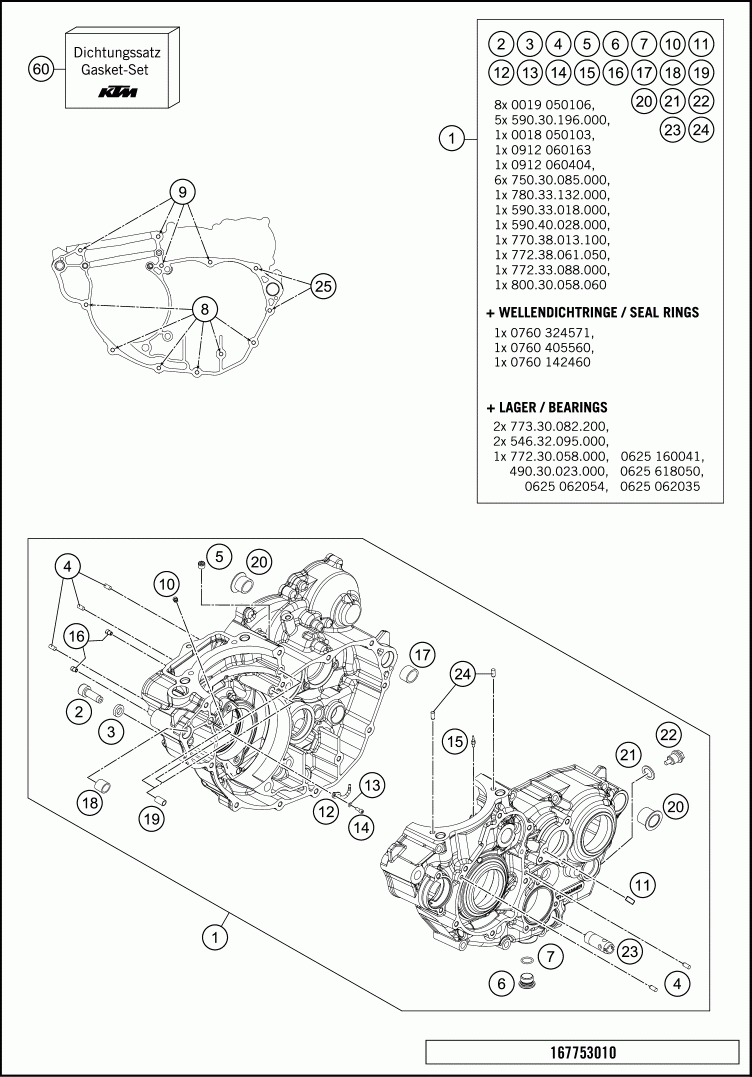

Картер двигателя

KTM 2016 350 XCF-W ENGINE
KTM
#oem кодцена
1*
77730000244
ENGINE CASE CPL. 350
2
58030080000
LOCA TING SCREW M8 L=23
3
58030081000
CU-SEAL RING 8 X 14 X 3
4
0402040980
NEEDLE ROL.DIN540 2 NRB 4X9,8
5
0906100100
PLUG DIN0906-M10X1
6
78036081000
HOLDING BOL T M14X1,5
7
0770110015
O-RING 1,5x11 SILICON
8
0025060556
HH COLLAR SCREW M6X55 TX30
9
0025060656
HH COLLAR SCREW M6X65 TX30
10
80030058060
OIL JET
11
77230066000
THROTTLE M5X10X0,5
12
77830064050
OIL JET CURVED
13
0770035020
O-RING 3,5X2,00 NBR
14
0912040103
AH.SCREW DIN0912-M 4X10
15
60030063050
OIL JET 50 05
16
59030058000
JET 100 BING(44-031/180) M4
17
59030024000
DOWEL 17 X 19 X 12
18
54630027000
DOWEL BUSHING 13,8X11X12
19
59030023000
DOWEL 6X8X11,5
20
75030010100
CASE BUSH
21
58038022000
CU-SEAL RING DIN7603-12X18 X1,5
22
58030021100
OILDRAIN PLUG W.MAG. M 12X1,5
23
77038022000
OIL INT AKEPIPE
24
0402050080
CYLINDER ROLLER ZRO 5X8
25
0025060856
HH COLLAR SCREW M6X85 TX30
60
77830099000
GASKET SET 350 SX-F
