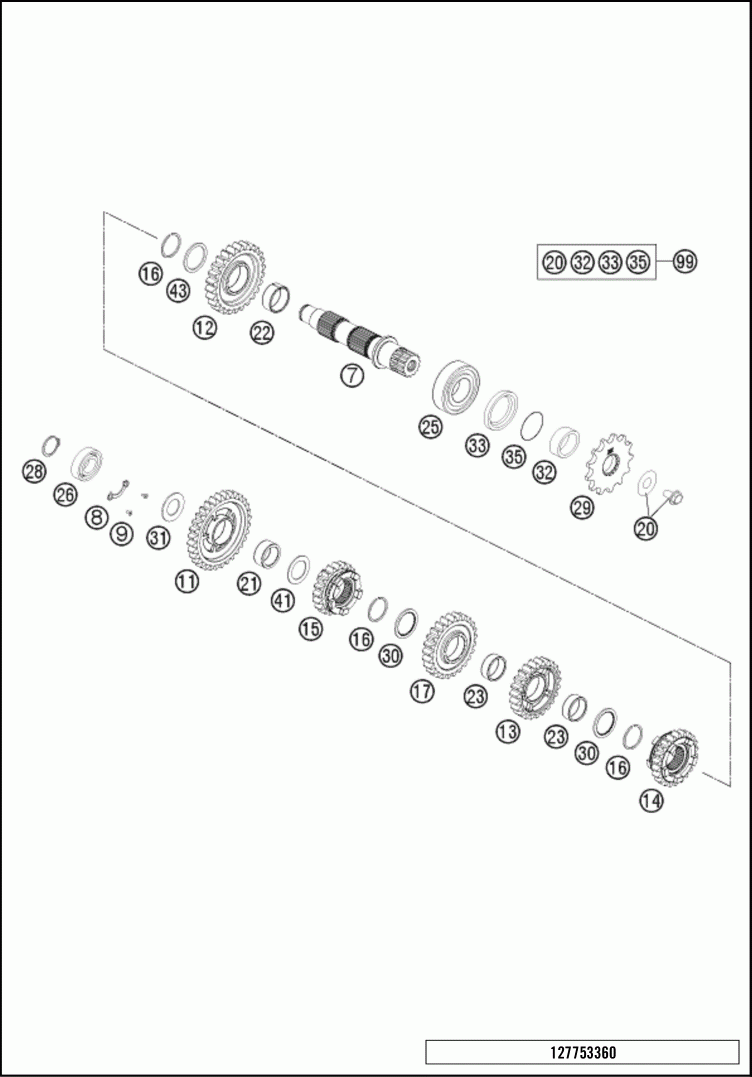

Трансмиссия 2-контрпривод

KTM 2016 350 XCF-W ENGINE
KTM
#oem кодцена
7
77233110100
COUNTER SHAFT
8
78033132000
TAB WASHER BEARING COUNT .SHAFT
9
0019050106S
INT . TORX FLAT HEAD M5X10 10.9
11
54833211100
IDLER GEAR 1. G, Z=32
12
54833212100
IDLER GEAR 2. G., Z=26
13
54833214100
IDLER GEAR 4.G., Z=23
14
54833215100
SLIDING GEAR 5.G., Z=22
15
54833216000
SLIDING GEAR 6.G., Z=20
16
0417024000
CIRCLIP WS24
17
54833213000
IDLER GEAR 3.G., Z= 25
20
59033034044
SCREW 10.9+SPRING WASHER
21
0405202612
NEEDLE BEARING K 20X26X12
22
0405242812
NEDDLE BEAR. K24X28X11,9 DIV .
23
0405222611
NEEDLE BEAR.K 22X26X10 DIVIDED
25
49030023000
CYL.ROLL BEARING NJ205
26
0625062035
BALL BEARING 6203 JR2 C3
28
0471170015
CIRCLIP DIN 0471-17X1, 5
29
79233029013
FRONT SPROCKET 13-T
29
79233029014
FRONT SPROCKET 14-T
30
54833043000
STOP DISC 25X0,8X30X30X7H
31
77233020000
STOP DISK 17,2X30X1,3
32
54633014100
SPACER BUSHING 12MM
33
0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
35
0770020220
O-RING 25,12X1,78 NBR70
41
54833080000
STOP DISC 20,2X30X1
43
54833044000
STOP DISC 25X31X1,5
99
00050000941
COUNTER SHAFT REP .KIT 4 STROKE
