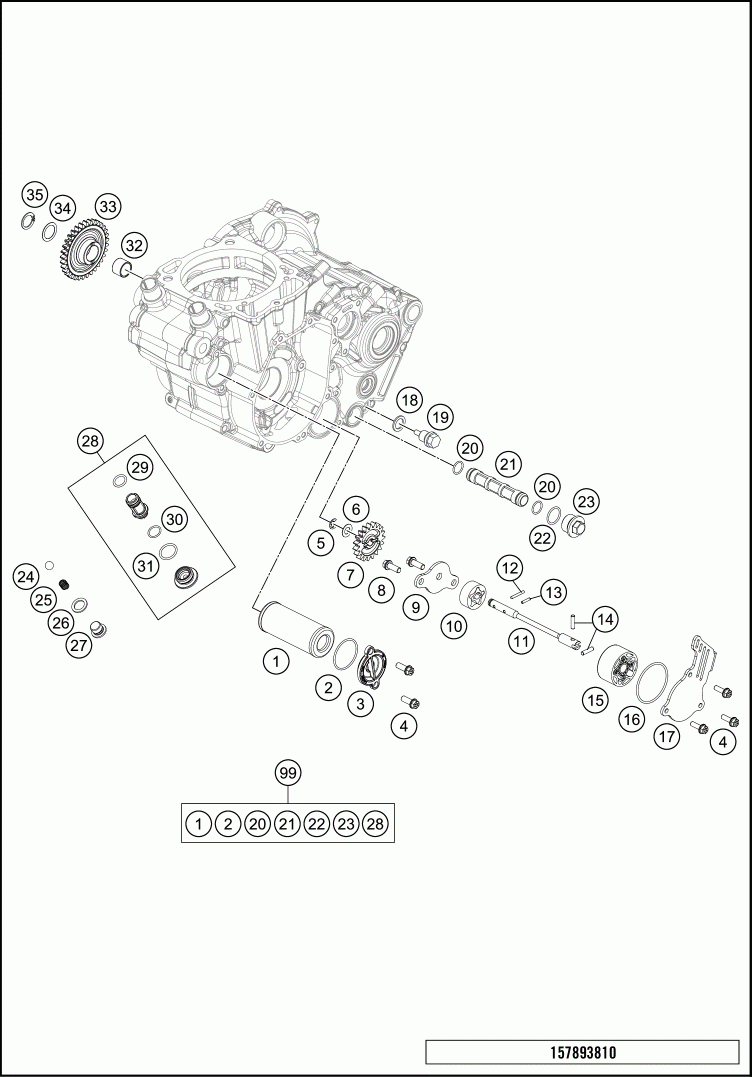

Lubrica ting system

KTM 2016 450 SX-F ENGINE
KTM
#oem кодцена
1*
77338005100
OIL FILTER
2*
07703305178
O-RING 33,05X1,78
3*
77338041200
OIL FILTER COVER 08
4
0025050166
HH COLLAR SCREW M5X16 TX30
5
0799060000
TAB WASHER DIN6799-RS 6,0
6
58038007755
STOP DISK 8,1 X 15 X 0,5
7*
79438001019
OIL PUMP SPROCKET 19T
8
0025060166S
HH COLLAR SCREW M6X16 ISA 30
9*
79438003000
Крышка насоса
10*
59038011112
OILPUMP ROTOR-SET 12MM CPL.
11*
79438002000
OIL PUMP SHAFT
12
0402251980
NEEDLER OL.DIN5402 NRA 2,5X19,8
13
0402251180
NEEDLE ROLLER DIN5402 2,5X11,8
14
0402041580
NEEDLE ROLLER NRB 4X15,8 G2
15
61238011100
ROTOR SET 22MM
16
0770440020
O-RING 44,00X2,00 VITON
17*
79438004100
Крышка насоса
18
58038022000
CU-SEAL RING DIN7603-12X18 X1,5
19
58030021100
OILDRAIN PLUG W.MAG. M 12X1,5
20
07701250151
O-RING 12,5X1,5 VITON V75
21
59038016100
OIL SCREEN
22
0770020170
O-RING 17,17X1,78 GLO
23*
59038017100
PLUG M20X1,5 WS=13
24
0401090003
BALL DIN5401-9
25*
79438026000
PRESSURE SPRING
26
58038022000
CU-SEAL RING DIN7603-12X18 X1,5
27
78036024000
PLUG SCREW SAS M12X1,5
28
78138015001
OIL SCREEN CPL.
29
0770012021
O-RING 12X2 VITON GREEN
30
0770125015
O-RING 12,5X1,5 NBR
31
0770170200
O-RING 17,00X2,00
32*
79438001010
NEEDLE BEARING INNER RING
33*
79438001033
IDLER WHEEL 33T
34*
0988162205
THRUST WASH. DIN0988-16X2 2X0,5
35*
0471150010
CIRCLIP DIN0471-15X1
99
79438015010
OILFIL TER SERVICEKIT SX-F
