Механизм переключения

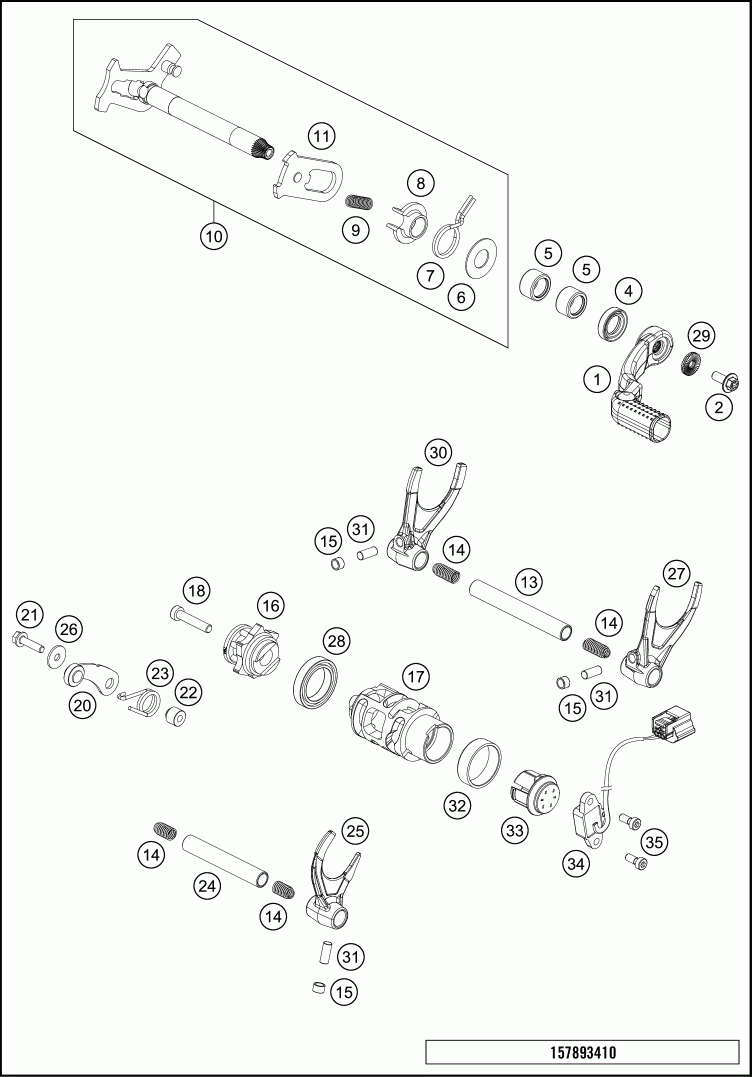

KTM 2016 450 SX-F ENGINE
KTM
#oem кодцена
1*
79434031100
SHIFTING LEVER CPL.
2*
0024060156S
HH COLLAR SCREW M6X15 TORX30
4
0760142460
SHAFT SEAL RING 14X24X6 B
5
54632095000
NEEDLE BEAR.HK 1412 14X20X12
6
54634050000
STOP DISK 14X30X1
8
54634020000
SPRING GUIDE
9
56534013100
TENSIONI NG SPRING 0,8MM
10*
79434005233
SHIFT SHAFT CPL.
11*
54634108044
SLIDING PLATE
13*
79434020000
GEAR SHIFT RAIL 11,8X91,1MM
14
58038023200
PRESSURE SPRING 0,9MM
15
50334018100
SHIFTING ROLLER 6X8X5,2
16*
79434015000
SELECTOR INTERLOCK MECHAN. CPL
17*
79434112100
SHIFTING CONTROLLER 5 GEAR
18
0912060303
% AH SCREW DIN6912 M6X30 8.8
20
78134024044
LOCKING LEVER CPL.
21
0025050206
HH COLLAR SCREW M5X20 TX30
22
54634052300
SLEEVE FOR LOCKING LEVER
23
60034023000
ARRESTING LEVER SPRING 03
24*
79434019000
GEAR SHIFT RAIL 11,8X74,5MM
25*
79434001100
SHIFTING FORK 5TH-6TH GEAR
26
0021050003
WASHER DIN9021-A 5,3
27*
79434002100
SHIFTING FORK 2ND-4TH GEAR
28
0625618050
BALL BEARING 61805 C3
29
50233041500
NORDLOC K WASHER M6
30*
79434003100
SHIFTING FORK 1ST-3RD GEAR
31*
0402061480
NEEDLE ROLLER DIN5402 6X14,8
32*
79234012010
FRICTION BEARING CONTROLLER
33*
79234012020
MAGNET HOLDER CPL.
34*
79211023000
GEAR SENSOR
35*
0984050123S
CYLIND. SCR. DIN6912 M5X12 8.8
