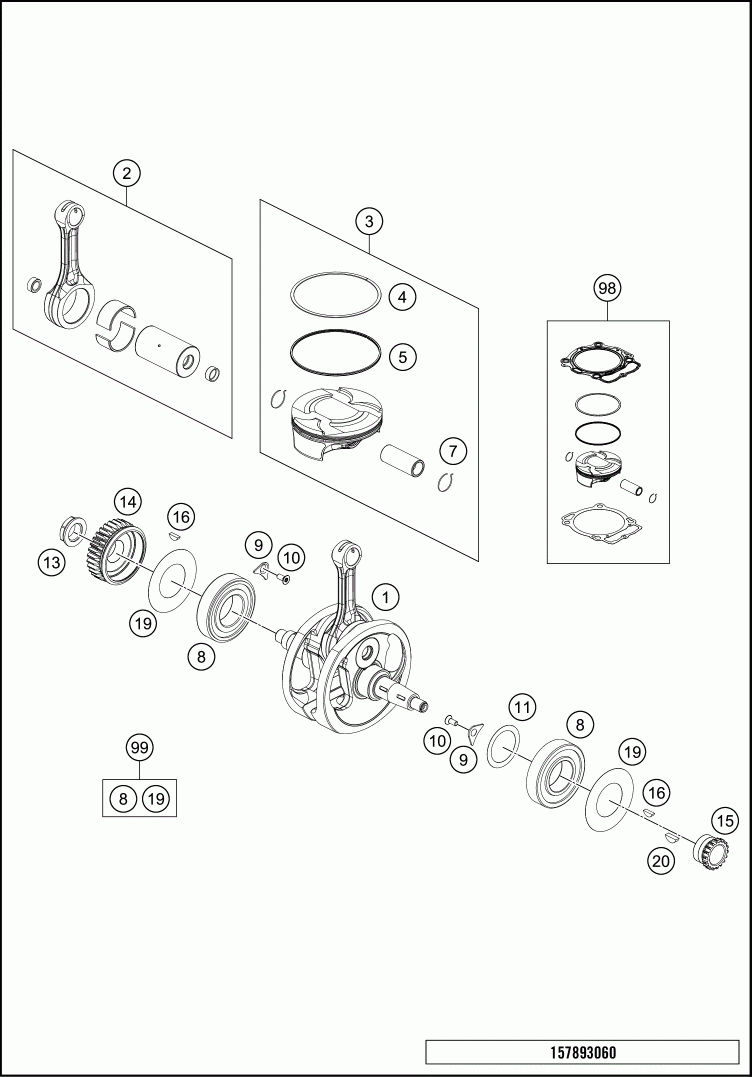

Crankshaft , piston

KTM 2016 450 SX-F ENGINE
KTM
#oem кодцена
1*
79430018200
CRANKSHA FT CPL.
2*
79430015144
CON. ROD. REP . KIT
4
78930030000
COMPRESSI ON RING
5
78930032000
OIL SCRAPER RING
7
78930074000
СТОПОРНОЕ КОЛЬЦО
8*
79430082000
CYLINDER ROLLER BEARING NJ207
9*
75030085000
RET AINING PLATE F. CS BEARING
10*
0019050121S
INT . TORX FLAT HEAD M5X12 T25
11*
56530081000
SHIM WASHER 36X48X0,10
11*
56530081100
SHIM WASHER 36X48X0,15
11*
56530081200
SHIM WASHER 36X48X0,20 STEEL
11*
56530081300
SHIM WASHER 36X48X0,30
13
78030029200
NUT PRIMARY WHEEL M20X1,5
14*
79432023031
PRIMARY GEAR 31T
15
78036014300
TIMING GEAR 18T.
16
0888030037
WOODRUFF KEY DIN6888-3X3,7
19*
79430084000
BEARING SEAL
20
0888030050
Шпонка 3x5x13
99
00050002315
CRANKSHA FT REP .KIT 450 SX-F 15
