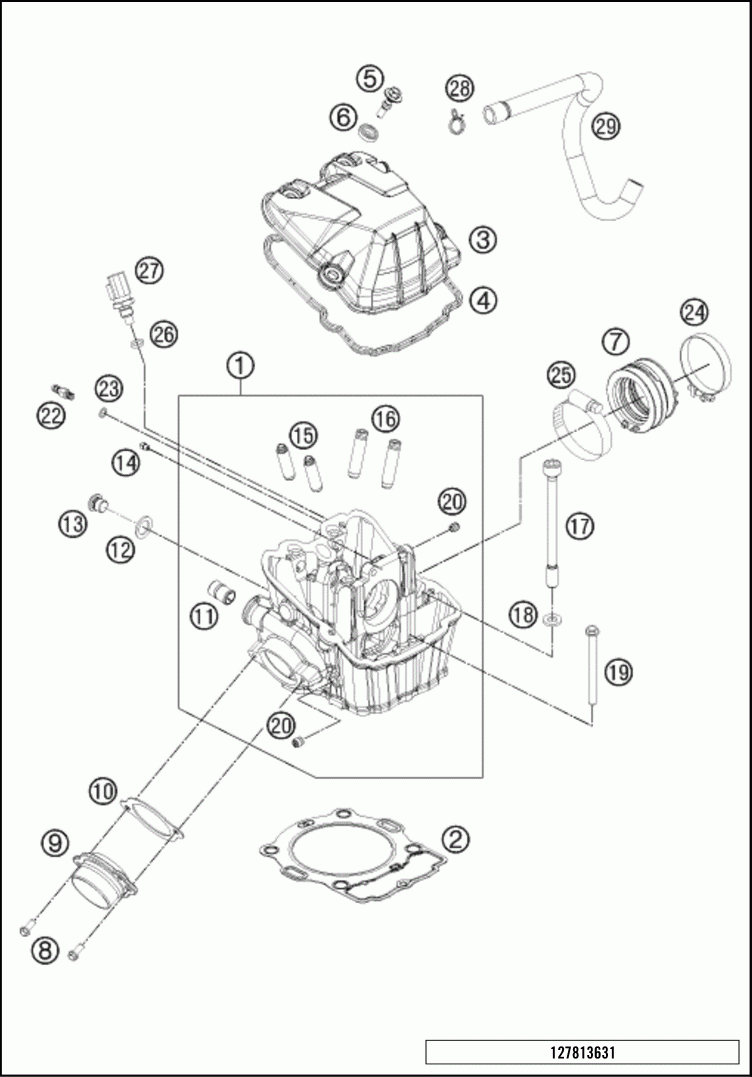

ГОЛОВКА ЦИЛИНДРА

KTM 2016 500 EXC SIXDAYS ENGINE
KTM
#oem кодцена
1
78136120044
CYLINDERHEAD CPL.
2
78930036010
CYLINDER HEAD GASKET S=1.0
3
7803605200033
VALVE COVER BLACK MATT
4
78036053100
VALVE COVER GASKET
5
78036054100
VALVE COVER SCREW
6
75036052010
DECOUPL ING ELEMENT 07
7
77236044000
CONNECT ION RUBBER EFI
8
0025060166S
HH COLLAR SCREW M6X16 ISA 30
9
78136139100
EXHAUST FLANGE
10
79536041000
EXHAUST FLANGE GASKET
11
58030010200
SCREW IN NOZZLE M20X1,5
12
58038022000
CU-SEAL RING DIN7603-12X18 X1,5
13
78036024000
PLUG SCREW SAS M12X1,5
14
60030063070
OIL JET 70 M5
15
77136026001
VALVE GUIDE OUTLET
16
78136025001
VALVE GUIDE INT AKE
17
78630044000
CYL. HEAD SCREW M10X1,25 L=138
18
77336089010
WASHER 19X10,5X2,5
19
0025060856
HH COLLAR SCREW M6X85 TX30
20
59030296000
Резьбовая пробка
22
60036023100
VACUUM CONECTION M6/0,5MM
23
0603061001
CU-SEAL RING DIN7603-6X10X 1
24
61036047000
HOSE CLAMP GEMI 63MM 05
25
77236048000
HOSE CLAMP GEMI 58MM
26
0770100020
O-RING 10,00X2,00 SILCONE
27
60011252000
TEMPERA T.-SENSOR WATER LC8 02
28
58431082300
CLAMP YDNAC 10173 (18MM)
29
78130087000
ENGINE BREA THER TUBE
