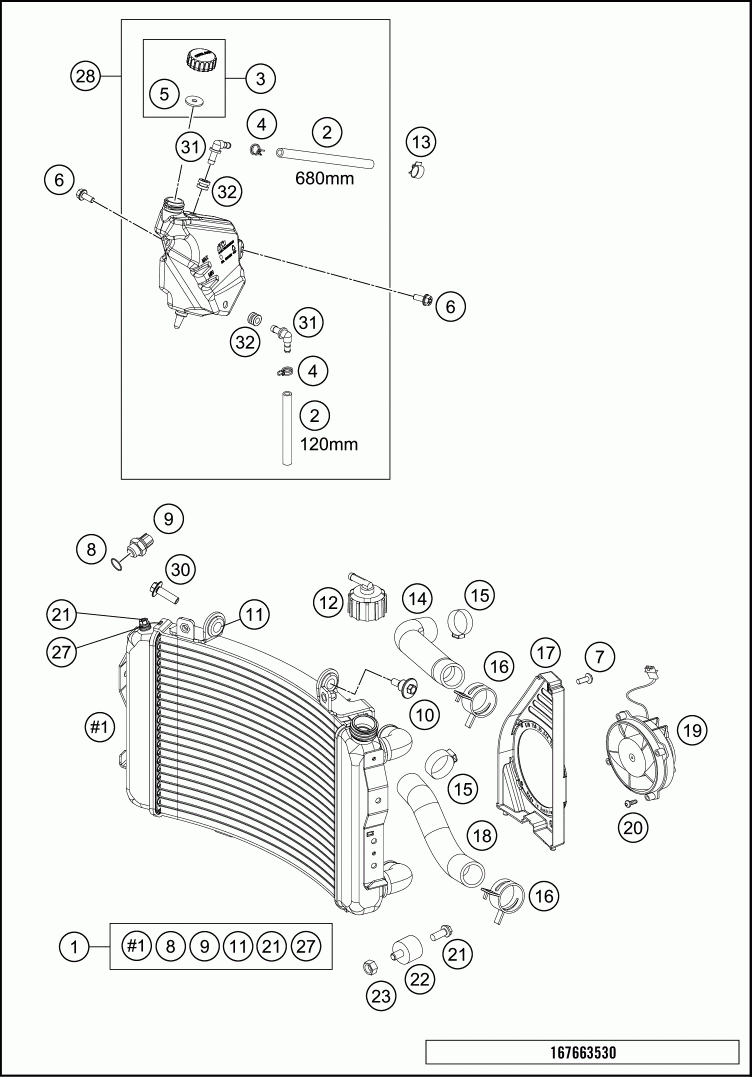

Система охлаждения

KTM 2016 690 DUKE WHITE ENGINE
KTM
#oem кодцена
1
76035010000
RADIA TOR VW2053
2
60035067001
HOSE 6X10 EPDM 03
3
60335066044
PLUG F. EXPANSION TANK
4
58007117000
YDNAC-C LAMP 10107 10MM
5
60335066010
RUBBER GASKET
6
0025050126
HH COLLAR SCREW M5X12 TX30
7
0024060106
HH COLLAR SCREW M6X10 TX30
8
0770017015
O-RING 17X1,5 NB75
10
60035001000
SPECIAL SCREW M6X21 WS=8
11
41001052000
RUBBER SLEEVE D=12MM
12
62535009000
RADIA TOR CAP 1,4 BAR
13
57013072100
WIRING HOLDER 16MM
14
75035027000
RADIA TOR HOSE 07
15
00050325706
VARIABLE ONE-EAR CLAMP 32,5MM
17
75035044000
FAN COWL 07
18
75035026000
RADIA TOR HOSE 07
19
58435041000
FAN CPL. 12V LC4 2000
20
0081050161
EJOT PT SCREW K50X16 1451
21
0025060106
HH COLLAR SCREW M6X10 TX30
22
43205062100
RUBBER GROMMET 20X15-M6X10 (1)
23
0985060003
SELF LOCK. NUT DIN0985-M 6
27
60035048000
ALU-GASKET 6X10X1.5
28
76035065100
EXPANSION TANK
30
0024060206
HH COLLAR SCREW M6X20 TX30
31
60035068000
ANGLE CONNECTION EXPANS. TANK
32
60035069000
RUBBER GROMMET 6X9X13MM 04
