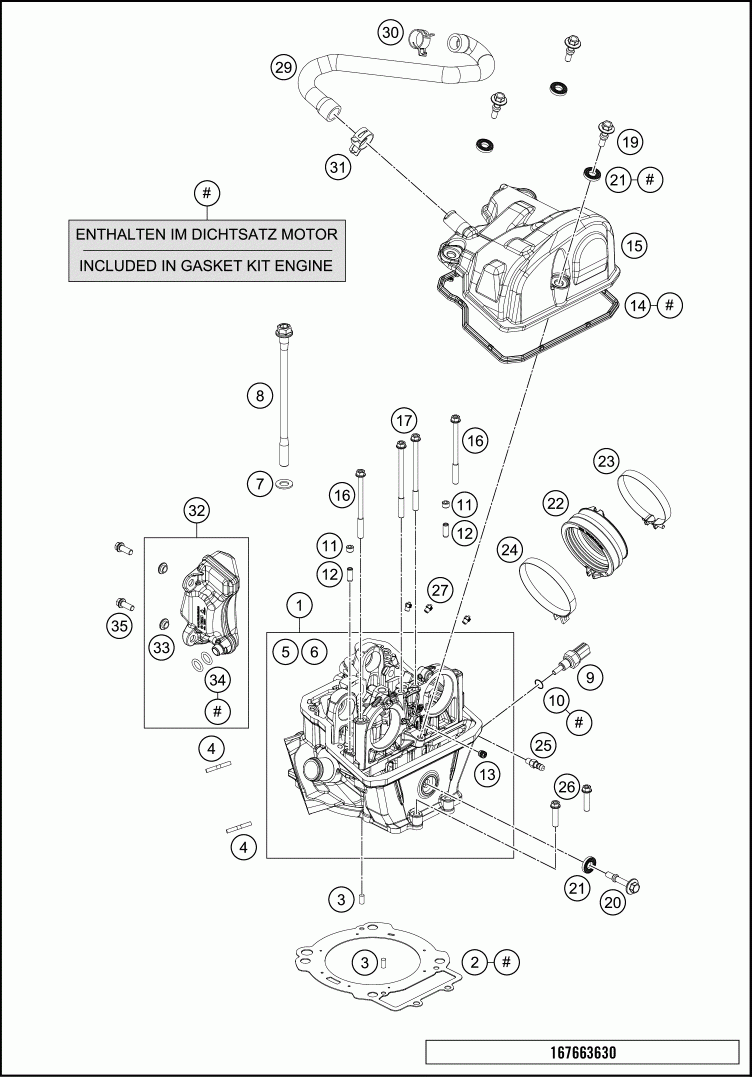

ГОЛОВКА ЦИЛИНДРА

KTM 2016 690 DUKE WHITE ENGINE
KTM
#oem кодцена
1
7663602004452
CYLINDER HEAD CPL.
2
76630036000
CYLINDER HEAD GASKET ?105
3
0474050100
GROOVED PIN DIN1474 5X10
4
0835080256
STUD DIN0835-M 8X25 10.9
5
76636026001
VALVE GUIDE 6MM
6
61236025001
VALVE GIUDE INT AKE 6MM
7
60036078050
SHIM 10,2X19X1,5MM 05
8
75036079000
CYLINDERHEAD SCREW M10X168WS14
9
79435047000
TEMPERA TUR SENSOR WATER
10
0770100020
O-RING 10,00X2,00 SILCONE
11
0913080060S
THREAD PIN DIN913-M8X6 PRE30
12
0979060160
PIN DIN7979 6X16
13
59030296000
Резьбовая пробка
14
76636053000
VALVE COVER GASKET
15
7663605200033
Крышка клапанная
16
0025060806
HH COLLAR SCREW M6X80 TX30
17
0025060906
HH COLLAR SCREW M6X90 TX30
19
78036054100
VALVE COVER SCREW
20
75036055000
VALVE COVER SCREW 05
21
75036052010
DECOUPL ING ELEMENT 07
22
76636044000
RUBBER SLEEVE INT AKE FLANGE
23
75036047000
HOSE CLAMP GEMI 70MM
24
61336048000
HOSE CLAMP GEMI 75
25
60036023200
VACUUM CONNECTION M6/0.75MM
26
0025060256
HH COLLAR SCREW M6X25 TX30
27
60030063050
OIL JET 50 05
29
76030084100
ENGINE EXHAUST CYLINDERHEAD
30
00049200121
CLAMP STD DN20
31
00049210121
CLAMP 21X12 STD-DES
32
76636065000
RESONA TOR ASSY.
33
69004060150
BUSHING CHAIN GUARD 08
34
0770116241
O-RING 11,3 X2,4 SILICON
35
0025060126
HH COLLAR SCREW M6X12 TX30
