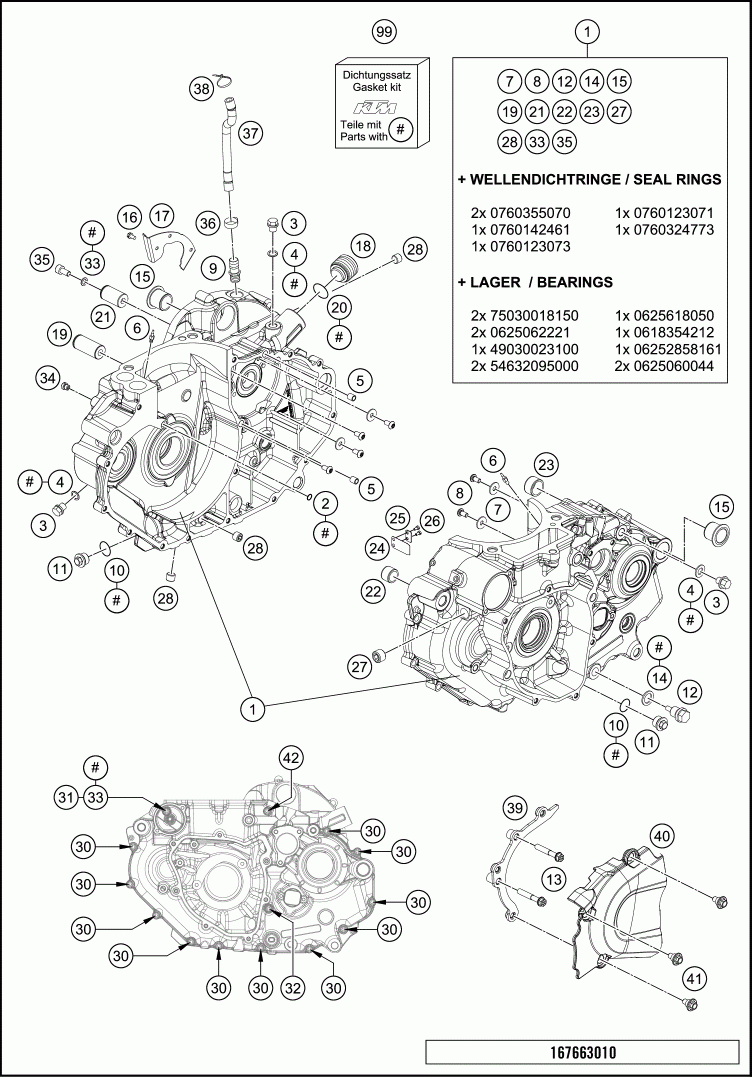

Картер двигателя

KTM 2016 690 DUKE WHITE ENGINE

Картер двигателя

#

oem код

название

цена

1

ENGINE CASE CPL.

ENGINE CASE CPL.

2

O-RING 6,00X1,78

O-RING 6,00X1,78

3

PLUG DIN0910-M 10X1

PLUG DIN0910-M 10X1

4

COPPER GASKET DIN7603-10X14X1

COPPER GASKET DIN7603-10X14X1

5

DOWEL 6X8X11,5

DOWEL 6X8X11,5

6

OIL JET 50 M6X0,75 WS8 05

OIL JET 50 M6X0,75 WS8 05

7

WASHER DIN9021-A 5,3

WASHER DIN9021-A 5,3

8

PAN HEAD SCREW M5X10 TX25

PAN HEAD SCREW M5X10 TX25

9

VENTILA TION CONNECTOR M16X1,5

VENTILA TION CONNECTOR M16X1,5

10

O-RING 17,17X1,78 GLO

O-RING 17,17X1,78 GLO

11

PLUG M20X1,5 WS=13

PLUG M20X1,5 WS=13

12

OILDRAIN PLUG W.MAG. M 12X1,5

OILDRAIN PLUG W.MAG. M 12X1,5

13

HH COLLAR SCREW M6X35 TX30

HH COLLAR SCREW M6X35 TX30

14

CU-SEAL RING DIN7603-12X18 X1,5

CU-SEAL RING DIN7603-12X18 X1,5

15

CASE BUSH

CASE BUSH

16

AH SCREW DIN7984 M5X10 A2

AH SCREW DIN7984 M5X10 A2

17

Крышка

Крышка

18

LOCK PIECE

LOCK PIECE

19

BUSHING PIN

BUSHING PIN

20

O-RING 18,00X2,00 NBR 70

O-RING 18,00X2,00 NBR 70

21

BUSHING PIN

BUSHING PIN

22

DOWEL 17 X 13 X 12

DOWEL 17 X 13 X 12

23

DOWEL 21X12 03

DOWEL 21X12 03

24

MEMBRANE 07

MEMBRANE 07

25

STOP SHEET MEMBRANE 07

STOP SHEET MEMBRANE 07

26

CYLIND.S CREW M3X8 ISO 14580 SS

CYLIND.S CREW M3X8 ISO 14580 SS

27

PLUG SCREW DIN0906 - M14X1,5

PLUG SCREW DIN0906 - M14X1,5

28

PLUG DIN0906-M10X1

PLUG DIN0906-M10X1

30

HH COLLAR SCREW M6X30 TX30

HH COLLAR SCREW M6X30 TX30

31

HH COLLAR SCREW M6X25 TX30

HH COLLAR SCREW M6X25 TX30

32

HH COLLAR SCREW M6X70 TX30

HH COLLAR SCREW M6X70 TX30

33

CU-SEAL RING DIN7603-6X10X 1

CU-SEAL RING DIN7603-6X10X 1

34

JET 160

JET 160

35

AH SCREW DIN0912-M 6X12

AH SCREW DIN0912-M 6X12

36

CLAMP STD DN22

CLAMP STD DN22

37

ENGINE EXHAUST RETURN FLOW

ENGINE EXHAUST RETURN FLOW

38

CABLE TIE 200/3,6MM BLACK

CABLE TIE 200/3,6MM BLACK

39

SECURING GUIDE 07

SECURING GUIDE 07

40

CHAIN GUARD

CHAIN GUARD

41

SPECIAL SCREW M6X12,5 WS=8

SPECIAL SCREW M6X12,5 WS=8

42

HH COLLAR SCREW M6X80 TX30

HH COLLAR SCREW M6X80 TX30

99

GASKET KIT 690 DUKE

GASKET KIT 690 DUKE
