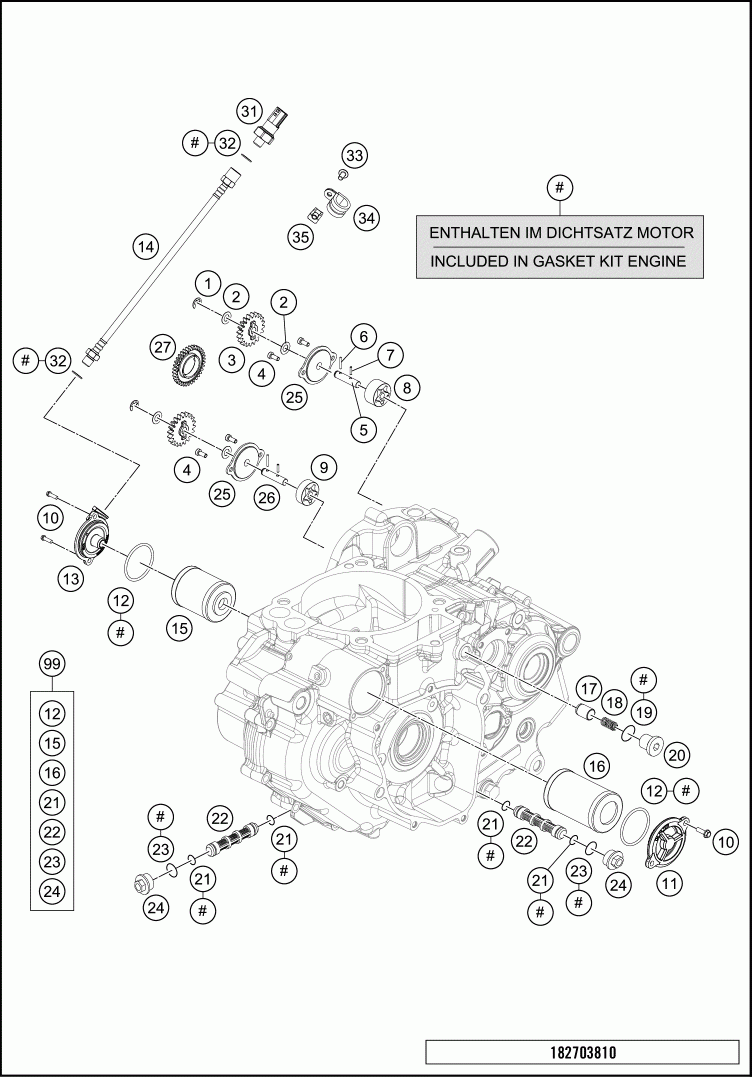

Масляная система

KTM 2020 690 ENDURO R ENGINE
KTM
#oem кодцена
1
0799060000
TAB WASHER DIN6799-RS 6,0
10
0025050166
HH collar screw M5x16 TX30
11
75038041200
Крышка масленного фильтра
12
07700390261
O-RING 39,34X2,62
13
76038041000
OILFILTER COVER
14
76538034000
OIL PIPE
15
75038046100
OIL FILTER SHORT
16
58038005100
OIL FILTER LONG
17
58038028000
VALVE PISTON D=10MM
18
58538023000
OIL PRES.SPRING 5 BAR RED 2001
19
58038022000
CU-SEAL RING DIN7603-12X18X1,5
2
58038007755
STOP DISK 8,1 X 15 X 0,5
20
0908120153
threaded plug DIN 908 M12x1.5
21
07701250151
O-RING 12,5X1,5 VITON V75
22
59038016100
OIL SCREEN
23
0770180020
o-ring 18.00x2.00 NBR70
24
59038017100
PLUG M20X1,5 WS=13
25
75038003100
Крышка насоса
26
75038004000
OIL PUMP SHAFT 07
27
75032050001
OIL PUMP DRIVE WHEEL 07
3
75038001020
OIL PUMP GEAR 20-T
32
0603100141
sealing ring DIN 7603 10x14x1
33
58605083014
SCREW M5X14 TORX 25 07
34
49007439000
CLAMP RSGU 15/12
35
69008021080
clip nut M5
4
073801050105S
Oval head screw ISR M5x10-10.9 ISR25
5
75038002000
OIL PUMP SHAFT 07
6
0402251980
NEEDLEROL.DIN5402 NRA 2,5X19,8
7
0402251180
NEEDLE ROLLER DIN5402 2,5X11,8
8
77038011100
OIL PUMP ROTOR COMPL. 15MM
9
59038011110
OIL PUMP ROTOR COMPL. 10MM
99
75038046110
OILFILTER SERVICEKIT 690 12-14
