Испаряющая канистра Оригинальные запчасти для мотоциклов KTM 2019 1290 SUPER DUKE GT BLACK CHASSIS (2019)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

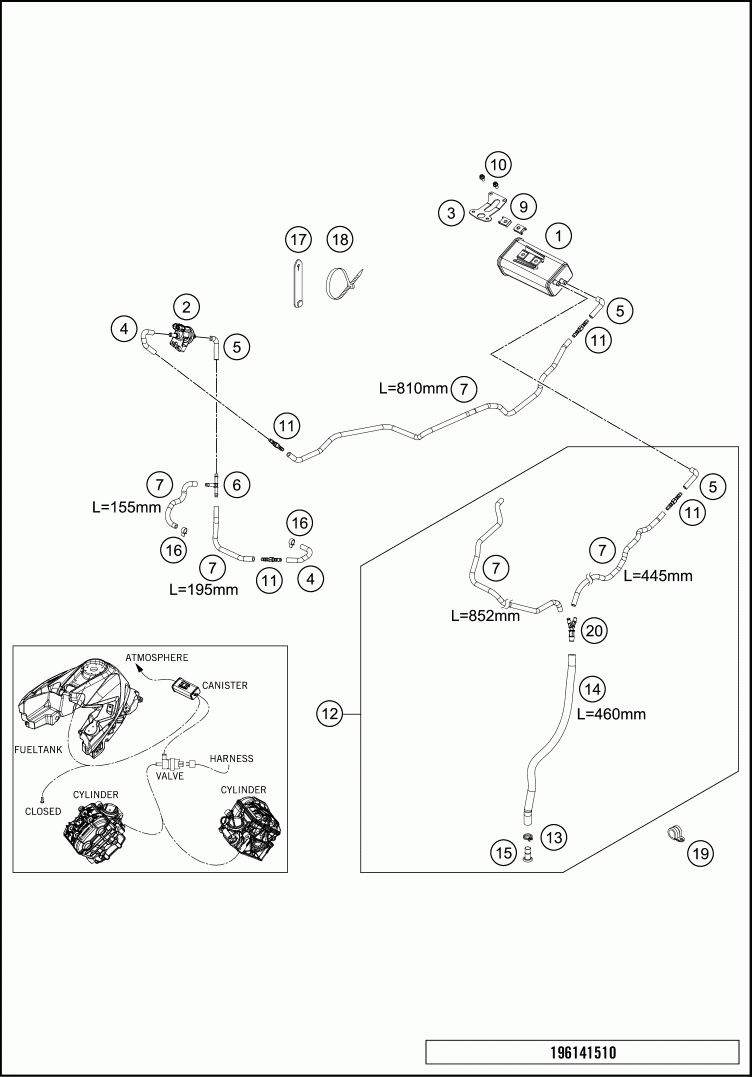

Испаряющая канистра

KTM 2019 1290 SUPER DUKE GT BLACK CHASSIS

Испаряющая канистра

#

oem код

название

цена

1

CARBON CANISTER

CARBON CANISTER

10

HH collar screw M6x12 TX30

HH collar screw M6x12 TX30

11

HOSE CONNECTION STRAIGHT

HOSE CONNECTION STRAIGHT

12

TANK VENT. TUBE - AKF

TANK VENT. TUBE - AKF

14

HOSE EPA D=10/16 L=2000MM

HOSE EPA D=10/16 L=2000MM

15

PLUG D=10

PLUG D=10

16

CLAMP YDNAC 10096F (9,6MM)

CLAMP YDNAC 10096F (9,6MM)

17

RUBBER CABLE TIE 60MM 03

RUBBER CABLE TIE 60MM 03

17

RUBBER CABLE TIE 75MM 03

RUBBER CABLE TIE 75MM 03

18

CABLE TIE 140/2,5MM BLACK

CABLE TIE 140/2,5MM BLACK

19

CABLE CLAMP D=16

CABLE CLAMP D=16

2

EVAP valve

EVAP valve

20

Y-CONNECTOR YS 6-10-6

Y-CONNECTOR YS 6-10-6

3

BRACKET FOR CARBON CANISTER

BRACKET FOR CARBON CANISTER

4

HOSE PURGE VALVE

HOSE PURGE VALVE

5

PREFORMED HOSE 6X10 FPM

PREFORMED HOSE 6X10 FPM

6*

T-CONNECTOR TS-6 03

T-CONNECTOR TS-6 03

7

HOSE EPA D=6/10 L=2000MM

HOSE EPA D=6/10 L=2000MM

9

clip nut M6

clip nut M6
