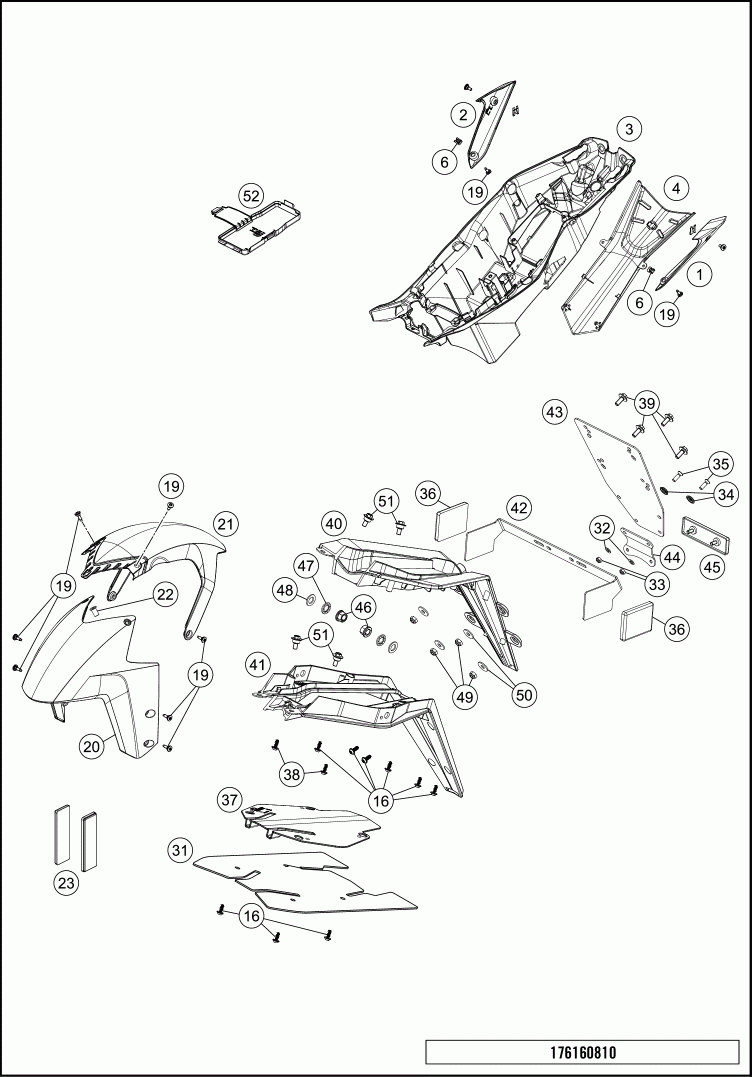

Обтекатель , крылья

KTM 2019 1290 SUPER DUKE R BLACK CHASSIS
KTM
#oem кодцена
1*
61608041000CB
side cover left
16
0081050121
EJOT PT screw K50x12
19
69008021060
special screw M5x17
2*
61608042000CB
side cover right
20
61308010000CB
Fender
21
6130801100033
REAR FENDER BLACK
22
60008008050
blind plug nut M5 WN16A
3
61608018000
Tail end lower part
32
0125050003
WASHER DIN0125-A 5,3
33
0985050003
SELF LOCKING NUT DIN0985-M 5
34
40006006000
WASHER 6MM
35
0966050163
OVAL HEAD SCREW DIN0966-M 5X16
36
16512180100
SIDE REFLECTOR RED REAR ONLY FOR US
37
61308023010
SPLASH PROTECTION
38
0081050181
SCREW FOR PLASTIC K50X18 T20
39
0024060156
HH collar screw M6x15 TX30
4
6130804000033
REAR FAIRING LOWER PART BLACK
40
61308022000
NUMBER PLATE CARRIER UPP. PART
41
61308023000
NUMBER PLATE CARRIER LOW. PART
42
62512081100
BRACKET SIDE REFLECTOR ONLY FOR US
43
60012081300
Licence fitting
44
58412080050
BRACKET FOR REFLECTOR
45
58412080400
Rear reflector red
46
58414030000
HH COLLAR NUT M10X1,25 WS=13
47
0797100003
LOCK WASHER DIN6797-J10,5 ZI
48
0433100003
WASHER 18x10,5x1,6
49
0985060003
SELF LOCK. NUT DIN0985-M 6
50
0021060003
WASHER DIN9021-A 6,4
51
83008100015
SPECIAL SCREW M6X15X5,5
52
61612054100
storage compartment smartphone
6
69008021080
clip nut M5
