Рама Оригинальные запчасти для мотоциклов KTM 2019 150 XC-W CHASSIS (2019)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

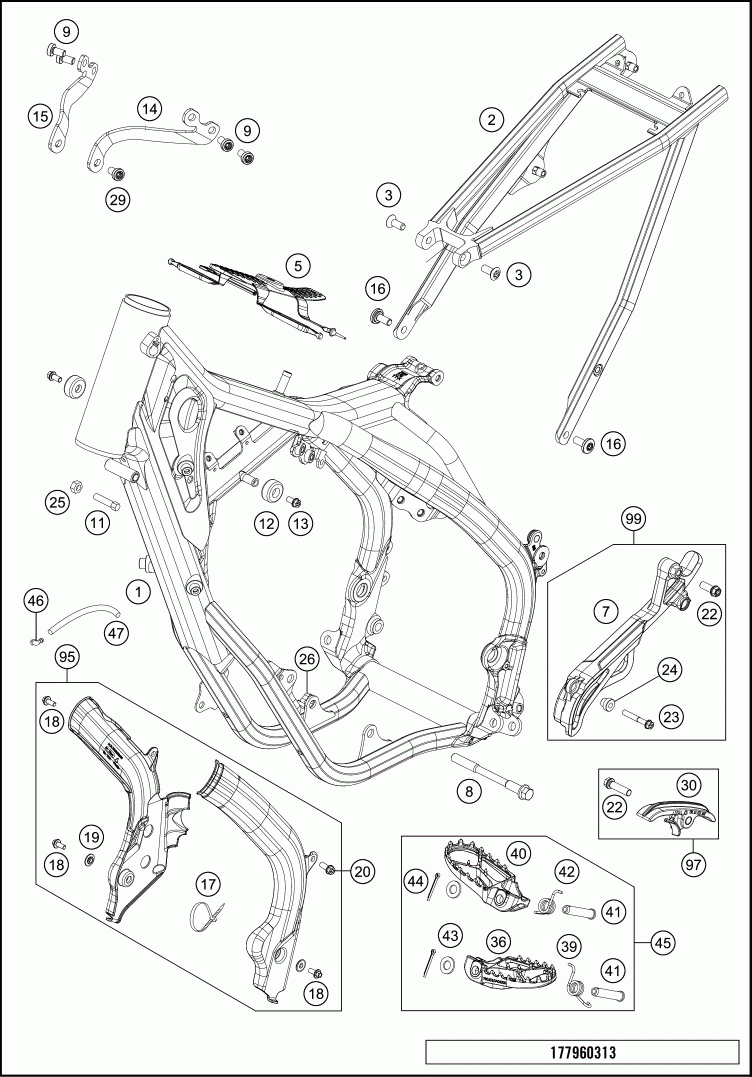

Рама

KTM 2019 150 XC-W CHASSIS

Рама

#

oem код

название

цена

1*

Frame 504Q2 elec. orange

Frame 504Q2 elec. orange

11

SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

13

COLLAR SCREW M6X13 ISA30

COLLAR SCREW M6X13 ISA30

14

MOTOR BRACKET LEFT

MOTOR BRACKET LEFT

15

MOTOR BRACKET RIGHT

MOTOR BRACKET RIGHT

16

SPECIAL SCREW M8X18 TORX45 SS

SPECIAL SCREW M8X18 TORX45 SS

17

CABLE TIE 140/2,5MM BLACK

CABLE TIE 140/2,5MM BLACK

17

CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

18

HH COLLAR SCREW M 5X12 WS=6

HH COLLAR SCREW M 5X12 WS=6

19

BUSH F . FRAME PROTECTION 03

BUSH F . FRAME PROTECTION 03

2

SUBFRAME 2016

SUBFRAME 2016

20

HH collar screw M6x12 TX30

HH collar screw M6x12 TX30

22

HH collar screw M8x30 TX40

HH collar screw M8x30 TX40

23

HH collar screw M6x40 TX30

HH collar screw M6x40 TX30

24

WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

25

HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

26

SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

29

SHCS M8x20 TX45

SHCS M8x20 TX45

3

FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

30

CHAIN SLIDER LOWER PART CPL.

CHAIN SLIDER LOWER PART CPL.

36

FOOTREST L/S EXC 2017

FOOTREST L/S EXC 2017

39

FOOTREST SPRING L/S 2016

FOOTREST SPRING L/S 2016

40

FOOTREST R/S EXC 2017

FOOTREST R/S EXC 2017

41

PIN FOR FOOT PED 51.5X9.8 MM

PIN FOR FOOT PED 51.5X9.8 MM

42

FOOTREST SPRING R/S 2016

FOOTREST SPRING R/S 2016

43

washer DIN 125 A 10.5

washer DIN 125 A 10.5

44

PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

45

FOOTREST-SET

FOOTREST-SET

46

ANGLE PIECE 90 DEGREE M10X1

ANGLE PIECE 90 DEGREE M10X1

47

PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

5

TANK REST RUBBER

TANK REST RUBBER

7

FRONT CHAIN GUARD 125

FRONT CHAIN GUARD 125

8

engine brac.scr. M10x115

engine brac.scr. M10x115

9

AH-COLLAR SCREW M8X15 TORX45

AH-COLLAR SCREW M8X15 TORX45

95*

FRAME PROTECTION SET ORANGE

FRAME PROTECTION SET ORANGE

97

CHAIN SLIDING KIT BELOW CPL.16

CHAIN SLIDING KIT BELOW CPL.16

99

SPROCKET COVER KIT

SPROCKET COVER KIT
