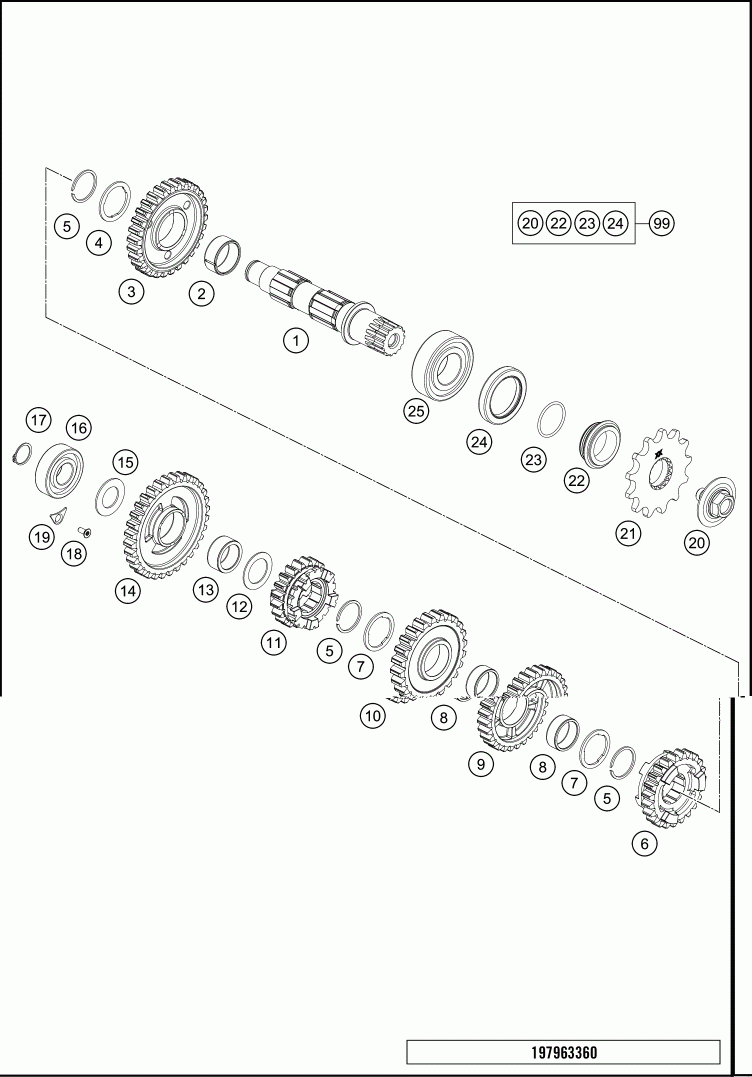

Трансмиссия 2-контрпривод

KTM 2019 250 XC-F ENGINE
KTM
#oem кодцена
1*
77733110100
Промежуточный вал
10*
77733113200
Idler gear, 3rd gear, teeth=24
11*
72033016100
Sliding gear, 6th gear, teeth=20
12
54833080000
STOP DISC 20,2X30X1
13
0405202612
NEEDLE BEARING K 20X26X12
14*
79133111000
Idler gear, 1st gear, teeth=32
15
77233020000
STOP DISK 17,2X30X1,3
16
0625062035
BALL BEARING 6203 JR2 C3
17
0471170015
CIRCLIP DIN 0471-17X1, 5
18*
0019050121S
INT. TORX FLAT HEAD M5X12 T25
19
75030085000
RETAINING PLATE F. CS BEARING
2
0405242812
NEDDLE BEAR. K24X28X11,9 DIV.
20
59033034044
SCREW 10.9+SPRING WASHER
21
79233129014
ENGINE SPROCKET 14Z
21
79233029013
SPROCKET 13T
22
78133014000
SPACER SLEEVE COUNTER
23
0770020220
O-RING 25,12X1,78 NBR70
24
0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
25
49030023000
cylindrical roller bearing NJ205
3*
77733112100
Idler gear, 2nd gear, teeth=30
4*
77733044000
STOP DISC 24X32X1,5
5
0417024000
CIRCLIP WS24
6*
77733115200
Sliding gear, 5th gear, teeth=23
7*
77733043000
STOP DISC 23,4X31X1,5
8
0405222611
NEEDLE BEAR.K 22X26X10 DIVIDED
99
00050000941
COUNTER SHAFT REP.KIT 4 STROKE
