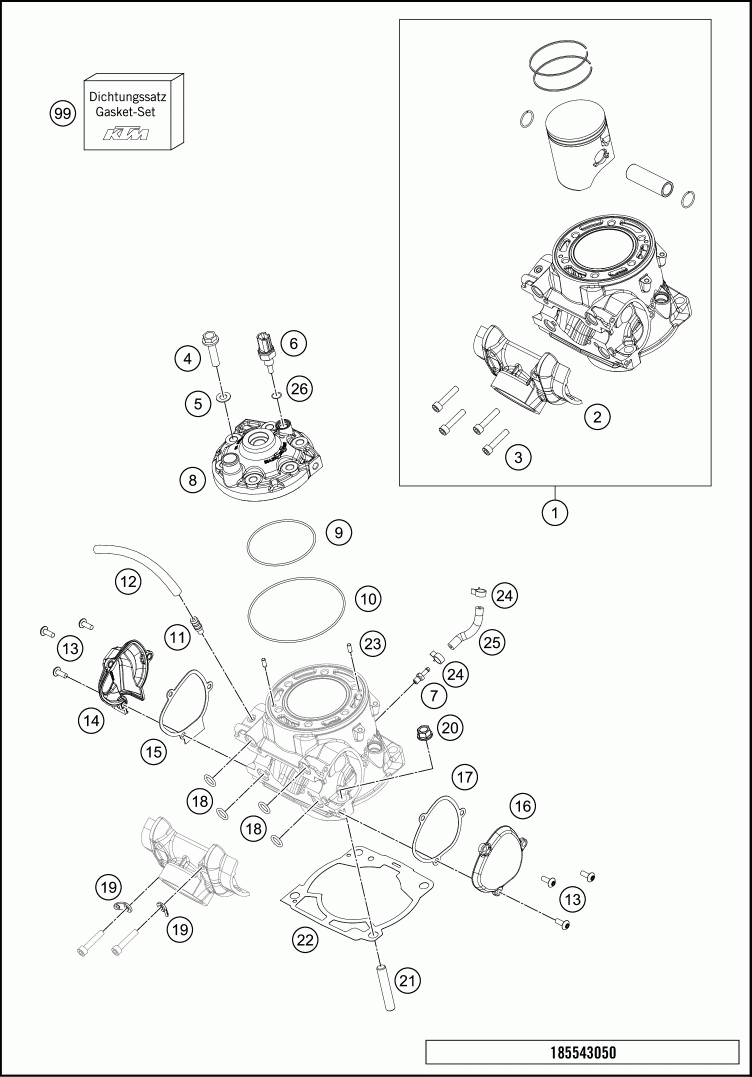

Цилиндр,головка цилиндров

KTM 2019 300 XC-W TPI ENGINE
KTM
#oem кодцена
1
55630038100
Cylinder + Piston cpl. 18
10
0770105020
O-ring 105x2
11
58336020090
VACUUM CONNECTION M 6X1
12
78015019000
HOSE EPA D=6/10 PER METER
13
58605083014
SCREW M5X14 TORX 25 07
14*
5483700710015
exhaust control cover rh
15
55537008000
GASKET FOR CONTROL COVER R/S
16
5483700500015
CONTROL COVER L/S 09
17
55537006000
GASKET FOR CONTROL COVER L/S
18
0770116241
O-RING 11,3 X2,4 SILICON
19
51005074000
RETAINING PLATE
2
55437001000
Connection Flange
20
54630044000
COLLAR NUT M10 WS=13
21
0835100353
STUD SCREW DIN0835-M10X35
22
55430030025
CYLINDER BASE GASKET
22
55430030020
CYLINDER BASE GASKET
22
55430030040
CYLINDER BASE GASKET
22
55430030050
CYLINDER BASE GASKET
22
55430030075
CYLINDER FOOT GASKET
23
0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
24
59007017000
CLAMP YDNAC 10096F (9,6MM)
25
61041095075
tube 3,2x9.0 L=75mm
26
0770100020
o-ring 10.00x2.00 silicone
3
0912060353
AH SCREW DIN0912-M 6X35
4
54830079000
COLLAR SCREW M 8X35 WS=13
5
56530080000
CU-SEAL RING 8 X 16 X 1
6
79435047000
water temperature sensor
7
55430023000
Vacuum connection
8*
55630106100
Cylinder head KTM 300 EXC
9
0770078020
O-RING 78,00X2,00 VIT. BLACK
99
55430097000
Gasket set piston 250/300
