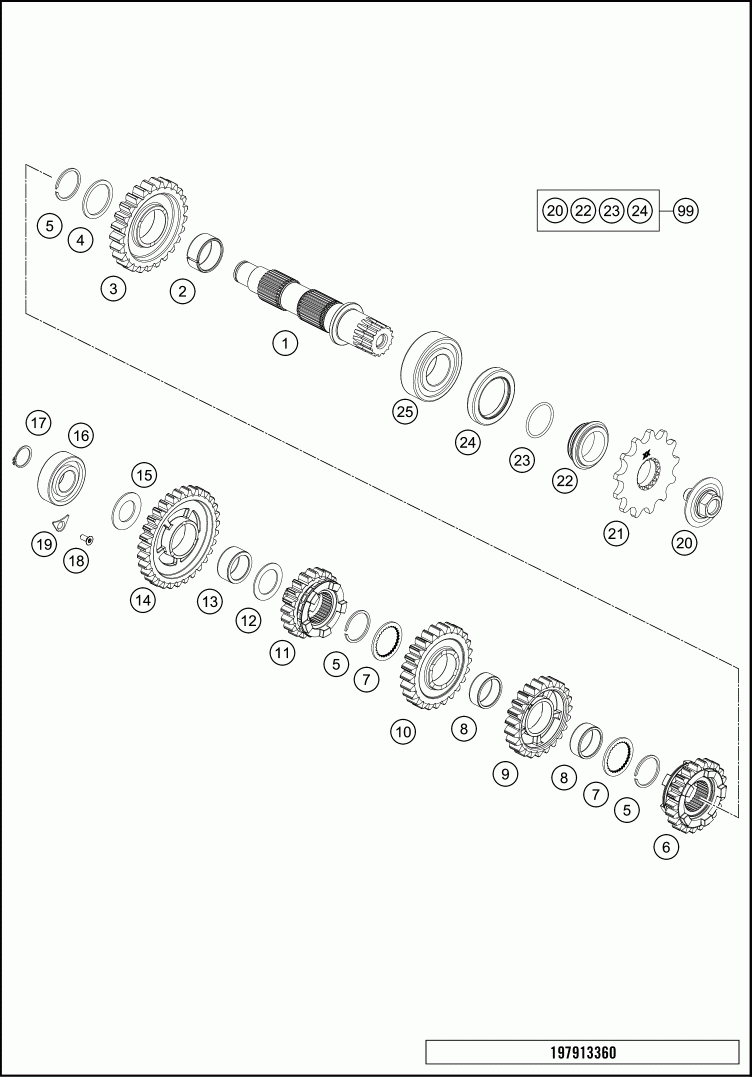

Трансмиссия 2-контрпривод

KTM 2019 350 XC-F ENGINE
KTM
#oem кодцена
1*
77233110100
Output shaft
10*
54833213100
Idler gear, 3rd gear, teeth=25
11*
79333116000
Sliding gear, 6th gear, teeth=20
12
54833080000
STOP DISC 20,2X30X1
13
0405202612
NEEDLE BEARING K 20X26X12
14*
54833311100
Idler gear, 1st gear, teeth=31
15
77233020000
STOP DISK 17,2X30X1,3
16
0625062035
BALL BEARING 6203 JR2 C3
17
0471170015
CIRCLIP DIN 0471-17X1, 5
18*
0019050121S
INT. TORX FLAT HEAD M5X12 T25
19
75030085000
RETAINING PLATE F. CS BEARING
2
0405242812
NEDDLE BEAR. K24X28X11,9 DIV.
20
59033034044
SCREW 10.9+SPRING WASHER
21
79233029013
SPROCKET 13T
21
79233029014
SPROCKET 14T
22
78133014000
SPACER SLEEVE COUNTER
23
0770020220
O-RING 25,12X1,78 NBR70
24
0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
25
49030023000
cylindrical roller bearing NJ205
3*
54833312100
Idler gear, 2nd gear, teeth=25
4
54833044000
STOP DISC 25X31X1,5
5
0417024000
CIRCLIP WS24
7
54833043000
STOP DISC 25X0,8X30X30X7H
8
0405222611
NEEDLE BEAR.K 22X26X10 DIVIDED
9*
54833214100
Idler gear, 4th gear, teeth=23
99
00050000941
COUNTER SHAFT REP.KIT 4 STROKE
