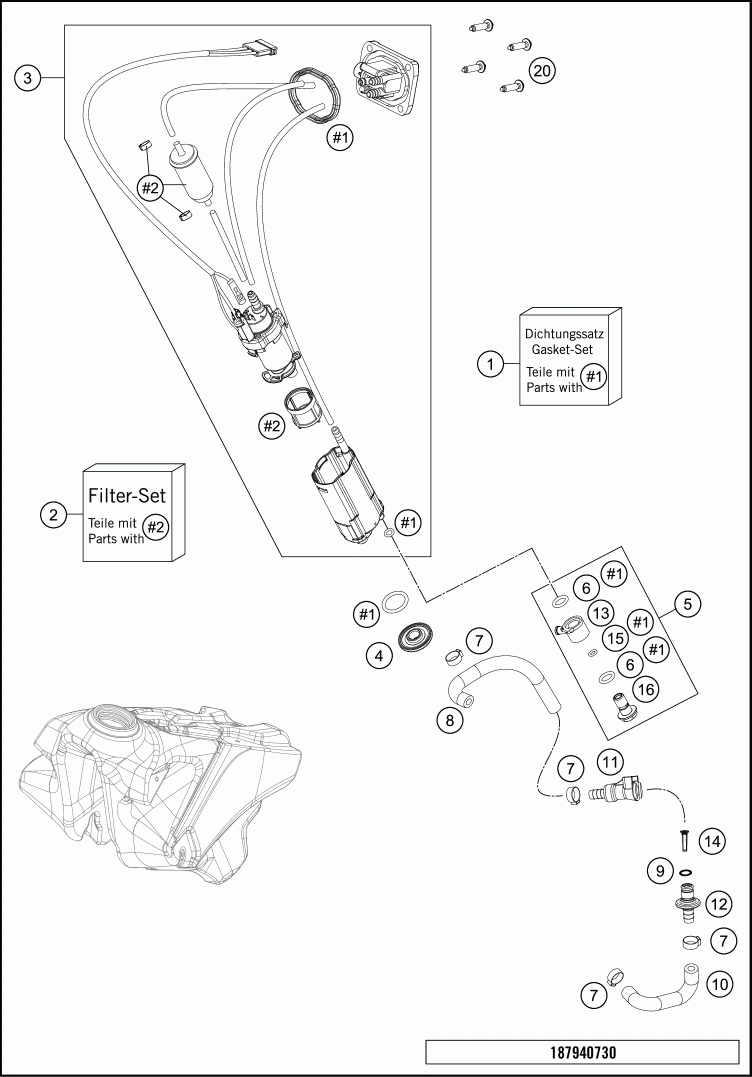

ТОПЛИВНЫЙ НАСОС

KTM 2019 450 SX-F FACTORY EDITION CHASSIS

ТОПЛИВНЫЙ НАСОС

#

oem код

название

цена

1

GASKET KIT

GASKET KIT

10

FUEL HOSE THROTTLE BODY

FUEL HOSE THROTTLE BODY

11

CLUTCH CPC BLACK 05

CLUTCH CPC BLACK 05

12

CONNECTOR FUEL PUMP

CONNECTOR FUEL PUMP

13

Angle piece fuel connector

Angle piece fuel connector

14

FUEL FILTER

FUEL FILTER

15

O-RING 6,00X2,00 NBR 70

O-RING 6,00X2,00 NBR 70

16

Connector for XPE-tank

Connector for XPE-tank

2

FILTER KIT

FILTER KIT

20

EJOT PT SCREW K60X25-Z SW6

EJOT PT SCREW K60X25-Z SW6

3

fuel pump

fuel pump

4

NUT F. FUEL PUMP M12

NUT F. FUEL PUMP M12

5

Fuel connection cmpl.

Fuel connection cmpl.

6

O-RING 12,5X3,00 NBR 70

O-RING 12,5X3,00 NBR 70

7

VARIABLE ONE-EAR CLAMP 15,7MM

VARIABLE ONE-EAR CLAMP 15,7MM

8

fuel hose cpl.

fuel hose cpl.

9

O-RING VITON F. PLUG CPC 05

O-RING VITON F. PLUG CPC 05
