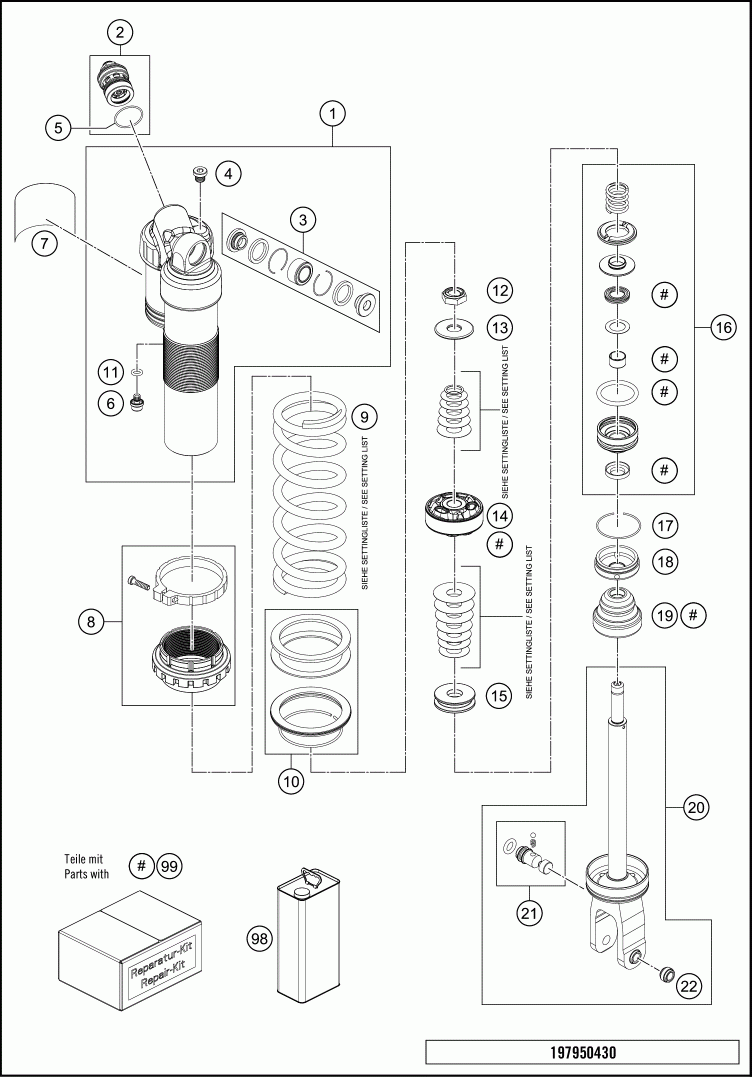

Амортизатор в разборе

KTM 2019 450 SX-F FACTORY EDITION CHASSIS
KTM
#oem кодцена
1*
50181144S3
Federbeingeh?use M57,5x1 h30,5 kpl.
10
50180824S
SPRING PLATE SET
11
46810893
O-ring 5,28x1,78 NBR70 black
12
50181207
Locking nut M12x1 h9 WAF19
13
50181092
Rebound disc 12x34x2 h0
14
50181255S1
Piston 12x50x20 cpl.
15
50181091
Rebound disc 12x43x12,5 h8
16
50180603SA
Sealholder 50x28 cpl.
17
50180126
Round-wire snap ring 53x1,75
18*
50181349
Cap 50,12x16 h6
19
50181100
Rubber pad 18x58x46 black
2*
50181101S45
Druckstufe kpl.
20
50181148S1
MONOSHOCK BOTTOM PART CPL.
21
50181094S
ADJUSTING SCREW M8X0,5 CPL.
22
46811205
Bush M10x12/15/13x9,5
3*
R15006
REPAIR KIT BEARINGS 07
4
50180095
HS cylinder-head screw R1/8 l8
5
50180218
O-ring 25x1,5 Viton70
6
36120151S
HS lock screw M5x6
7*
52000239
Aufkleber XACT 90x54
8*
50181347S
FedernhalterKunststoff kpl.
9
91210124S
SPRING 260 42 N/MM
9
91210100S
SPRING 260 45 N/MM
9
91210101S
SPRING 260 48 N/MM
98
50180751S1
SHOCK ABSORBER FLUID 5 LT
99
RP10019
Rebuild kit 5018 Link 2019
