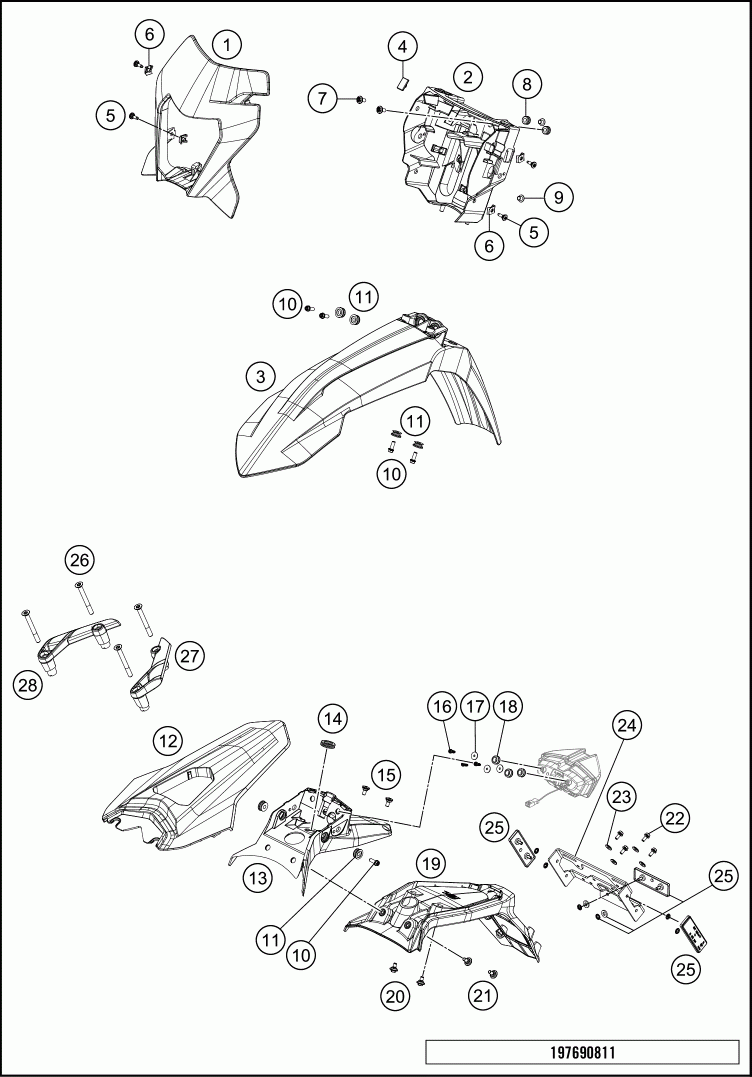

Обтекатель , крылья

KTM 2019 690 SMC-R CHASSIS
KTM
#oem кодцена
1*
76908001000C1
Headlight shroud
10
0025060166
HH collar screw M6x16 TX30
12*
76908013000C1
Rear fender
13*
76908015000
License plate holder, upper part
14
60006001023
RUBBER SLEEVE STOP SCREW
15
69008021040
special screw M6x14
16
0081240181
EJOT PT screw K40x18 T20
17
61041088050
SHIM 4,3X15X1,25MM GALVANIZED
18
60006001022
rubber grommet 9x11x16x8.5 mm
19*
76908016000
License plate holder, bottom part
2*
76914060000
Combination instrument, bracket
20*
83008000012
special screw M6x12x3
21*
83008000015
SPECIAL SCREW M6X15X3
22*
0019050121
COUNTERSUNK SCREW ISA25 M5X12
23
75008023000
WASHER REAR-UT D=14MM
24*
6411208100033
Retaining bracket side reflector black
25
58412080400
Rear reflector red
26
0019080756
COUNTERSUNK SCREW ISA45 M8X75
27*
76912008000
passenger handle bar left
28*
76912009000
passenger handle bar right
3*
79008010000EB
FRONT FENDER ORANGE 15
4
77307040041
Isolation pad
5
69008021060
special screw M5x17
6
54603048200
RANGE CHANGE METAL NUT M5
7
0024060156
HH collar screw M6x15 TX30
8
31008060000
rubber grommet D=8mm open
9
75014010050
COLLAR BUSHING 6,1X8,1X14X8 07
