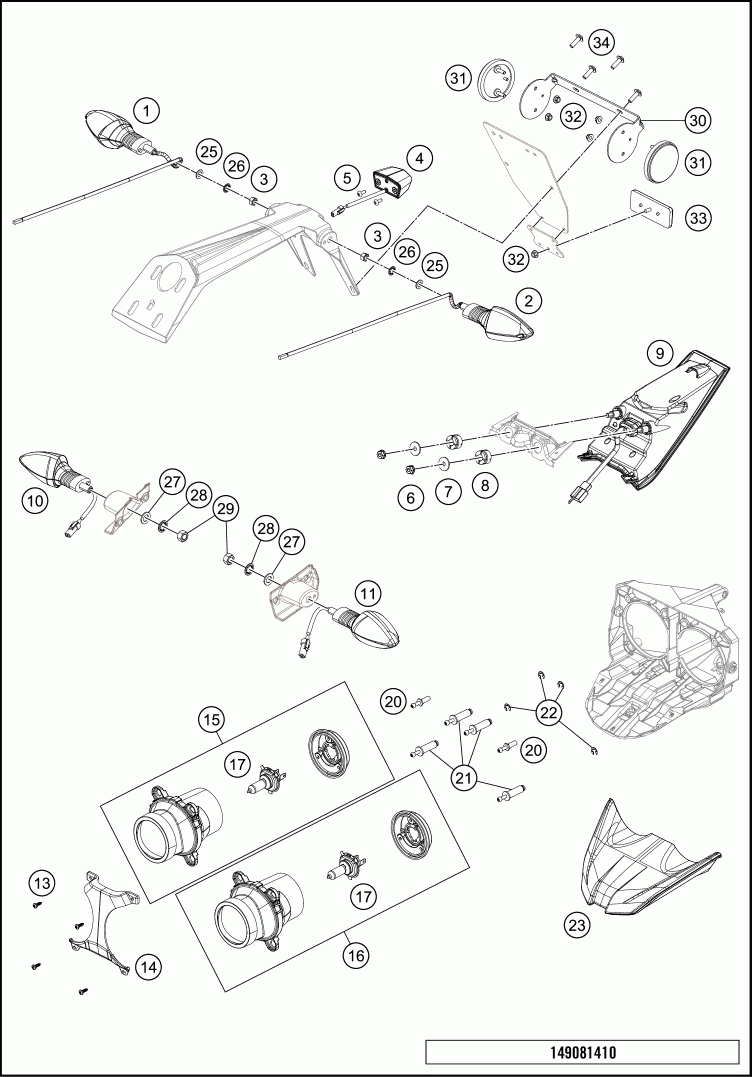

Фара

KTM 2019 RC 390 BLACK CHASSIS
KTM
#oem кодцена
1
90514526044
INDICATOR CPL. RR R/S USA
10
90514526000
LAMP SIGNAL FRONT R/S USA
11
90514525000
LAMP SIGNAL FRONT L/S USA
13
J981350133
SHEET MET.SCR. DIN 7981 3,5X13
14
90514007000
COVER POSITION LAMP
15
90514502044
HEADLIGHT HIGH BEAM
16
90514001100
HEADLIGHT LOW BEAM
17
90514003050
BULB H11 55W
2
90514525044
INDICATOR CPL. RR L/S USA
20
90514013010
FASTENING BOLT HEADLAMP
21
90514013020
ADJUSTING BOLT HEADLAMP
22
90514013030
CIRCLIP D=6
23
90514004000
LAMP PARKING LIGHT
25
J125100003
WASHER PLAIN 10,5
26
J797100003
TOOTHED WASHER M10
27
J125100003
WASHER PLAIN 10,5
28
J797100003
TOOTHED WASHER M10
29
90114030000
HEX NUT M10X1,25
3
90103038002
FLANGED NUT M10X1,25 WS14
30
90212581000
BRACKET SIDE REFLECTOR REAR
31
90212582000
SIDE REFLECTOR REAR
32
90204060001
HH COLLAR NUT
33
90514045000
Отражатель
34
90508006003
AH SCREW M6X1X20
4
90114047000
LICENSE PLATE ILLUMINATION
5
J981350133
SHEET MET.SCR. DIN 7981 3,5X13
6
J926060000
FLANGED NUT M6 WS10 SELF LOCK.
7
90814044000
PLAIN WASHER
8
90107013004
GROMMET TOP COVER
9
90814040000
REAR LIGHT CPL.
